Haier HL46XSL2 Service Manual

Also see for HL46XSL2: Owner's manual Owner's manual Troubleshooting guide Owner's manual Owner's manual

Haier HL46XSL2 Service Manual Manual pdf 23 page image

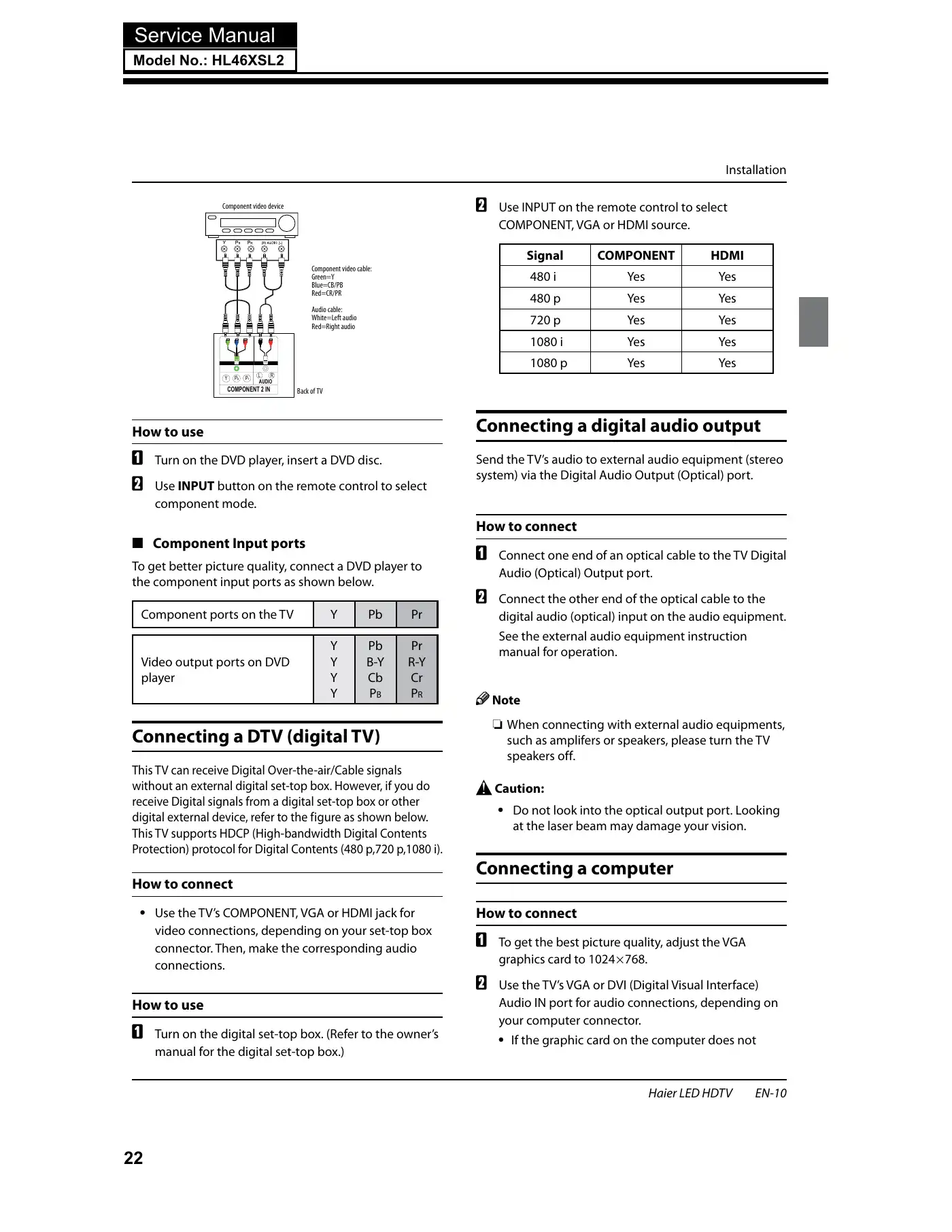

InstallationHaier LED HDTV EN-10Component video deviceComponent video cable:Green=YBlue=CB/PBRed=CR/PRAudio cable:White=Left audioRed=Right audioCOMPONENT 2 INY P b P r LAUDIORBack of TVHow to useTurn on the DVD player, insert a DVD disc.AUseB INPUT button on the remote control to selectcomponent mode.Component Input portsQTo get better picture quality, connect a DVD player tothe component input ports as shown below.Component ports on the TV Y Pb PrVideo output ports on DVDplayerYYYYPbB-YCbPBPrR-YCrPRConnecting a DTV (digital TV)This TV can receive Digital Over-the-air/Cable signalswithout an external digital set-top box. However, if you doreceive Digital signals from a digital set-top box or otherdigital external device, refer to the figure as shown below.This TV supports HDCP (High-bandwidth Digital ContentsProtection) protocol for Digital Contents (480 p,720 p,1080 i).How to connectUse the TV’s COMPONENT, VGA or HDMI jack forqvideo connections, depending on your set-top boxconnector. Then, make the corresponding audioconnections.How to useTurn on the digital set-top box. (Refer to the owner’sAmanual for the digital set-top box.)Use INPUT on the remote control to selectB COMPONENT, VGA or HDMI source.Signal COMPONENT HDMI480 i Yes Yes480 p Yes Yes720 p Yes Yes1080 i Yes Yes1080 p Yes YesConnecting a digital audio outputSend the TV’s audio to external audio equipment (stereosystem) via the Digital Audio Output (Optical) port.How to connectConnect one end of an optical cable to the TV DigitalAAudio (Optical) Output port.Connect the other end of the optical cable to theBdigital audio (optical) input on the audio equipment.See the external audio equipment instructionmanual for operation.NoteWhen connecting with external audio equipments,Rsuch as amplifers or speakers, please turn the TVspeakers off.! Caution:Do not look into the optical output port. Lookingqat the laser beam may damage your vision.Connecting a computerHow to connectTo get the best picture quality, adjust the VGAAgraphics card to 1024s768.Use the TV’s VGA or DVI (Digital Visual Interface)B Audio IN port for audio connections, depending onyour computer connector.If the graphic card on the computer does notqService ManualModel No.: HL46XSL222
