Haier HL46XSL2 Service Manual
Also see for HL46XSL2: Owner's manualOwner's manualTroubleshooting guideOwner's manualOwner's manual
Contents

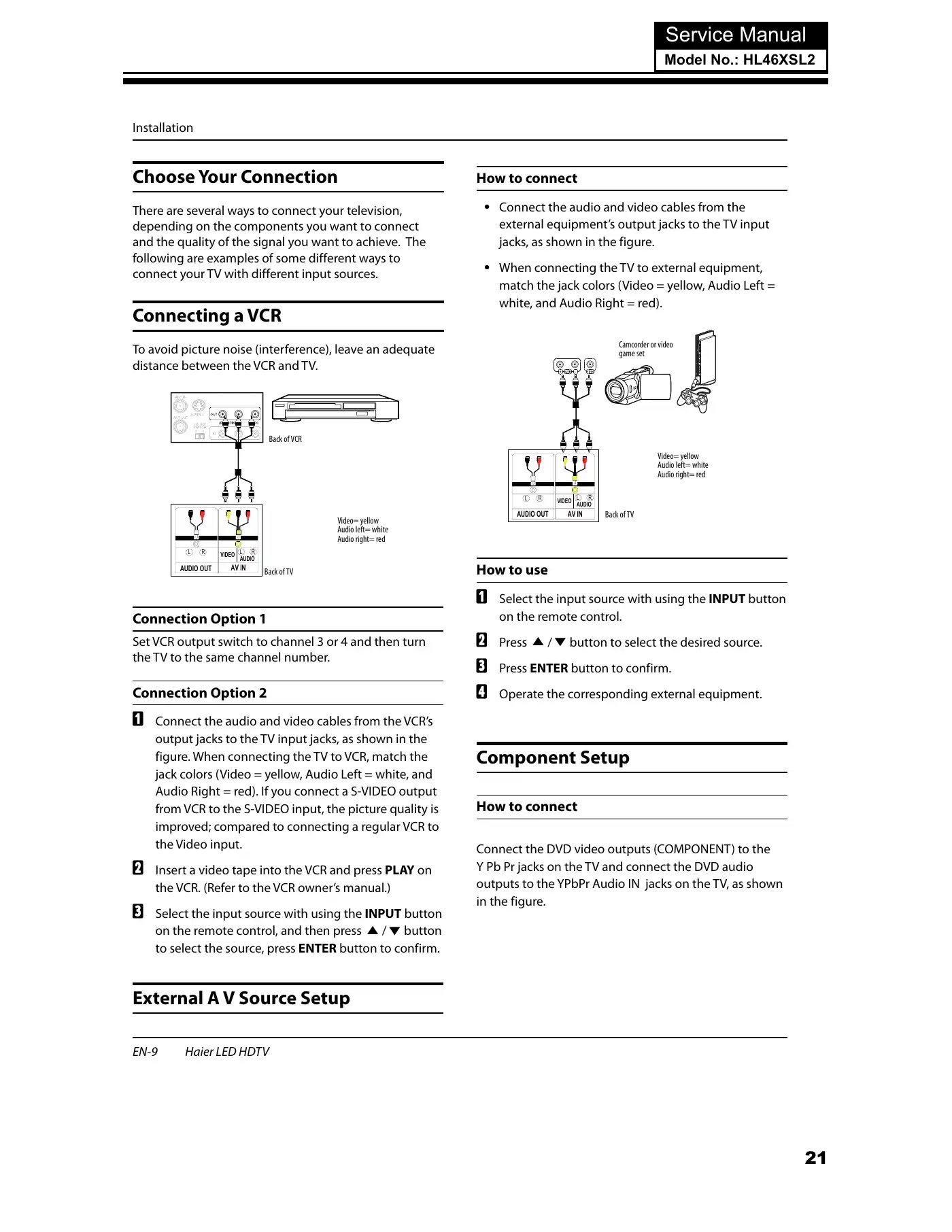

|  InstallationEN-9 Haier LED HDTVChoose Your ConnectionThere are several ways to connect your television,depending on the components you want to connectand the quality of the signal you want to achieve. Thefollowing are examples of some different ways toconnect your TV with different input sources.Connecting a VCRTo avoid picture noise (interference), leave an adequatedistance between the VCR and TV.How to connectConnect the audio and video cables from theqexternal equipment’s output jacks to the TV inputjacks, as shown in the figure.When connecting the TV to external equipment,qmatch the jack colors (Video = yellow, Audio Left =white, and Audio Right = red).AV INLVIDEO AUDIORAUDIO OUTL RCamcorder or videogame setVideo= yellowAudio left= whiteAudio right= redBack of TVHow to useSelect the input source with using theA INPUT buttonon the remote control.PressB /button to select the desired source.PressC ENTER button to confirm.Operate the corresponding external equipment.DComponent SetupHow to connectConnect the DVD video outputs (COMPONENT) to theY Pb Pr jacks on the TV and connect the DVD audiooutputs to the YPbPr Audio IN jacks on the TV, as shownin the figure.AV INLVIDEO AUDIORAUDIO OUTL RBack of VCRBack of TVVideo= yellowAudio left= whiteAudio right= redConnection Option 1Set VCR output switch to channel 3 or 4 and then turnthe TV to the same channel number.Connection Option 2Connect the audio and video cables from the VCR’sAoutput jacks to the TV input jacks, as shown in thefigure. When connecting the TV to VCR, match thejack colors (Video = yellow, Audio Left = white, andAudio Right = red). If you connect a S-VIDEO outputfrom VCR to the S-VIDEO input, the picture quality isimproved; compared to connecting a regular VCR tothe Video input.Insert a video tape into the VCR and pressB PLAY onthe VCR. (Refer to the VCR owner’s manual.)Select the input source with using theC INPUT buttonon the remote control, and then press /buttonto select the source, press ENTER button to confirm.External A V Source SetupService ManualModel No.: HL46XSL221 |
