Haier HL46XSL2 Service Manual Manual pdf 14 page image

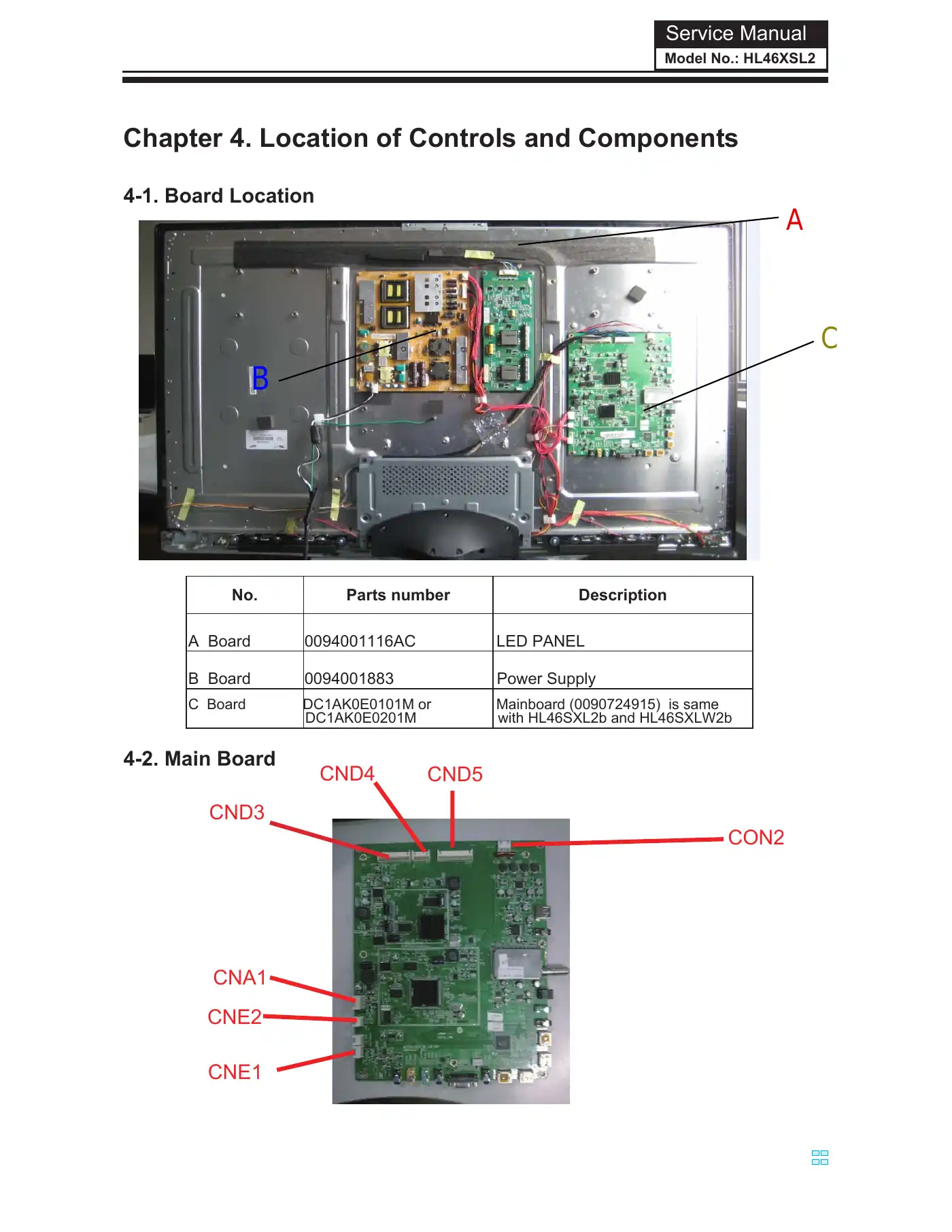

Chapter 4. Location of Controls and Components4-1. Board LocationNo. Parts number DescriptionA Board 0094001116AC LED PANELB Board 0094001883 Power SupplyC Board DC1AK0E0101M or Mainboard (0090724915) is same4-2. Main BoardService ManualModel No.: HL46XSL2CND4CND3CON2CNE2CNA1CND5CNE1ACBDC1AK0E0201M with HL46SXL2b and HL46SXLW2b
