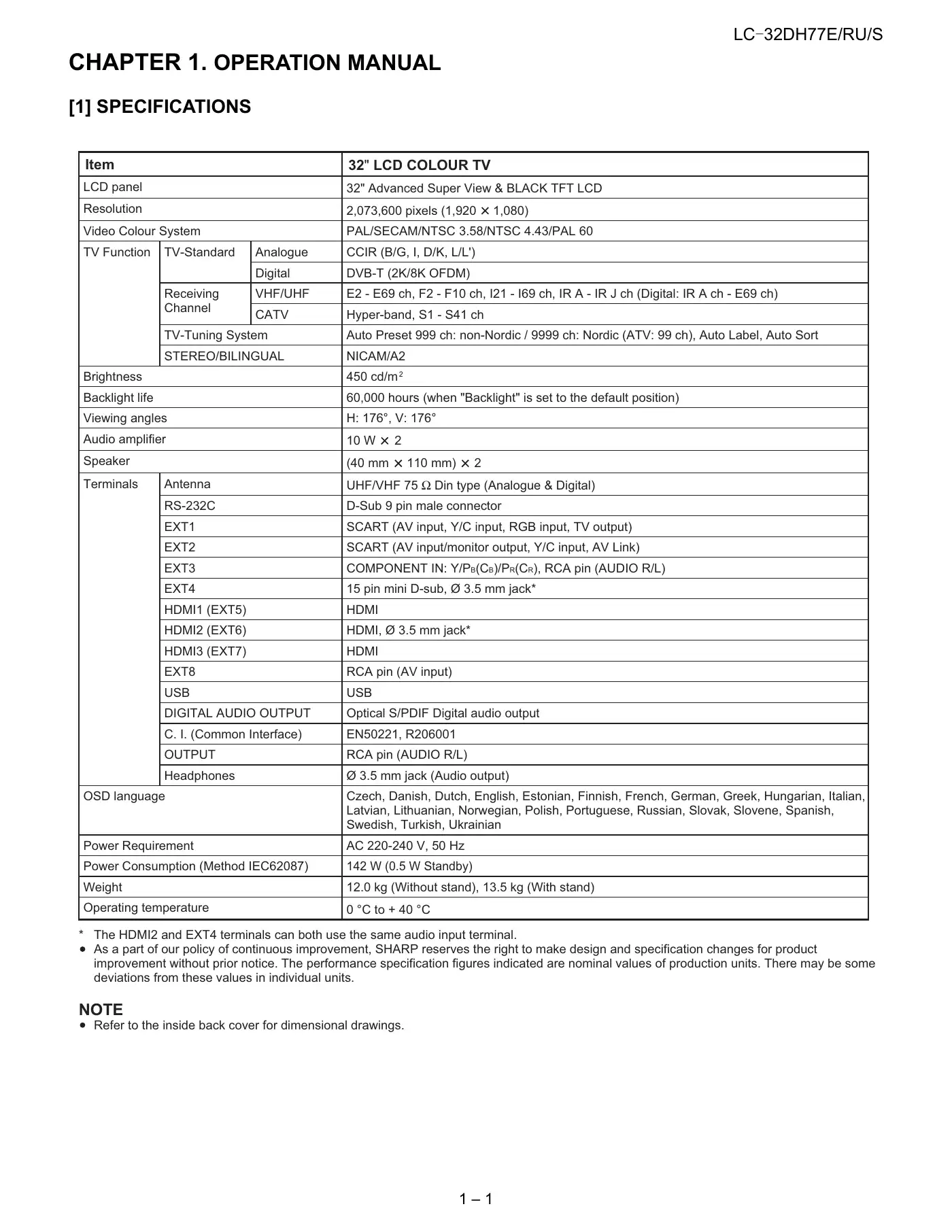

LC-32DH77E/RU/S1 – 1LC32DH77E Service ManualCHAPTER 1. OPERATION MANUAL[1] SPECIFICATIONSItem 32" LCD COLOUR TVLCD panel 32" Advanced Super View & BLACK TFT LCDResolution 2,073,600 pixels (1,920 1,080)Video Colour System PAL/SECAM/NTSC 3.58/NTSC 4.43/PAL 60TV Function TV-Standard Analogue CCIR (B/G, I, D/K, L/L')Digital DVB-T (2K/8K OFDM)ReceivingChannelVHF/UHF E2 - E69 ch, F2 - F10 ch, I21 - I69 ch, IR A - IR J ch (Digital: IR A ch - E69 ch)CATV Hyper-band, S1 - S41 chTV-Tuning System Auto Preset 999 ch: non-Nordic / 9999 ch: Nordic (ATV: 99 ch), Auto Label, Auto SortSTEREO/BILINGUAL NICAM/A2Brightness 450 cd/m 2Backlight life 60,000 hours (when "Backlight" is set to the default position)Viewing angles H: 176°, V: 176°Audio amplifier 10 W 2Speaker (40 mm 110 mm) 2Terminals Antenna UHF/VHF 75 Ω Din type (Analogue & Digital)RS-232C D-Sub 9 pin male connectorEXT1 SCART (AV input, Y/C input, RGB input, TV output)EXT2 SCART (AV input/monitor output, Y/C input, AV Link)EXT3 COMPONENT IN: Y/PB (C B )/P R (C R ), RCA pin (AUDIO R/L)EXT4 15 pin mini D-sub, Ø 3.5 mm jack*HDMI1 (EXT5) HDMIHDMI2 (EXT6) HDMI, Ø 3.5 mm jack*HDMI3 (EXT7) HDMIEXT8 RCA pin (AV input)USB USBDIGITAL AUDIO OUTPUT Optical S/PDIF Digital audio outputC. I. (Common Interface) EN50221, R206001OUTPUT RCA pin (AUDIO R/L)Headphones Ø 3.5 mm jack (Audio output)OSD language Czech, Danish, Dutch, English, Estonian, Finnish, French, German, Greek, Hungarian, Italian,Latvian, Lithuanian, Norwegian, Polish, Portuguese, Russian, Slovak, Slovene, Spanish,Swedish, Turkish, UkrainianPower Requirement AC 220-240 V, 50 HzPower Consumption (Method IEC62087) 142 W (0.5 W Standby)Weight 12.0 kg (Without stand), 13.5 kg (With stand)Operating temperature 0 °C to + 40 °CThe HDMI2 and EXT4 terminals can both use the same audio input terminal.As a part of our policy of continuous improvement, SHARP reserves the right to make design and specification changes for productimprovement without prior notice. The performance specification figures indicated are nominal values of production units. There may be somedeviations from these values in individual units.NOTERefer to the inside back cover for dimensional drawings.*
