Sharp 32BC1K Operating Instructions Quick Start Set Up Manual

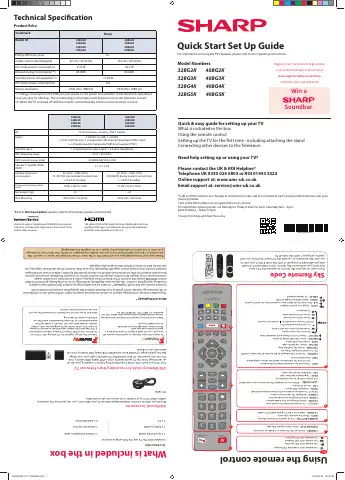

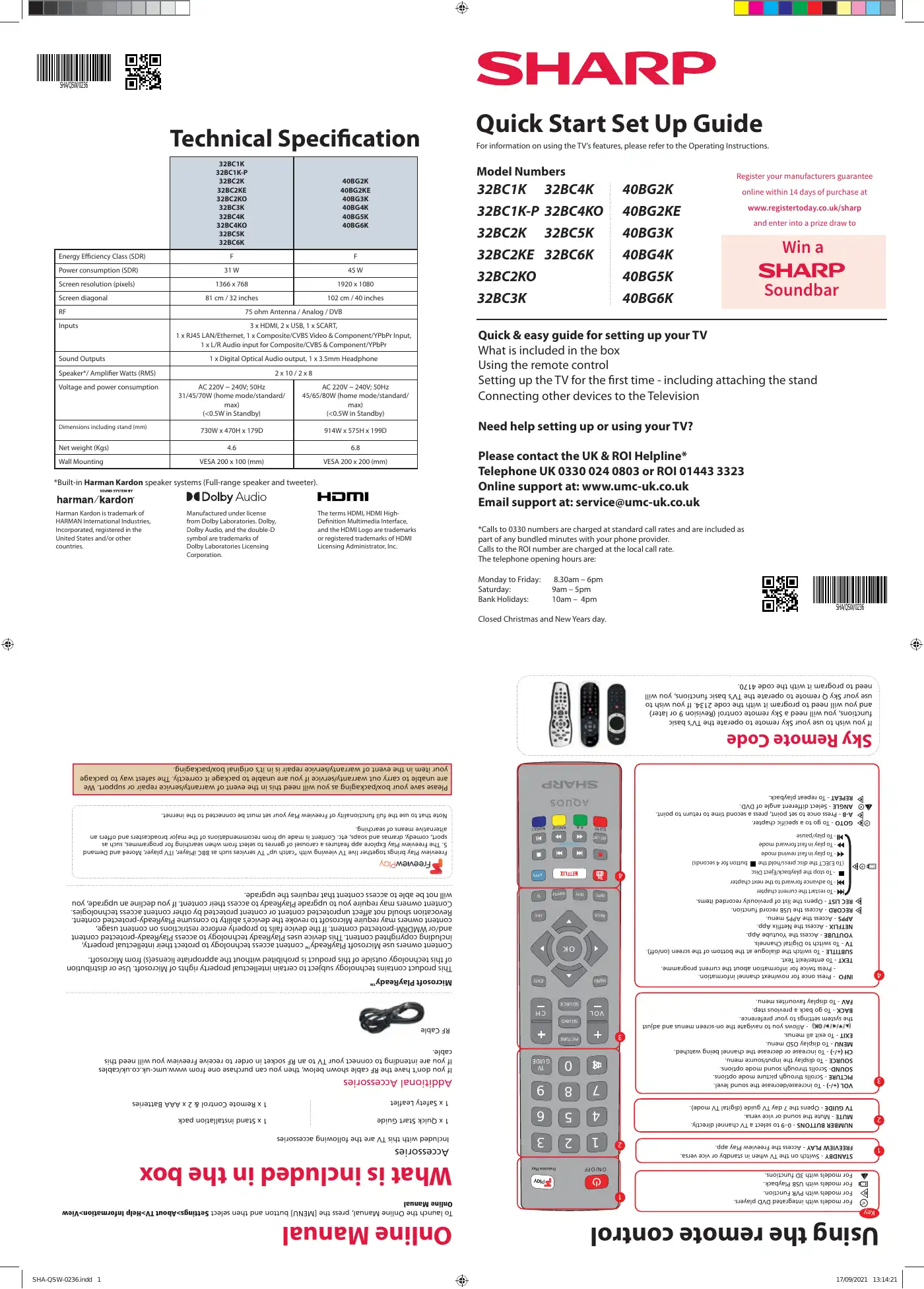

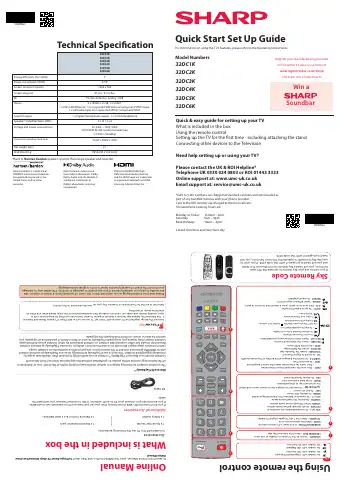

Quick & easy guide for setting up your TVWhat is included in the boxUsing the remote controlSetting up the TV for the first time - including attaching the standConnecting other devices to the TelevisionNeed help setting up or using your TV?Please contact the UK & ROI Helpline*Telephone UK 0330 024 0803 or ROI 01443 3323Online support at: www.umc-uk.co.ukEmail support at: service@umc-uk.co.uk*Calls to 0330 numbers are charged at standard call rates and are included aspart of any bundled minutes with your phone provider.Calls to the ROI number are charged at the local call rate.The telephone opening hours are:Monday to Friday: 8.30am – 6pmSaturday: 9am – 5pmBank Holidays: 10am – 4pmClosed Christmas and New Years day.Model Numbers32BC1K32BC1K-P32BC2K32BC2KE32BC2KO32BC3K32BC4K32BC4KO32BC5K32BC6KSHA/QSW/0236SHA/QSW/0236Quick Start Set Up GuideFor information on using the TV’s features, please refer to the Operating Instructions.Win aSoundbarRegister your manufacturers guaranteeonline within 14 days of purchase atwww.registertoday.co.uk/sharpand enter into a prize draw to32BC1K32BC1K-P32BC2K32BC2KE32BC2KO32BC3K32BC4K32BC4KO32BC5K32BC6K40BG2K40BG2KE40BG3K40BG4K40BG5K40BG6KEnergy Efficiency Class (SDR) F FPower consumption (SDR) 31 W 45 WScreen resolution (pixels) 1366 x 768 1920 x 1080Screen diagonal 81 cm / 32 inches 102 cm / 40 inchesRF 75 ohm Antenna / Analog / DVBInputs 3 x HDMI, 2 x USB, 1 x SCART,1 x RJ45 LAN/Ethernet, 1 x Composite/CVBS Video & Component/YPbPr Input,1 x L/R Audio input for Composite/CVBS & Component/YPbPrSound Outputs 1 x Digital Optical Audio output, 1 x 3.5mm HeadphoneSpeaker*/ Amplifier Watts (RMS) 2 x 10 / 2 x 8Voltage and power consumption AC 220V ~ 240V; 50Hz31/45/70W (home mode/standard/max)(<0.5W in Standby)AC 220V ~ 240V; 50Hz45/65/80W (home mode/standard/max)(<0.5W in Standby)Dimensions including stand (mm) 730W x 470H x 179D 914W x 575H x 199DNet weight (Kgs) 4.6 6.8Wall Mounting VESA 200 x 100 (mm) VESA 200 x 200 (mm)40BG2K40BG2KE40BG3K40BG4K40BG5K40BG6KPlease save your box/packaging as you will need this in the event of warranty/service repair or support. Weare unable to carry out warranty/service if you are unable to package it correctly. The safest way to packageyour item in the event of warranty/service repair is in it’s original box/packaging.AccessoriesIncluded with this TV are the following accessoriesWhat is included in the box1 x Quick Start Guide1 x Safety Leaflet 1 x Remote Control & 2 x AAA Batteries1 x Stand installation packRF CableAdditional AccessoriesIf you don’t have the RF cable shown below, then you can purchase one from www.umc-uk.co.uk/cablesIf you are intending to connect your TV to an RF socket in order to receive Freeview you will need thiscable.Freeview Play brings together live TV viewing with ‘‘catch up’’ TV services such as BBC iPlayer, ITV player, More4 and Demand5. The Freeview Play Explore app features a carousel of genres to select from when searching for programmes, such assport, comedy, dramas and soaps, etc. Content is made up from recommendations of the major broadcasters and offers analternative means of searching.Note that to use the full functionality of Freeview Play your set must be connected to the inernet.Sky Remote CodeIf you wish to use your Sky remote to operate the TV’s basicfunctions, you will need a Sky remote control (Revision 9 or later)and you will need to program it with the code 2134. If you wish touse your Sky Q remote to operate the TV’s basic functions, you willneed to program it with the code 4170.Using the remote control7 8 901 2 34 5 6TVGUIDEVOL CHSOURCESOUNDPICTUREON/OFFTEXTSUBTITLEINFOTVBACKFAVAPPSGOTOA-BANGLEREPEATREC LISTPVR/MEDIAEXITMENUOKFreeview Play1423STANDBY - Switch on the TV when in standby or vice versa.FREEVIEW PLAY - Access the Freeview Play app.NUMBER BUTTONS - 0–9 to select a TV channel directly.MUTE - Mute the sound or vice versa.TV GUIDE - Opens the 7 day TV guide (digital TV mode).VOL (+/-) - To increase/decrease the sound level.PICTURE - Scrolls through picture mode options.SOUND- Scrolls through sound mode options.SOURCE - To display the input/source menu.CH (+/-) - To increase or decrease the channel being watched.MENU - To display OSD menu.EXIT - To exit all menus.- Allows you to navigate the on-screen menus and adjustthe system settings to your preference.BACK - To go back a previous step.FAV - To display favourites menu.INFO - Press once for now/next channel information.- Press twice for information about the current programme.TEXT - To enter/exit Text.SUBTITLE - To switch the dialogue at the bottom of the screen (on/off).TV - To switch to Digital Channels.YOUTUBE - Access the Youtube App.NETFLIX - Access the Netflix App.APPS - Access the APPS menu.RECORD - Access the USB record function.REC LIST - Opens the list of previously recorded items.GOTO - To go to a specific chapter.A-B - Press once to set point, press a second time to return to point.ANGLE - Select different angle of DVD.REPEAT - To repeat playback.- To restart the current chapter- To advance forward to the next chapter- To stop the playback/Eject Disc(To EJECT the disc press/hold the button for 4 seconds)- To play in fast rewind mode- To play in fast forward mode- To play/pauseKey321For models with integrated DVD players.For models with PVR Function.For models with USB Playback.For models with 3D functions.4Online ManualMicrosoft PlayReady™This product contains technology subject to certain intellectual property rights of Microsoft. Use or distributionof this technology outside of this product is prohibited without the appropriate license(s) from Microsoft.Content owners use Microsoft PlayReady™ content access technology to protect their intellectual property,including copyrighted content. This device uses PlayReady technology to access PlayReady-protected contentand/or WMDRM-protected content. If the device fails to properly enforce restrictions on content usage,content owners may require Microsoft to revoke the device’s ability to consume PlayReady-protected content.Revocation should not affect unprotected content or content protected by other content access technologies.Content owners may require you to upgrade PlayReady to access their content. If you decline an upgrade, youwill not be able to access content that requires the upgrade.To launch the Online Manual, press the [MENU] button and then select Settings>About TV>Help Information>ViewOnline ManualTechnical Specification*Built-in Harman Kardon speaker systems (Full-range speaker and tweeter).Harman Kardon is trademark ofHARMAN International Industries,Incorporated, registered in theUnited States and/or othercountries.The terms HDMI, HDMI High-Definition Multimedia Interface,and the HDMI Logo are trademarksor registered trademarks of HDMILicensing Administrator, Inc.Manufactured under licensefrom Dolby Laboratories. Dolby,Dolby Audio, and the double-Dsymbol are trademarks ofDolby Laboratories LicensingCorporation.

/ 2
