Sharp 32BC1KE Quick Start Setup Manual

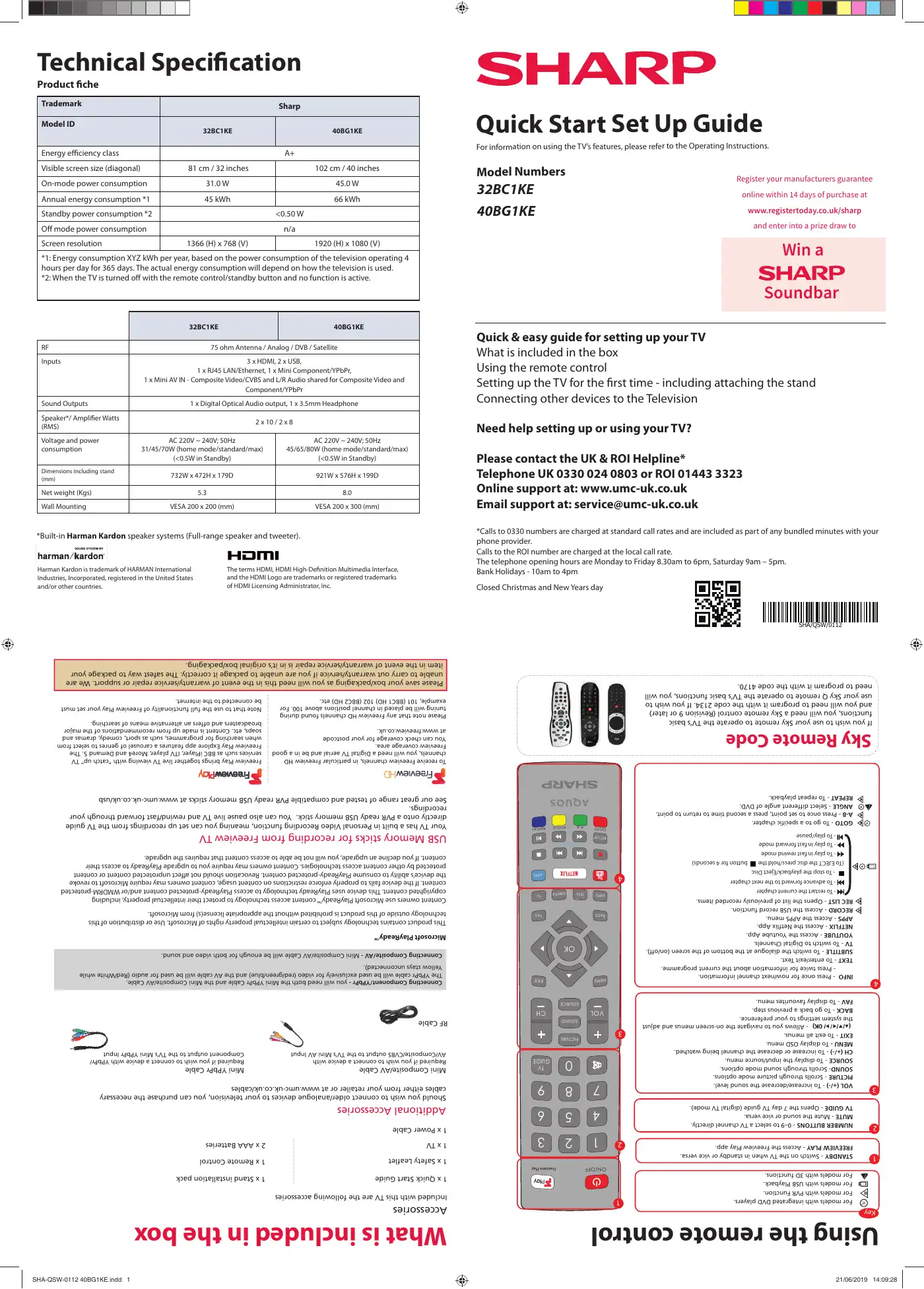

Quick Start Set Up GuideFor information on using the TV’s features, please refer to the Operating Instructions.Quick & easy guide for setting up your TVWhat is included in the boxUsing the remote controlSetting up the TV for the first time - including attaching the standConnecting other devices to the TelevisionNeed help setting up or using your TV?Please contact the UK & ROI Helpline*Telephone UK 0330 024 0803 or ROI 01443 3323Online support at: www.umc-uk.co.ukEmail support at: service@umc-uk.co.uk*Calls to 0330 numbers are charged at standard call rates and are included as part of any bundled minutes with yourphone provider.Calls to the ROI number are charged at the local call rate.The telephone opening hours are Monday to Friday 8.30am to 6pm, Saturday 9am – 5pm.Bank Holidays - 10am to 4pmClosed Christmas and New Years dayModel Numbers32BC1KE40BG1KETrademark SharpModel ID 32BC1KE 40BG1KEEnergy efficiency class A+Visible screen size (diagonal) 81 cm / 32 inches 102 cm / 40 inchesOn-mode power consumption 31.0 W 45.0 WAnnual energy consumption *1 45 kWh 66 kWhStandby power consumption *2 <0.50 WOff mode power consumption n/aScreen resolution 1366 (H) x 768 (V) 1920 (H) x 1080 (V)*1: Energy consumption XYZ kWh per year, based on the power consumption of the television operating 4hours per day for 365 days. The actual energy consumption will depend on how the television is used.*2: When the TV is turned off with the remote control/standby button and no function is active.Product fiche32BC1KE 40BG1KERF 75 ohm Antenna / Analog / DVB / SatelliteInputs 3 x HDMI, 2 x USB,1 x RJ45 LAN/Ethernet, 1 x Mini Component/YPbPr,1 x Mini AV IN - Composite Video/CVBS and L/R Audio shared for Composite Video andComponent/YPbPrSound Outputs 1 x Digital Optical Audio output, 1 x 3.5mm HeadphoneSpeaker*/ Amplifier Watts(RMS) 2 x 10 / 2 x 8Voltage and powerconsumptionAC 220V ~ 240V; 50Hz31/45/70W (home mode/standard/max)(<0.5W in Standby)AC 220V ~ 240V; 50Hz45/65/80W (home mode/standard/max)(<0.5W in Standby)Dimensions including stand(mm) 732W x 472H x 179D 921W x 576H x 199DNet weight (Kgs) 5.3 8.0Wall Mounting VESA 200 x 200 (mm) VESA 200 x 300 (mm)*Built-in Harman Kardon speaker systems (Full-range speaker and tweeter).Win aSoundbarRegister your manufacturers guaranteeonline within 14 days of purchase atwww.registertoday.co.uk/sharpand enter into a prize draw toSHA/QSW/0112Harman Kardon is trademark of HARMAN InternationalIndustries, Incorporated, registered in the United Statesand/or other countries.The terms HDMI, HDMI High-Definition Multimedia Interface,and the HDMI Logo are trademarks or registered trademarksof HDMI Licensing Administrator, Inc.Technical SpecificationPlease save your box/packaging as you will need this in the event of warranty/service repair or support. We areunable to carry out warranty/service if you are unable to package it correctly. The safest way to package youritem in the event of warranty/service repair is in it’s original box/packaging.AccessoriesIncluded with this TV are the following accessoriesWhat is included in the box1 x Quick Start Guide1 x Safety Leaflet 1 x Remote Control1 x Stand installation pack2 x AAA BatteriesRF CableAdditional AccessoriesShould you wish to connect older/analogue devices to your television, you can purchase the necessarycables either from your retailer or at www.umc-uk.co.uk/cablesUSB Memory sticks for recording from Freeview TVYour TV has a built in Personal Video Recording function, meaning you can set up recordings from the TV guidedirectly onto a PVR ready USB memory stick. You can also pause live TV and rewind/fast forward through yourrecordings.See our great range of tested and compatible PVR ready USB memory sticks at www.umc-uk.co.uk/usb1 x TVFreeview Play brings together live TV viewing with ‘‘catch up’’ TVservices such as BBC iPlayer, ITV player, More4 and Demand 5. TheFreeview Play Explore app features a carousel of genres to select fromwhen searching for programmes, such as sport, comedy, dramas andsoaps, etc. Content is made up from recommendations of the majorbroadcasters and offers an alternative means of searching.Note that to use the full functionality of Freeview Play your set mustbe connected to the internet.To receive Freeview channels, in particular Freeview HDchannels, you will need a Digital TV aerial and be in a goodFreeview coverage area.You can check coverage for your postcodeat www.freeview.co.uk.Please note that any Freeview HD channels found duringtuning will be placed in channel positions above 100. Forexample, 101 (BBC1 HD) 102 (BBC2 HD) etc.Sky Remote CodeIf you wish to use your Sky remote to operate the TV’s basicfunctions, you will need a Sky remote control (Revision 9 or later)and you will need to program it with the code 2134. If you wish touse your Sky Q remote to operate the TV’s basic functions, you willneed to program it with the code 4170.Using the remote control7 8 901 2 34 5 6TVGUIDEVOL CHSOURCESOUNDPICTUREON/OFFTEXTSUBTITLEINFOTVBACKFAVAPPSGOTOA-BANGLEREPEATREC LISTPVR/MEDIAEXITMENUOKFreeview Play1423STANDBY - Switch on the TV when in standby or vice versa.FREEVIEW PLAY - Access the Freeview Play app.NUMBER BUTTONS - 0–9 to select a TV channel directly.MUTE - Mute the sound or vice versa.TV GUIDE - Opens the 7 day TV guide (digital TV mode).VOL (+/-) - To increase/decrease the sound level.PICTURE - Scrolls through picture mode options.SOUND- Scrolls through sound mode options.SOURCE - To display the input/source menu.CH (+/-) - To increase or decrease the channel being watched.MENU - To display OSD menu.EXIT - To exit all menus.- Allows you to navigate the on-screen menus and adjustthe system settings to your preference.BACK - To go back a previous step.FAV - To display favourites menu.INFO - Press once for now/next channel information.- Press twice for information about the current programme.TEXT - To enter/exit Text.SUBTITLE - To switch the dialogue at the bottom of the screen (on/off).TV - To switch to Digital Channels.YOUTUBE - Access the Youtube App.NETFLIX - Access the Netflix App.APPS - Access the APPS menu.RECORD - Access the USB record function.REC LIST - Opens the list of previously recorded items.GOTO - To go to a specific chapter.A-B - Press once to set point, press a second time to return to point.ANGLE - Select different angle of DVD.REPEAT - To repeat playback.- To restart the current chapter- To advance forward to the next chapter- To stop the playback/Eject Disc(To EJECT the disc press/hold the button for 4 seconds)- To play in fast rewind mode- To play in fast forward mode- To play/pauseKey321For models with integrated DVD players.For models with PVR Function.For models with USB Playback.For models with 3D functions.41 x Power CableMini Composite/AV CableRequired if you wish to connect a device withAV/Composite/CVBS output to the TV’s Mini AV InputMini YPbPr CableRequired if you wish to connect a device with YPbPr/Component output to the TV’s Mini YPbPr InputbPr/Connecting Component/YPbPr - you will need both the Mini YPbPr Cable and the Mini Composite/AV Cable.The YPbPr cable will be used exclusively for video (red/green/blue) and the AV cable will be used for audio (Red/White whileYellow stays unconnected).Connecting Composite/AV - Mini Composite/AV Cable will be enough for both video and sound.Microsoft PlayReady™This product contains technology subject to certain intellectual property rights of Microsoft. Use or distribution of thistechnology outside of this product is prohibited without the appropriate license(s) from Microsoft.Content owners use Microsoft PlayReady™ content access technology to protect their intellectual property, includingcopyrighted content. This device uses PlayReady technology to access PlayReady-protected content and/or WMDRM-protectedcontent. If the device fails to properly enforce restrictions on content usage, content owners may require Microsoft to revokethe device’s ability to consume PlayReady-protected content. Revocation should not affect unprotected content or contentprotected by other content access technologies. Content owners may require you to upgrade PlayReady to access theircontent. If you decline an upgrade, you will not be able to access content that requires the upgrade.

/ 2
