Haier LT19Z6 Service Manual
Haier LT19Z6 Service Manual
Also see for LT19Z6:
User manual
User manual
User manual
Service manual
Table of content
Contents
Important Safety Notice
Revision List
General Specification
Operating Instructions
How to Connect
Front Panel Control Knobs
Input/Output Specification
signal type
Mechanical Instructions
Repair Flow Chart
PCB Layout
Power Board
Key Board
Adjustment
Block Diagram
Wiring Diagram
Schematic Diagram
IR Board
53

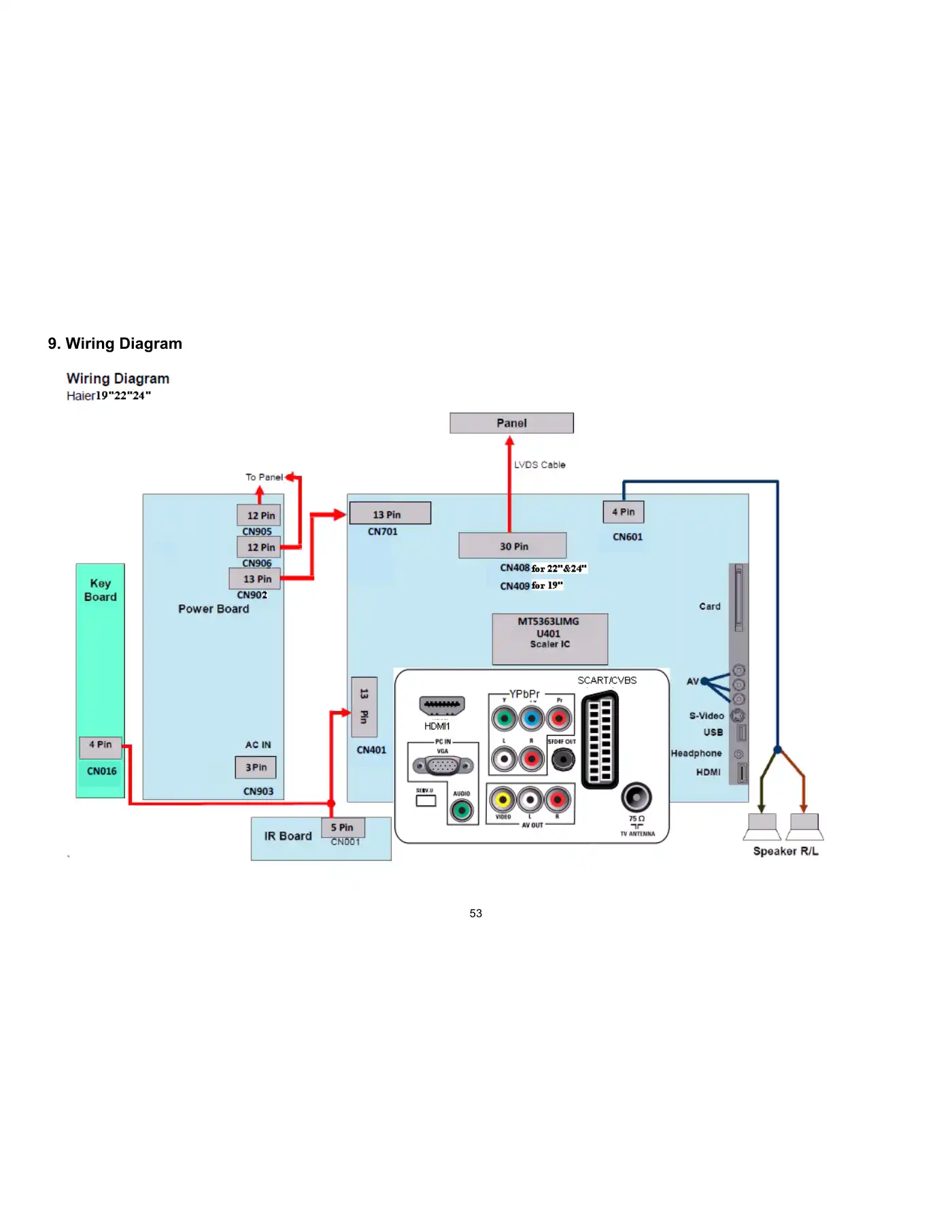

9. Wiring Diagram
