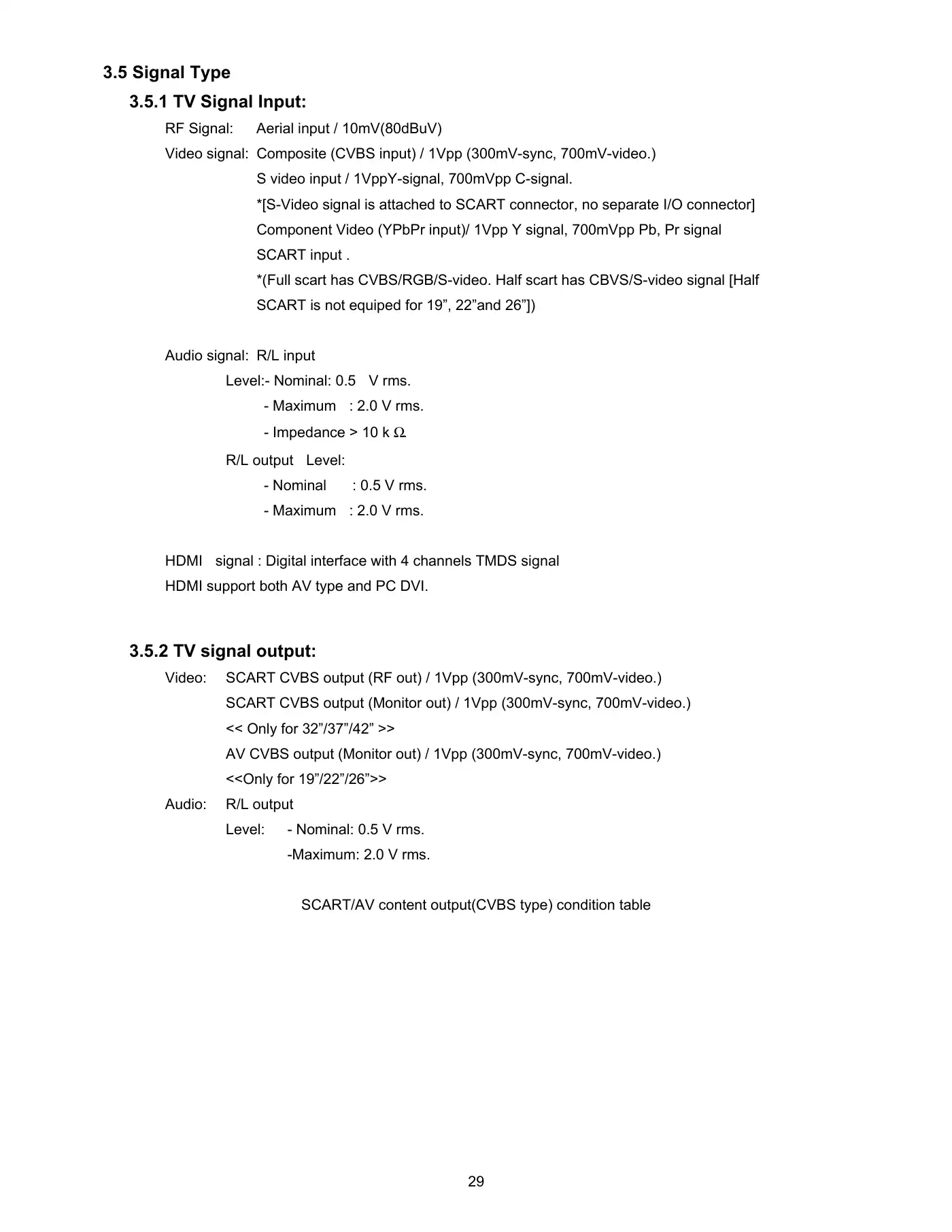

293.5 Signal Type3.5.1 TV Signal Input:RF Signal: Aerial input / 10mV(80dBuV)Video signal: Composite (CVBS input) / 1Vpp (300mV-sync, 700mV-video.)S video input / 1VppY-signal, 700mVpp C-signal.*[S-Video signal is attached to SCART connector, no separate I/O connector]Component Video (YPbPr input)/ 1Vpp Y signal, 700mVpp Pb, Pr signalSCART input .*(Full scart has CVBS/RGB/S-video. Half scart has CBVS/S-video signal [HalfSCART is not equiped for 19”, 22”and 26”])Audio signal: R/L inputLevel:- Nominal: 0.5 V rms.- Maximum : 2.0 V rms.- Impedance > 10 k Ω.R/L output Level:- Nominal : 0.5 V rms.- Maximum : 2.0 V rms.HDMI signal : Digital interface with 4 channels TMDS signalHDMI support both AV type and PC DVI.3.5.2 TV signal output:Video: SCART CVBS output (RF out) / 1Vpp (300mV-sync, 700mV-video.)SCART CVBS output (Monitor out) / 1Vpp (300mV-sync, 700mV-video.)<< Only for 32”/37”/42” >>AV CVBS output (Monitor out) / 1Vpp (300mV-sync, 700mV-video.)<>Audio: R/L outputLevel: - Nominal: 0.5 V rms.-Maximum: 2.0 V rms.SCART/AV content output(CVBS type) condition table

/ 76
