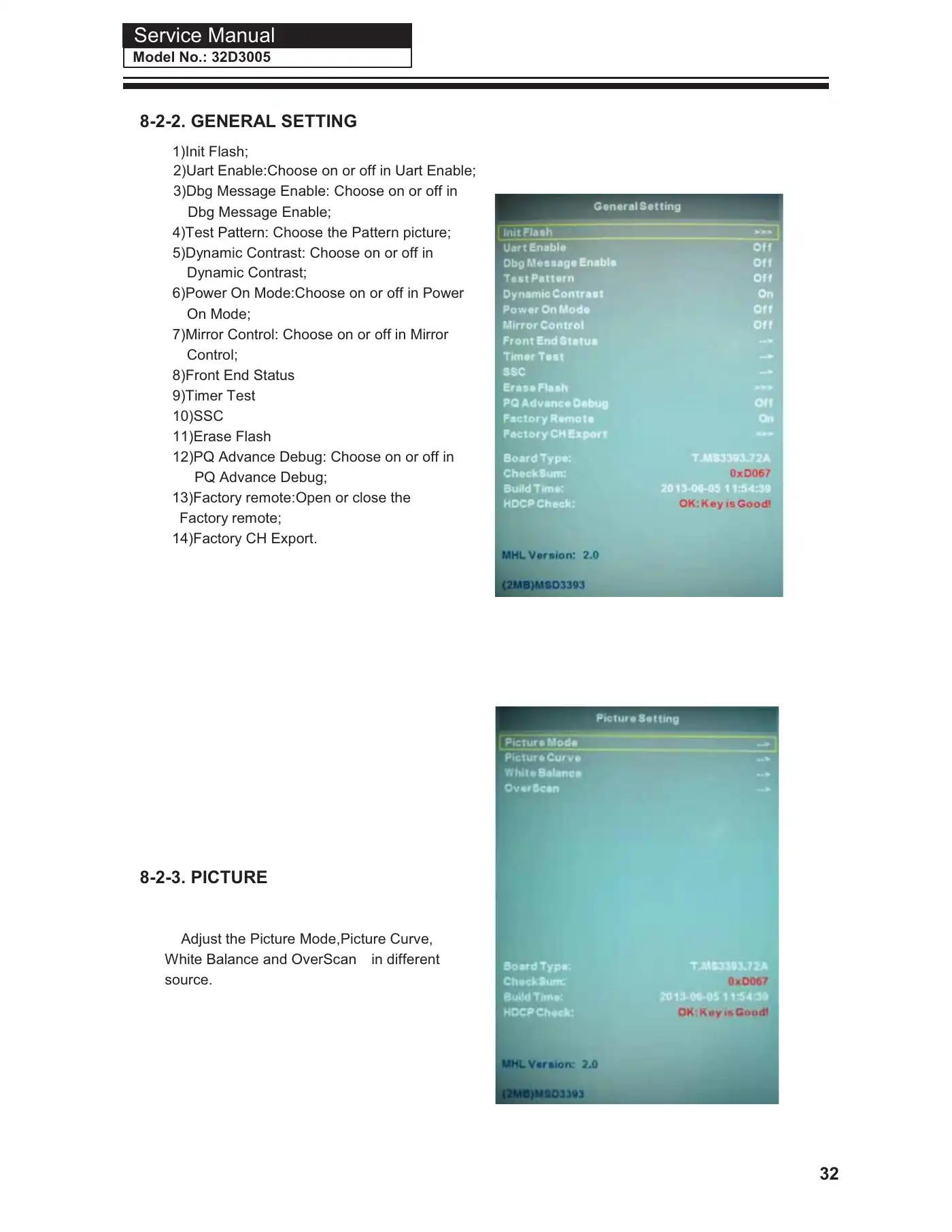

Service ManualModel No.: 32D30058-2-2. GENERAL SETTING1)Init Flash;2)Uart Enable:Choose on or off in Uart Enable;3)Dbg Message Enable: Choose on or off inDbg Message Enable;4)Test Pattern: Choose the Pattern picture;5)Dynamic Contrast: Choose on or off inDynamic Contrast;6)Power On Mode:Choose on or off in PowerOn Mode;7)Mirror Control: Choose on or off in MirrorControl;8)Front End Status9)Timer Test10)SSC11)Erase Flash12)PQ Advance Debug: Choose on or off inPQ Advance Debug;13)Factory remote:Open or close theFactory remote;14)Factory CH Export.8-2-3. PICTUREAdjust the Picture Mode,Picture Curve,White Balance and OverScan in differentsource.32
