Haier 32D3005 Service Manual Manual pdf 22 page image

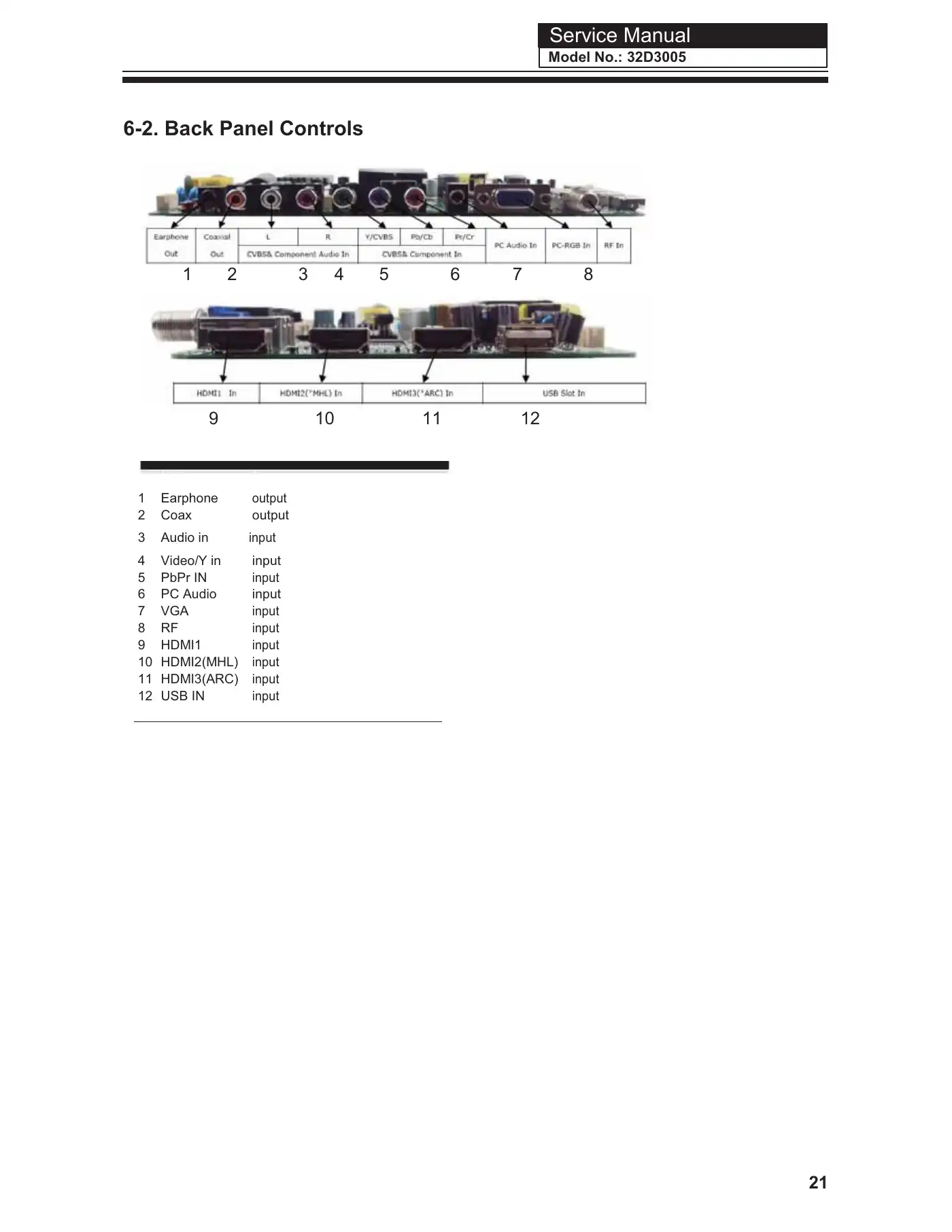

9 10 11 121 2 3 4 5 6 7 8Service ManualModel No.: 32D30056-2. Back Panel Controls211 Earphone output2 Coax output3 Audio in input4 Video/Y in input5 PbPr IN input6 PC Audio input7 VGA input8 RF input9 HDMI1 input10 HDMI2(MHL) input11 HDMI3(ARC) input12 USB IN input
