Haier 10506358 Installation Manual

Contents

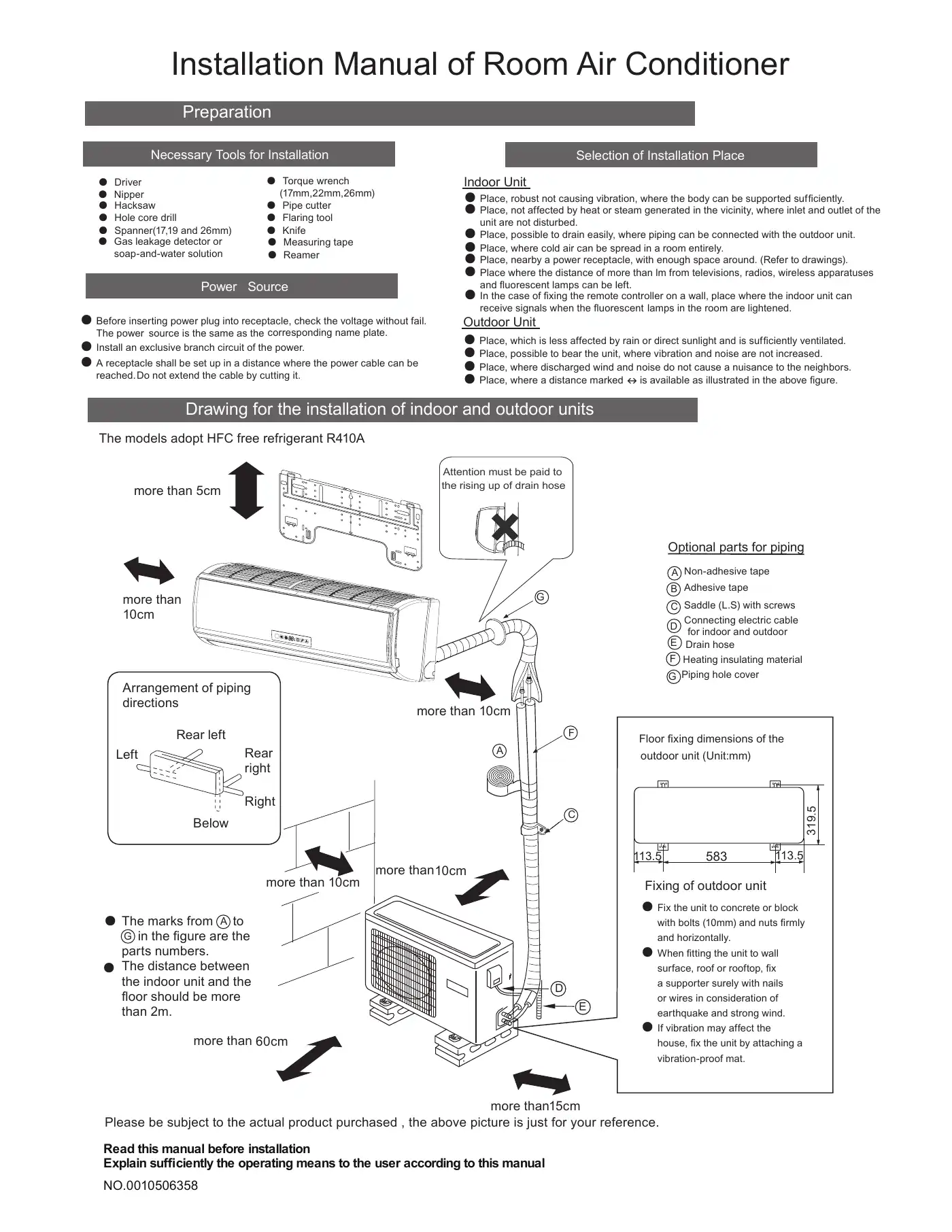

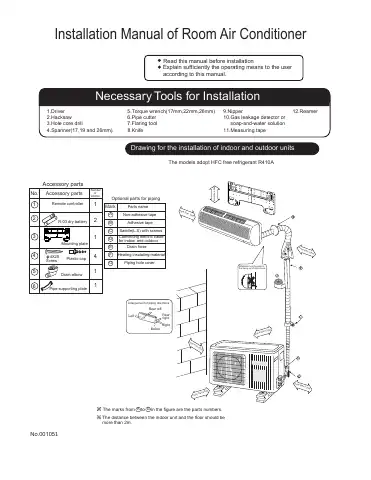

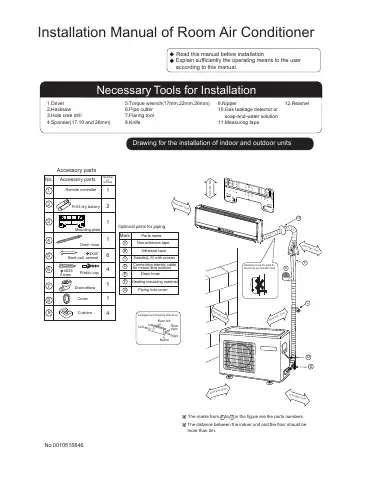

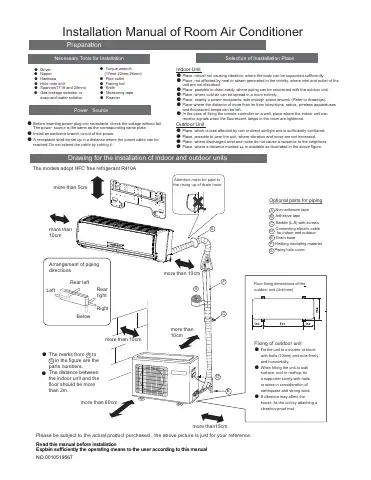

Drawing for the installation of indoor and outdoor unitsNecessary Tools for InstallationDriver● Torque wrench●(17mm,22mm,26mm)Nipper●Reamer●Hacksaw● Pipe cutter●Gas leakage detector or●soap-and-water solutionHole core drill● Flaring tool●Spanner(17,19 and 26mm)● Knife●Measuring tape●Indoor UnitPlace, robust not causing vibration, where the body can be supported sufficiently.● Place, not affected by heat or steam generated in the vicinity, where inlet and outlet of theunit are not disturbed.●Place, possible to drain easily, where piping can be connected with the outdoor unit.●Place, where cold air can be spread in a room entirely.● Place, nearby a power receptacle, with enough space around. (Refer to drawings).●Place where the distance of more than lm from televisions, radios, wireless apparatusesand fluorescent lamps can be left.●In the case of fixing the remote controller on a wall, place where the indoor unit canreceive signals when the fluorescent● lamps in the room are lightened.Outdoor UnitPlace, which is less affected by rain or direct sunlight and is sufficiently ventilated.●Place, possible to bear the unit, where vibration and noise are not increased.●Place, where discharged wind and noise do not cause a nuisance to the neighbors.●Place, where a distance marked●  is available as illustrated in the above figure.Before inserting power plug into receptacle, check the voltage without fail.The power source is the same as the● corresponding name plate.Install an exclusive branch circuit of the power.●A receptacle shall be set up in a distance where the power cable can bereached.Do not extend the cable by cutting it.●Power SourcePreparationRead this manual before installationExplain sufficiently the operating means to the user according to this manualNO.0010506358Installation Manual of Room Air ConditionerFACEDOptional parts for pipingNon-adhesive tapeAdhesive tapeSaddle (L.S) with screwsConnecting electric cablefor indoor and outdoorDrain hoseHeating insulating materialPiping hole coverFloor fixing dimensions of theoutdoor unit (Unit:mm)Fixing of outdoor unitFix the unit to concrete or block●with bolts (10mm) and nuts firmlyand horizontally.When fitting the unit to wall●surface, roof or rooftop, fixa supporter surely with nailsor wires in consideration ofearthquake and strong wind.If vibration may affect the●house, fix the unit by attaching avibration-proof mat.The marks from toin the figure are theparts numbers.The distance betweenthe indoor unit and thefloor should be morethan 2m.The models adopt HFC free refrigerant R410Amore than10cmmore than 5cmmore than 10cmmore than 10cm more than10cmmore than15cmmore than 60cmAG●●AFCEDGBArrangement of pipingdirectionsRear leftLeft RearrightRightBelowGPlease be subject to the actual product purchased , the above picture is just for your reference.Attention must be paid tothe rising up of drain hose113.5 583 113.55.913Selection of Installation Place
