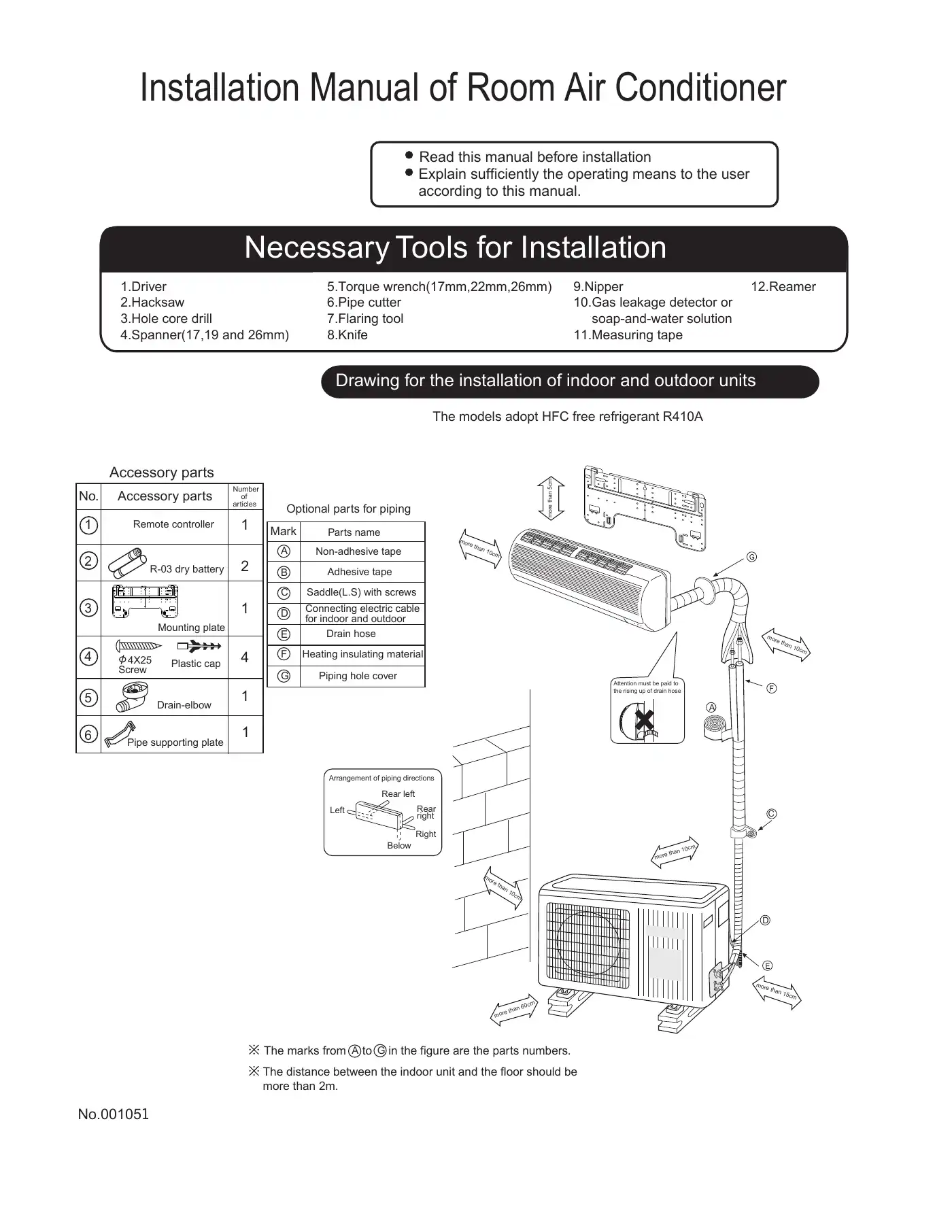

No.001051Installation Manual of Room Air ConditionerDrawing for the installation of indoor and outdoor unitsRead this manual before installation1.Driver2.Hacksaw3.Hole core drill4.Spanner(17,19 and 26mm)5.Torque wrench(17mm,22mm,26mm)6.Pipe cutter7.Flaring tool8.Knife9.Nipper 12.Reamer10.Gas leakage detector orsoap-and-water solution11.Measuring tapeExplain sufficiently the operating means to the useraccording to this manual.Necessary Tools for InstallationThe models adopt HFC free refrigerant R410AABCDEFGOptional parts for pipingMark Parts nameNon-adhesive tapeAdhesive tapeSaddle(L.S) with screwsConnecting electric cablefor indoor and outdoorDrain hoseHeating insulating materialPiping hole coverNo. Accessory partsRemote controllerR-03 dry batteryMounting plateDrain-elbow112345621411NumberofarticlesAccessory partsPipe supporting plateArrangement of piping directionsRear leftRearrightLeftBelowRightThe marks from to in the figure are the parts numbers.The distance between the indoor unit and the floor should bemore than 2m.A GAttention must be paid tothe rising up of drain hosemore than 5cmmore than 10cmmore than 10cmmore than 10cmmore than 60cmmore than 15cmmore than 10cmACDScrew Plastic cap4X25
