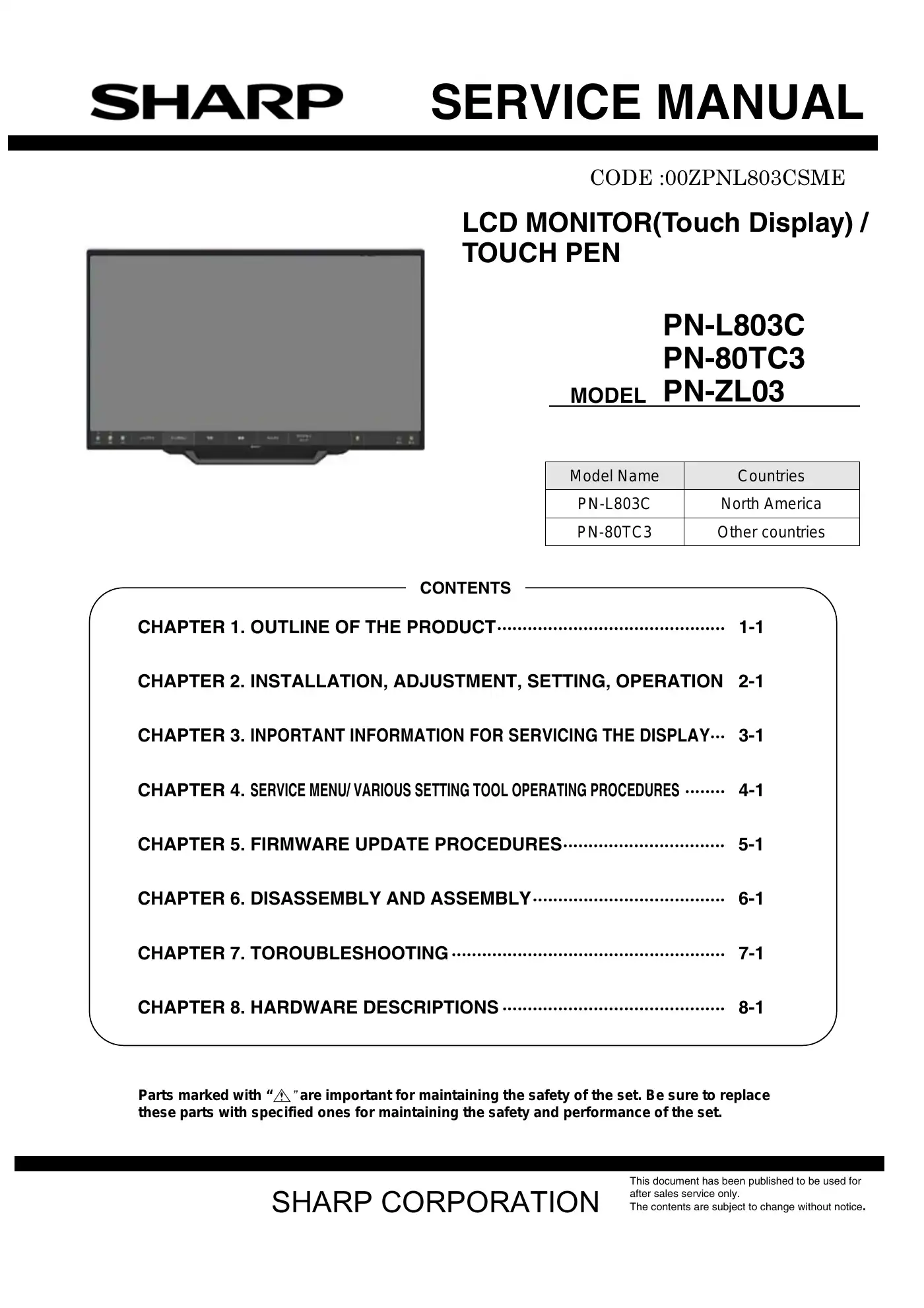

SERVICE MANUALCODE :00ZPNL803CSMEParts marked with “!” are important for maintaining the safety of the set. Be sure to replacethese parts with specified ones for maintaining the safety and performance of the set.This document has been published to be used forafter sales service only.The contents are subject to change without notice.SHARP CORPORATIONModel Name CountriesPN-L803C North AmericaPN-80TC3 Other countriesCHAPTER 1. OUTLINE OF THE PRODUCT ············································· 1-1CHAPTER 2. INSTALLATION, ADJUSTMENT, SETTING, OPERATION 2-1CHAPTER 3. INPORTANT INFORMATION FOR SERVICING THE DISPLAY ··· 3-1CHAPTER 4. SERVICE MENU/ VARIOUS SETTING TOOL OPERATING PROCEDURES ········ 4-1CHAPTER 5. FIRMWARE UPDATE PROCEDURES ································ 5-1CHAPTER 6. DISASSEMBLY AND ASSEMBLY ······································ 6-1CHAPTER 7. TOROUBLESHOOTING ······················································ 7-1CHAPTER 8. HARDWARE DESCRIPTIONS ············································ 8-1CONTENTSLCD MONITOR(Touch Display) /TOUCH PENMODELPN-L803CPN-80TC3PN-ZL03
