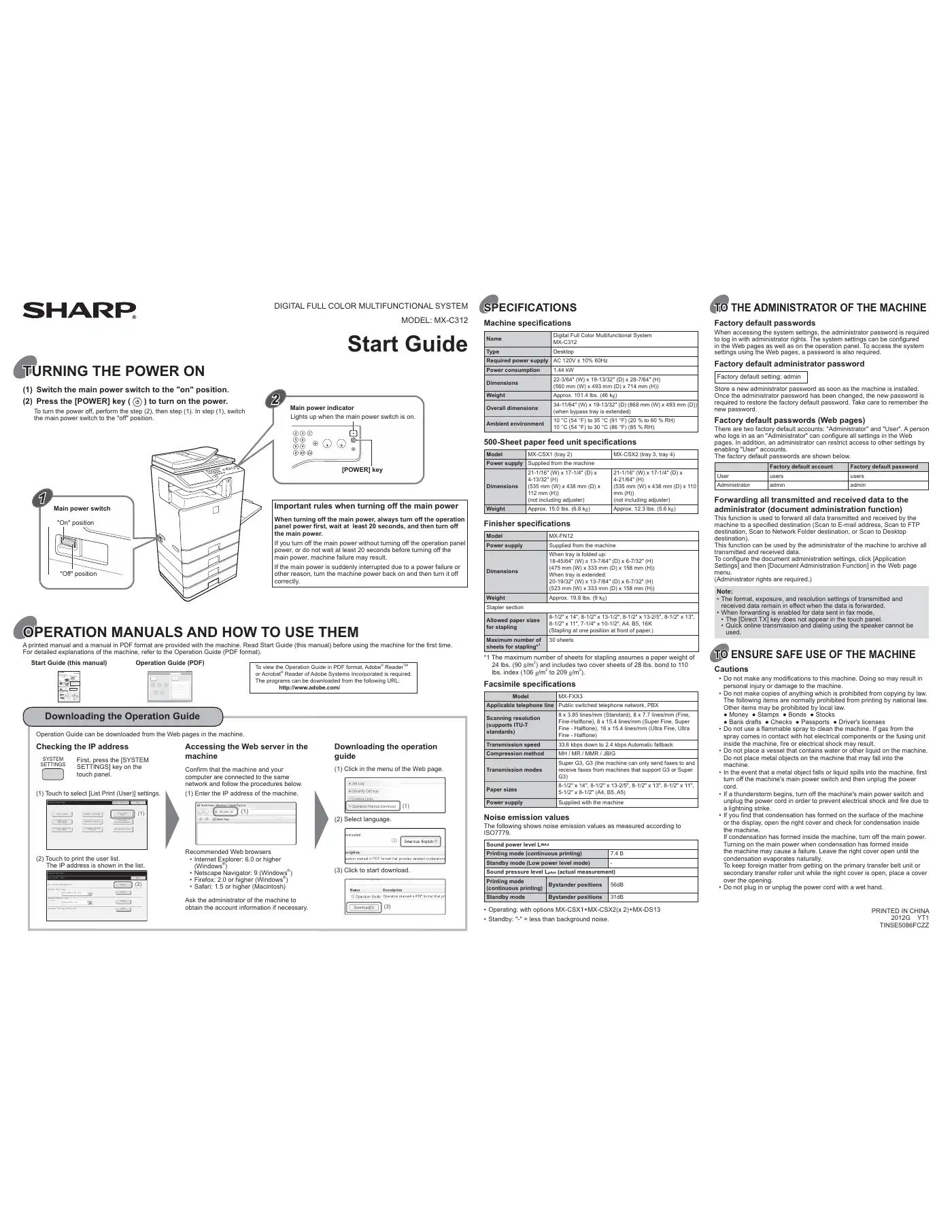

Sharp MX-C312 Start Manual

Also see for MX-C312: Specifications Start guide Brochure & specs Operation guide Configuration guide

Contents

SPECIFICATIONSMachine specificationsName Digital Full Color Multifunctional SystemMX-C312Type DesktopRequired power supply AC 120V ± 10% 60HzPower consumption 1.44 kWDimensions 22-3/64" (W) x 19-13/32" (D) x 28-7/64" (H)(560 mm (W) x 493 mm (D) x 714 mm (H))Weight Approx. 101.4 lbs. (46 kg)Overall dimensions 34-11/64" (W) x 19-13/32" (D) (868 mm (W) x 493 mm (D))(when bypass tray is extended)Ambient environment 10 °C (54 °F) to 35 °C (91 °F) (20 % to 60 % RH)10 °C (54 °F) to 30 °C (86 °F) (85 % RH)500-Sheet paper feed unit specificationsModel MX-CSX1 (tray 2) MX-CSX2 (tray 3, tray 4)Power supply Supplied from the machineDimensions21-1/16" (W) x 17-1/4" (D) x4-13/32" (H)(535 mm (W) x 438 mm (D) x112 mm (H))(not including adjuster)21-1/16" (W) x 17-1/4" (D) x4-21/64" (H)(535 mm (W) x 438 mm (D) x 110mm (H))(not including adjuster)Weight Approx. 15.0 lbs. (6.8 kg) Approx. 12.3 lbs. (5.6 kg)Finisher specificationsModel MX-FN12Power supply Supplied from the machineDimensionsWhen tray is folded up:18-45/64" (W) x 13-7/64" (D) x 6-7/32" (H)(475 mm (W) x 333 mm (D) x 158 mm (H))When tray is extended:20-19/32" (W) x 13-7/64" (D) x 6-7/32" (H)(523 mm (W) x 333 mm (D) x 158 mm (H))Weight Approx. 19.8 lbs. (9 kg)Stapler sectionAllowed paper sizesfor stapling8-1/2" x 14", 8-1/2" x 13-1/2", 8-1/2" x 13-2/5", 8-1/2" x 13",8-1/2" x 11", 7-1/4" x 10-1/2", A4, B5, 16K(Stapling at one position at front of paper.)Maximum number ofsheets for stapling* 130 sheets*1 The maximum number of sheets for stapling assumes a paper weight of24 lbs. (90 g/m 2 ) and includes two cover sheets of 28 lbs. bond to 110lbs. index (106 g/m2 to 209 g/m2 ).Facsimile specificationsModel MX-FXX3Applicable telephone line Public switched telephone network, PBXScanning resolution(supports ITU-Tstandards)8 x 3.85 lines/mm (Standard), 8 x 7.7 lines/mm (Fine,Fine-Halftone), 8 x 15.4 lines/mm (Super Fine, SuperFine - Halftone), 16 x 15.4 lines/mm (Ultra Fine, UltraFine - Halftone)Transmission speed 33.6 kbps down to 2.4 kbps Automatic fallbackCompression method MH / MR / MMR / JBIGTransmission modesSuper G3, G3 (the machine can only send faxes to andreceive faxes from machines that support G3 or SuperG3)Paper sizes 8-1/2" x 14", 8-1/2" x 13-2/5", 8-1/2" x 13", 8-1/2" x 11",5-1/2" x 8-1/2" (A4, B5, A5)Power supply Supplied with the machineNoise emission valuesThe following shows noise emission values as measured according toISO7779.Sound power level LWAdPrinting mode (continuous printing) 7.4 BStandby mode (Low power level mode) -Sound pressure level LpAm (actual measurement)Printing mode(continuous printing) Bystander positions 56dBStandby mode Bystander positions 31dBOperating: with options MX-CSX1+MX-CSX2(x 2)+MX-DS13Standby: "-" = less than background noise.TO THE ADMINISTRATOR OF THE MACHINEFactory default passwordsWhen accessing the system settings, the administrator password is requiredto log in with administrator rights. The system settings can be configuredin the Web pages as well as on the operation panel. To access the systemsettings using the Web pages, a password is also required.Factory default administrator passwordFactory default setting: adminStore a new administrator password as soon as the machine is installed.Once the administrator password has been changed, the new password isrequired to restore the factory default password. Take care to remember thenew password.Factory default passwords (Web pages)There are two factory default accounts: "Administrator" and "User". A personwho logs in as an "Administrator" can configure all settings in the Webpages. In addition, an administrator can restrict access to other settings byenabling "User" accounts.The factory default passwords are shown below.Factory default account Factory default passwordUser users usersAdministrator admin adminForwarding all transmitted and received data to theadministrator (document administration function)This function is used to forward all data transmitted and received by themachine to a specified destination (Scan to E-mail address, Scan to FTPdestination, Scan to Network Folder destination, or Scan to Desktopdestination).This function can be used by the administrator of the machine to archive alltransmitted and received data.To configure the document administration settings, click [ApplicationSettings] and then [Document Administration Function] in the Web pagemenu.(Administrator rights are required.)Note:The format, exposure, and resolution settings of transmitted andreceived data remain in effect when the data is forwarded.When forwarding is enabled for data sent in fax mode,The [Direct TX] key does not appear in the touch panel.Quick online transmission and dialing using the speaker cannot beused.TO ENSURE SAFE USE OF THE MACHINECautionsDo not make any modifications to this machine. Doing so may result inpersonal injury or damage to the machine.Do not make copies of anything which is prohibited from copying by law.The following items are normally prohibited from printing by national law.Other items may be prohibited by local law. Do not use a flammable spray to clean the machine. If gas from thespray comes in contact with hot electrical components or the fusing unitinside the machine, fire or electrical shock may result.Do not place a vessel that contains water or other liquid on the machine.Do not place metal objects on the machine that may fall into themachine.In the event that a metal object falls or liquid spills into the machine, first ! cord.# $!& unplug the power cord in order to prevent electrical shock and fire due toa lightning strike.If you find that condensation has formed on the surface of the machineor the display, open the right cover and check for condensation insidethe machine.If condensation has formed inside the machine, turn off the main power.Turning on the main power when condensation has formed insidethe machine may cause a failure. Leave the right cover open until thecondensation evaporates naturally.To keep foreign matter from getting on the primary transfer belt unit orsecondary transfer roller unit while the right cover is open, place a coverover the opening.Do not plug in or unplug the power cord with a wet hand.DIGITAL FULL COLOR MULTIFUNCTIONAL SYSTEMMODEL: MX-C312Start GuideTURNING THE POWER ON22T11OPERATION MANUALS AND HOW TO USE THEMA printed manual and a manual in PDF format are provided with the machine. Read Start Guide (this manual) before using the machine for the first time.For detailed explanations of the machine, refer to the Operation Guide (PDF format).To view the Operation Guide in PDF format, Adobe ® Reader TMor Acrobat ® Reader of Adobe Systems Incorporated is required.The programs can be downloaded from the following URL:http://www.adobe.com/DIGITAL FULL COLOUR MULTIFUNCTIONAL SYSTEMMODEL: MX-C312Start GuideTURNING THE POWER ON22T11OPEARTION MAMUALS AND HOW TO HSE THEMA printed manual and a manual in PDF format are provided with the machine. Read Start Guide (this manual) before using the machine for the first time.For detailed explanations of the machine, refer to the Operation Guide (PDF format).To view the Operation Guide in PDF format, Adobe ® Reader TMor Acrobat® Reader of Adobe Systems Incorporated is required.If neither program is installed on your computer, the programscan be downloaded from the following URL:http://www.adobe.com/DIGITAL FULL COLOUR MULTIFUNCTIONAL SYSTEMStart GuideTURNING THE POWER ON AND OFFThe machine has two power switches. One is the main power switch on theleft side of the machine, and the other is the [POWER] key ( ) on the upperright side of the operation panel.Intended useTurning on the power(1) Switch the main power switch to the "on" position.(2) Press the [POWER] key ( ) to turn on the power.Turning off the power(1) Press the [POWER] key ( ) to turn off the power.(2) Switch the main power switch to the "off" position.Important rules when turning off the main powerWhen turning off the main power, always turn off the operation panelpower first, wait at least 20 seconds, and then turn off the main power.If you turn off the main power without turning off the operation panel power,or do not wait at least 20 seconds before turning off the main power, machinefailure may result.If the main power is suddenly interrupted due to a power failure or otherManuals in PDF formatDetailed explanations of the functions that can be used on the machine areprovided in the Operation Guide in PDF format. The Operation Guide can bedownloaded from the Web pages in the machine.* To view the Operation Guide in PDF format, Adobe ® ReaderTM orAcrobat® Reader of Adobe Systems Incorporated is required. If neitherprogram is installed on your computer, the programs can be downloadedfrom the following URL:http://www.adobe.com/ACCESSING THE WEB SERVER IN THEMACHINEWhen the machine is connected to a network, the machine's built-in Webserver can be accessed from a Web browser on your computerOperation GuideDownload the Operation Guide fromthe Web pages in the machine.For the downloading procedure, see"Downloading the Operation Guide".Convenient methods for using the Operation GuideThe first page contains a regular table of contents as well as an "I want to..." tableof contents."I want to..." lets you jump to an explanation based on what you want to do. Forexample, "I use the copier function often, so I'd like to save paper".Use either table of contents as appropriate based on what you want to know.The contents of the Operation Guide are as follows:BEFORE USING THE MACHINECOPIERPRINTERFACSIMILESCANNER / INTERNET FAXDOCUMENT FILINGSYSTEM SETTINGSTROUBLESHOOTINGMODEL: MX-C312Main power switchWhen the main power switch is switchedon, the main power indicator on theoperation panel lights up.[POWER] keyTMain power indicator[POWER] key"On" position"Off" positionStart Guide (this manual) Operation Guide (PDF)Operation Guide can be downloaded from the Web pages in the machine.Checking the IP addressSYSTEMSETTINGS First, press the [SYSTEMSETTINGS] key on thetouch panel.(1) Touch to enter [List Print (User)] settings.System Settings Admin Password ExitTotal CountPaper TraySettingsPrinter ConditionSettings Document FilingControlAddress Control Fax DataReceive/ForwardUSB-Device CheckDefault Settings List Print(User) (1)(2) Touch to print the user list.The IP address is shown in the list.PrintPrintPrintPrintSystem SettingsList Print (User)All Custom Setting List:Sending Address List:Printer Test Page:Document Filling Folder List:PCL Symbol Set ListIndividual ListBack(2)Accessing the Web server in themachineConfirm that the machine and yourcomputer are connected to the samenetwork and follow the procedures below.(1) Input the IP address of the machine.(1)Recommended Web browsersAInternet Explorer: 6.0 or higher(Windows ® )ANetscape Navigator: 9 (Windows ® )AFirefox: 2.0 or higher (Windows ® )ASafari: 1.5 or higher (Macintosh)Ask the administrator of the machine toobtain the account information necessaryfor ventification.Downloading the operationguide(1) Click in the menu of the Web page.(1)(2) Select language.(2)(3) Click to start download.(3)Downloading the operation guide(1) Switch the main power switch to the "on" position.(2) Press the [POWER] key ( ) to turn on the power.To turn the power off, perform the step (2), then step (1). In step (1), switchthe main power switch to the “off” position.Main power switchMain power indicator"On" positionLights up when the main power switch is on."Off" position[POWER] keyImportant rules when turning off the main powerWhen turning off the main power, always turn off the operationpanel power first, wait at least 20 seconds, and then turn offthe main power.If you turn off the main power without turning off the operation panelpower, or do not wait at least 20 seconds before turning off themain power, machine failure may result.If the main power is suddenly interrupted due to a power failure orother reason, turn the machine power back on and then turn it offcorrectly as described below.Start Guide (this manual) Operation Guide (PDF)Operation Guide can be downloaded from the Web pages in the machine.Checking the IP addressSYSTEMSETTINGS First, press the [SYSTEMSETTINGS] key on thetouch panel.(1) Touch to select [List Print (User)] settings.System Settings Admin Password ExitTotal CountPaper TraySettingsPrinter ConditionSettings Document FilingControlAddress Control Fax DataReceive/ForwardUSB-Device CheckDefault Settings List Print(User) (1)(2) Touch to print the user list.The IP address is shown in the list.PrintPrintPrintPrintSystem SettingsList Print (User)All Custom Setting List:Sending Address List:Printer Test Page:Document Filling Folder List:PCL Symbol Set ListIndividual ListBack(2)Accessing the Web server in themachineConfirm that the machine and yourcomputer are connected to the samenetwork and follow the procedures below.(1) Enter the IP address of the machine.(1)Recommended Web browsersInternet Explorer: 6.0 or higher(Windows ®)Netscape Navigator: 9 (Windows ®)Firefox: 2.0 or higher (Windows ®)Safari: 1.5 or higher (Macintosh)Ask the administrator of the machine toobtain the account information if necessary.Downloading the operationguide(1) Click in the menu of the Web page.(1)(2) Select language.¨²©(3) Click to start download.(3) PRINTED IN CHINA2012G YT1TINSE5086FCZZDownloading the Operation Guide(1) Switch the main power switch to the "on" position.(2) Press the [POWER] key ( ) to turn on the power.To turn the power off, perform the step (2), then step (1). In step (1), switchthe main power switch to the "off" position.Main power switchMain power indicator"On" positionLights up when the main power switch is on."Off" position[POWER] keyImportant rules when turning off the main powerWhen turning off the main power, always turn off the operationpanel power first, wait at least 20 seconds, and then turn offthe main power.If you turn off the main power without turning off the operation panelpower, or do not wait at least 20 seconds before turning off themain power, machine failure may result.If the main power is suddenly interrupted due to a power failure orother reason, turn the machine power back on and then turn it offcorrectly.

/ 2
