Sharp LC-24LE210E Service Manual

Also see for AQUOS LC-24LE220E: Operation manual Operation manual

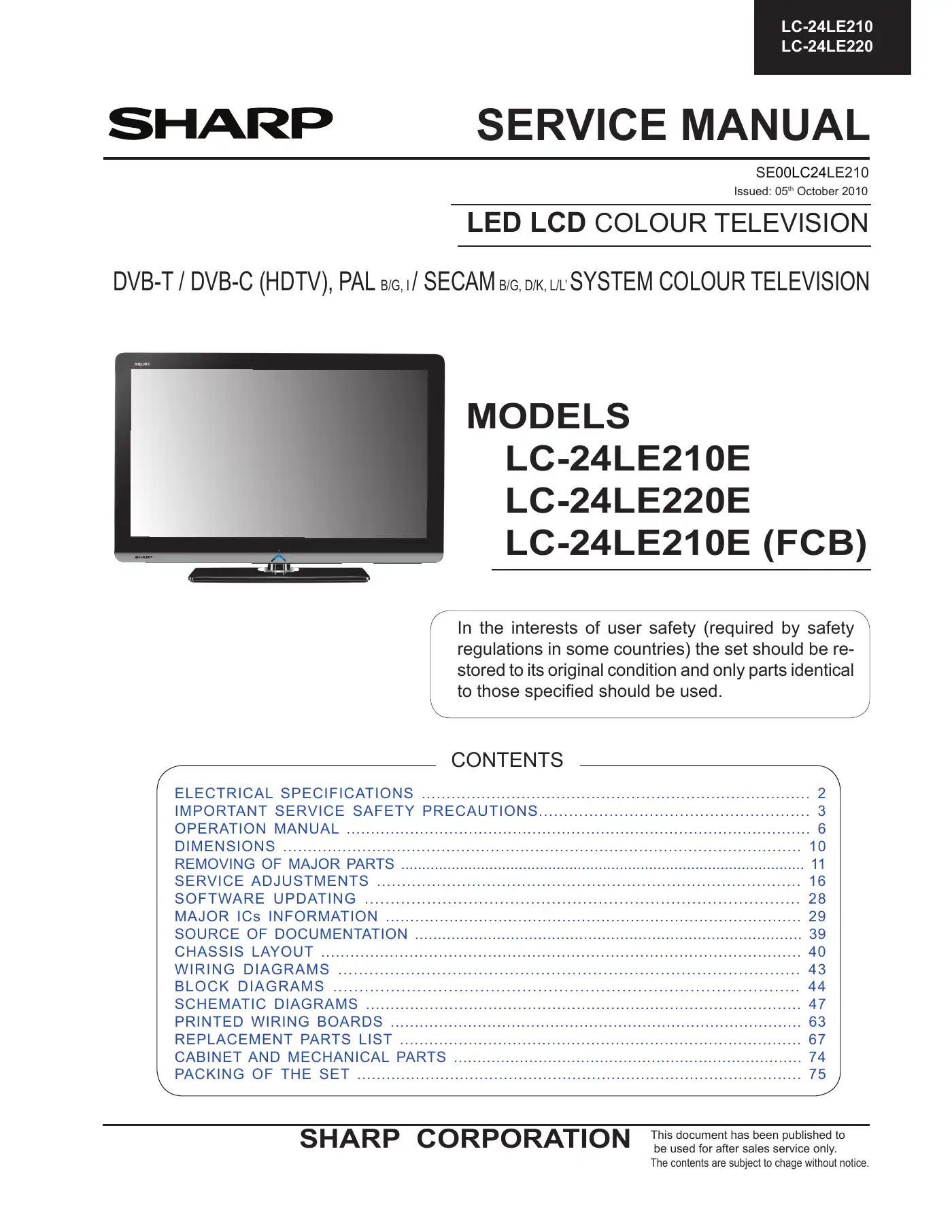

1LC-24LE210LC-24LE220MODELSLC-24LE210ELC-24LE220ELC-24LE210E (FCB)SERVICE MANUALLED LCD COLOUR TELEVISIONDVB-T / DVB-C (HDTV), PAL B/G, I / SECAM B/G, D/K, L/L’ SYSTEM COLOUR TELEVISIONSHARP CORPORATION This document has been published tobe used for after sales service only.The contents are subject to chage without notice.SE00LC24LE210In the interests of user safety (required by safetyregulations in some countries) the set should be re-stored to its original condition and only parts identicalto those specified should be used.CONTENTSELECTRICAL SPECIFICATIONS .............................................................................. 2IMPORTANT SERVICE SAFETY PRECAUTIONS...................................................... 3OPERATION MANUAL ............................................................................................... 6DIMENSIONS ......................................................................................................... 10REMOVING OF MAJOR PARTS ................................................................................................ 11SERVICE ADJUSTMENTS ..................................................................................... 16SOFTWARE UPDATING .................................................................................... 28MAJOR ICs INFORMATION ..................................................................................... 29SOURCE OF DOCUMENTATION ..................................................................................... 39CHASSIS LAYOUT .................................................................................................. 40WIRING DIAGRAMS ......................................................................................... 43BLOCK DIAGRAMS ......................................................................................... 44SCHEMATIC DIAGRAMS ......................................................................................... 47PRINTED WIRING BOARDS ..................................................................................... 63REPLACEMENT PARTS LIST .................................................................................. 67CABINET AND MECHANICAL PARTS .......................................................................... 74PACKING OF THE SET ........................................................................................... 75Issued: 05th October 2010
