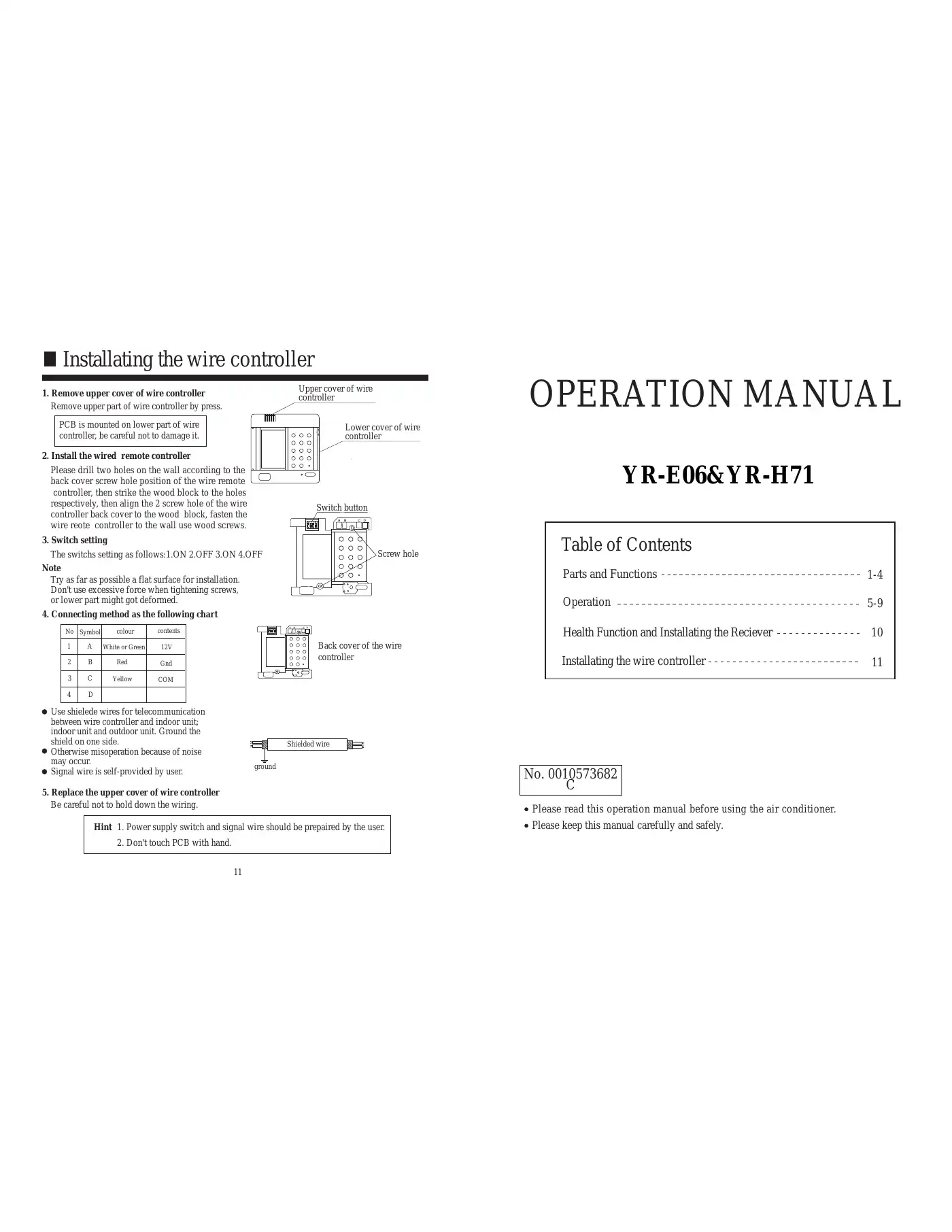

Haier YR-E06 Operation Manual Manual pdf 1 page image

No. 0010573682CTable of ContentsOperation 5-9Parts and Functions 1-41110Use shielede wires for telecommunicationbetween wire controller and indoor unit;indoor unit and outdoor unit. Ground theshield on one side.Otherwise misoperation because of noisemay occur.Signal wire is self-provided by user.Shielded wiregroundOPERATION MANUALYR-E06&YR-H71Please read this operation manual before using the air conditioner.Please keep this manual carefully and safely.Health Function and Installating the RecieverInstallating the wire controller11Installating the wire controller5. Replace the upper cover of wire controllerNoteTry as far as possible a flat surface for installation.Don't use excessive force when tightening screws,or lower part might got deformed.Hint 1. Power supply switch and signal wire should be prepaired by the user.2. Don't touch PCB with hand.Be careful not to hold down the wiring.1. Remove upper cover of wire controllerRemove upper part of wire controller by press.Lower cover of wirecontrollerUpper cover of wirecontroller2. Install the wired remote controllerPlease drill two holes on the wall according to theback cover screw hole position of the wire remotecontroller, then strike the wood block to the holesrespectively, then align the 2 screw hole of the wirecontroller back cover to the wood block, fasten thewire reote controller to the wall use wood screws.3. Switch settingThe switchs setting as follows:1.ON 2.OFF 3.ON 4.OFF4. Connecting method as the following chartBack cover of the wirecontrollerPCB is mounted on lower part of wirecontroller, be careful not to damage it.Switch buttonScrew holeNo Symbol colour contents1234ABCDWhite or GreenRedYellow COMGnd12V
