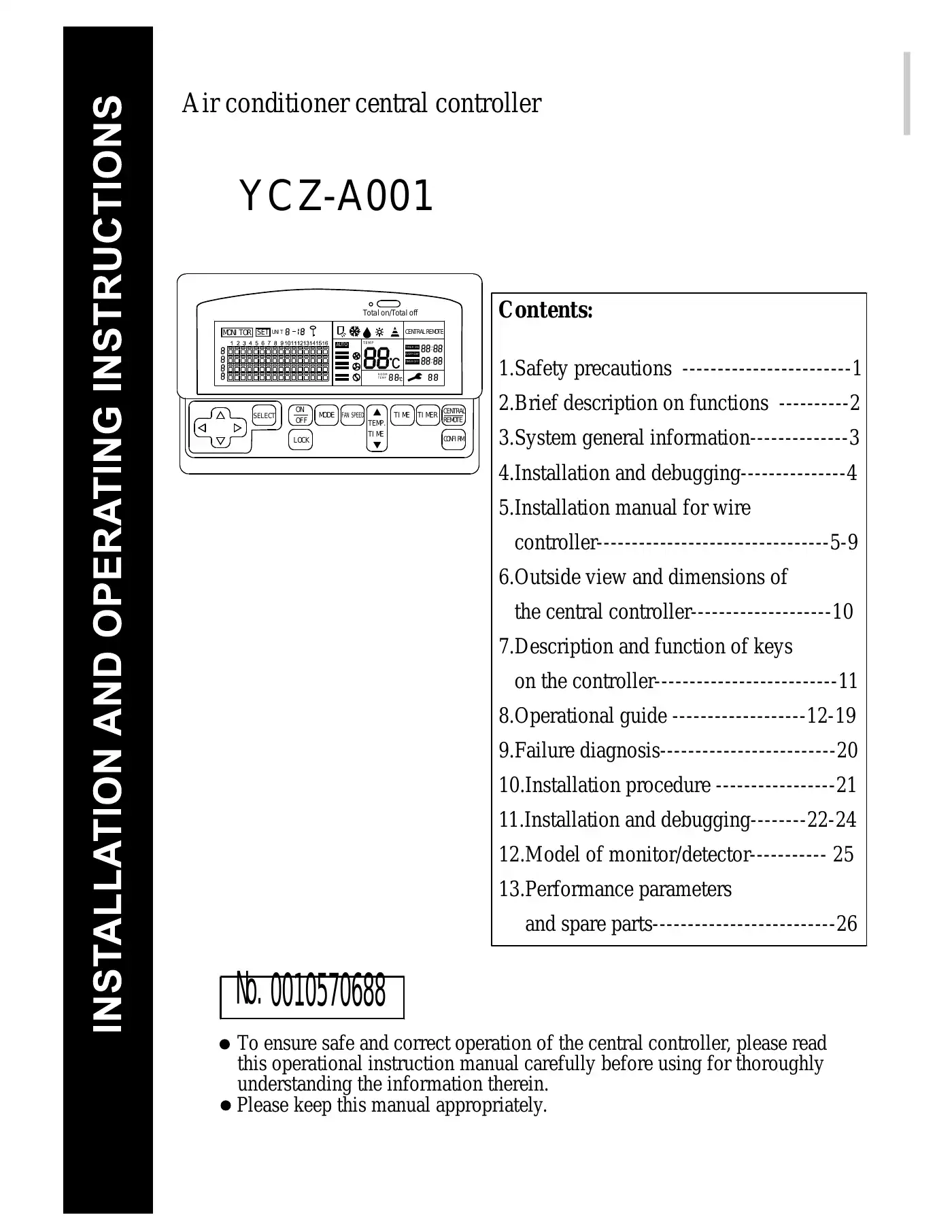

Haier YCZ-A001 Installation And Operating Instruction Manual pdf 1 page image

YCZ-A001Air conditioner central controllerContents:1.Safety precautions ------------------------12.Brief description on functions ----------23.System general information--------------34.Installation and debugging---------------45.Installation manual for wirecontroller---------------------------------5-96.Outside view and dimensions ofthe central controller--------------------107.Description and function of keyson the controller--------------------------118.Operational guide -------------------12-199.Failure diagnosis-------------------------2010.Installation procedure -----------------2111.Installation and debugging--------22-2412.Model of monitor/detector----------- 2513.Performance parametersand spare parts--------------------------26To ensure safe and correct operation of the central controller, please readthis operational instruction manual carefully before using for thoroughlyunderstanding the information therein.Please keep this manual appropriately.No. 0010570688MONI TOR SET UNI TAUTO TEMPROOMTEMPCENTRALREMOTETIMER ONEVERY DAYSELECT ONOFF MODE FAN SPEEDTEMP.TI METI ME TI MER CENTRALREMOTECONFI RMLOCKTIMER OFFTotal on/Total off

/ 28
