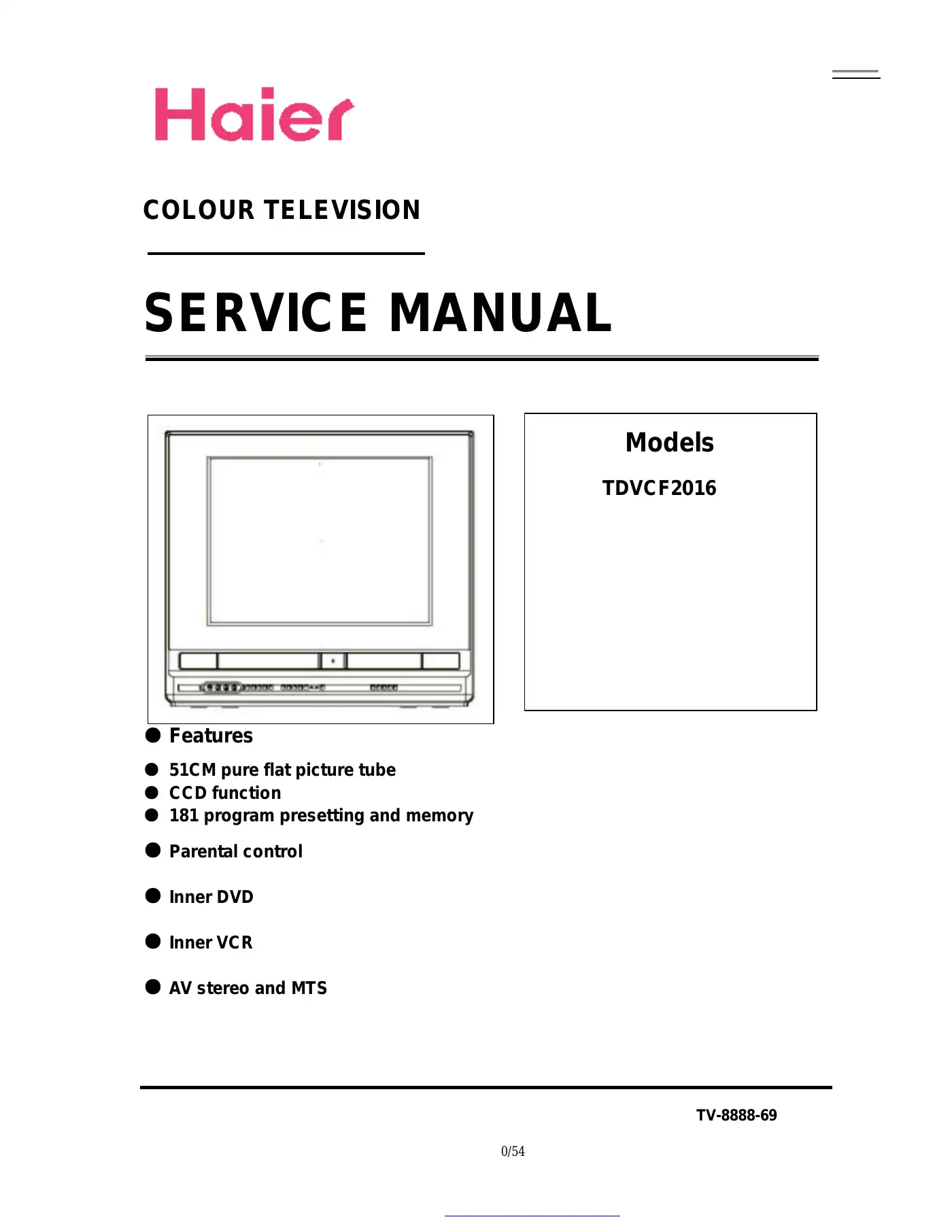

Haier TDVCF2016 Service Manual

The Haier TDVCF2016 allows for 181 program presetting and memory.

The Haier TDVCF2016 features a 51CM pure flat picture tube.

The available languages for the display on the Haier TDVCF2016 television are English, French, and Spanish.

To clean the TV set, first pull out the power plug from the AC outlet. Do not use benzene, petrol, or other chemicals to clean the cabinet and the screen. Use a dry cotton cloth to clean the tube surface if necessary, and avoid using any cleanser or hard cloth that could damage the surface.

To prevent the TV set from firing or electric shock, do not expose it to rain or moisture. Additionally, when the TV set is not going to be used for a long time or during thunder and lightning, pull out the plug from the AC outlet and the antenna plug from the cover of the TV set.

To adjust the horizontal and vertical centering, enter the GEO mode by receiving a cross-hatch pattern. Select H.CENTER to adjust the horizontal centering and V.CENTER to adjust the vertical centering. Use the MENU button to exit the GEO mode after adjustments.

To adjust the focus, receive a mono-scope pattern and then adjust the focus control volume located on the FBT (Flyback Transformer) to obtain a clear pattern.

To adjust the VCR sound output, connect the RCA line to the rear audio output terminal. Then, connect the CH2 on the oscillograph to the RCA line and adjust the Azimuth to maximize the signal on CH2.

If there is a horizontal line at the bottom of the screen during VCR playback, it indicates that the time adjustment is not proper. To fix this, press REC during the SN-2 is being played. The CPU of the TV will adjust the time automatically. The time shown on the oscillograph should be between 6H (379.8US) and 7H (443.1US). If the time is not within this range, press REC again until the adjustment is correct.
