Haier LET39Z18HF Service Manual

Also see for LET39Z18HF: Instruction manual Instruction manual

Contents

Table of Contents2

1 General Information4

2 Specification8
3 Location of Controls and Components9

Haier LET39Z18HF Service Manual Manual pdf 9 page image

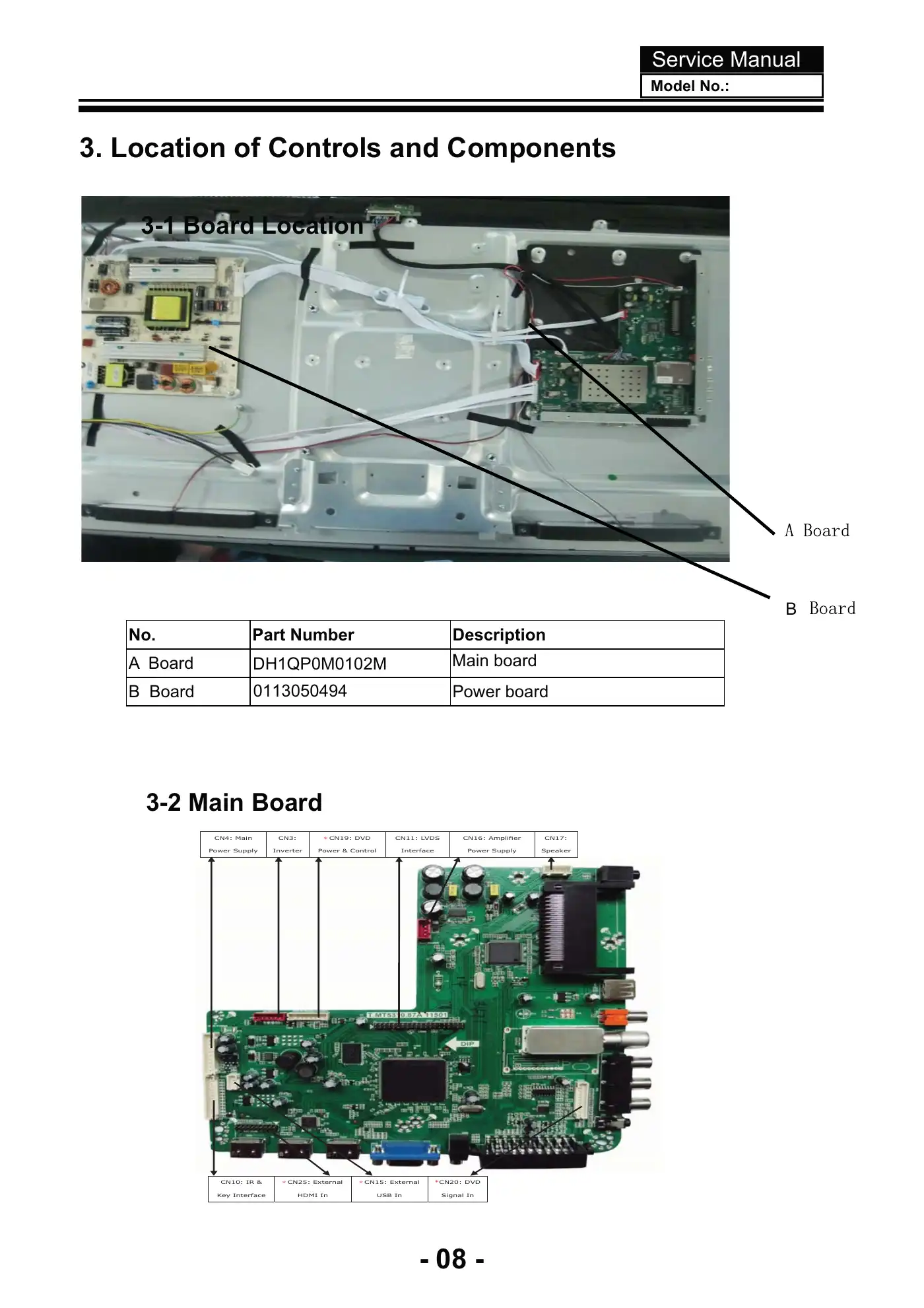

- 08 -Service ManualModel No.:3. Location of Controls and Components3-1 Board LocationNo. Part Number DescriptionA BoardB Board3-2 Main BoardMain boardPower boardDH1QP0M0102M0113050494BCN4: MainPower SupplyCN3:InverterCN19: DVDPower & ControlCN11: LVDSInterfaceCN16: AmplifierPower SupplyCN17:SpeakerCN10: IR &Key InterfaceCN25: ExternalHDMI InCN15: ExternalUSB In*CN20: DVDSignal In

/ 39
