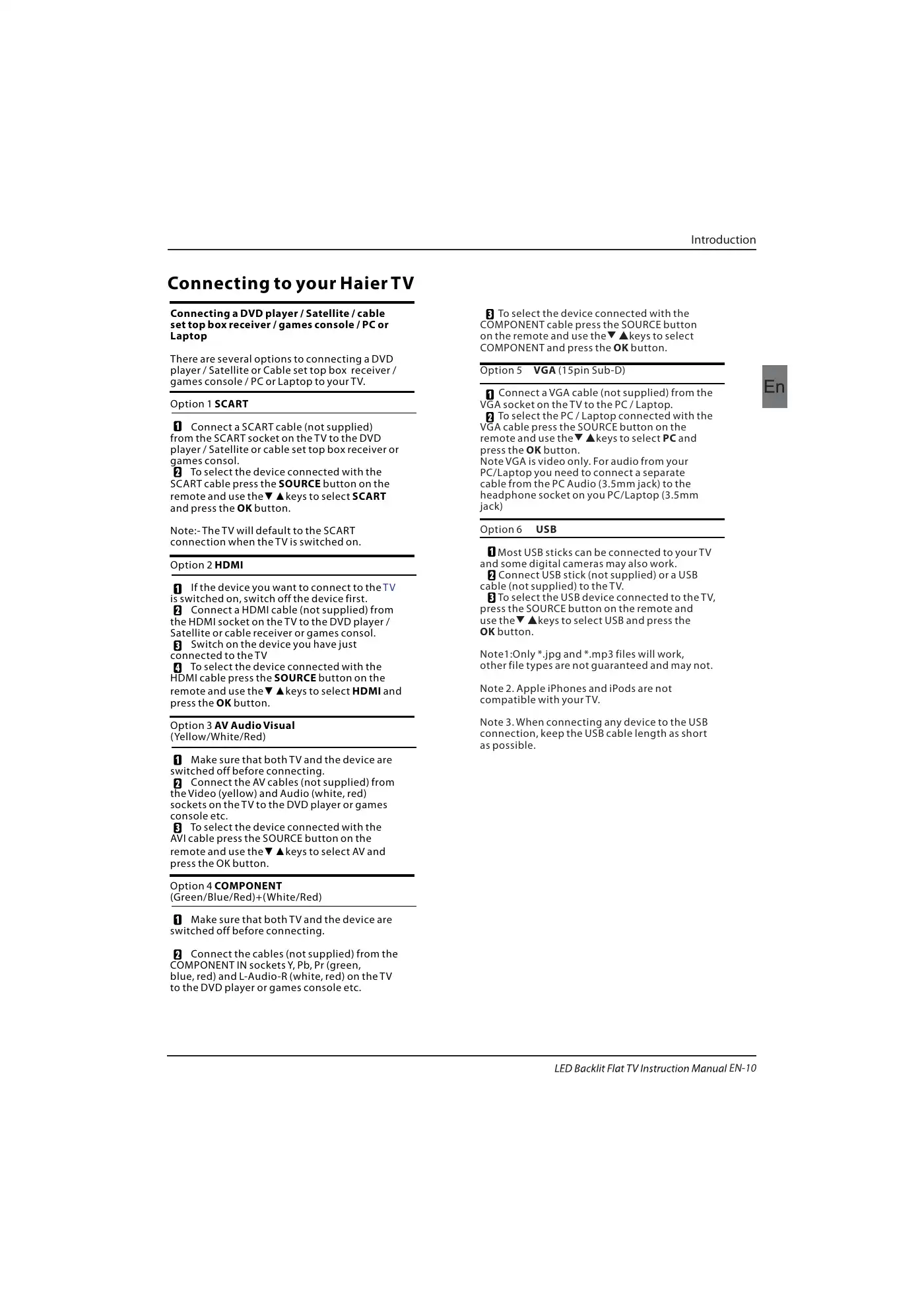

IntroductionEN-10Connecting a DVD player / Satellite / cableset top box receiver / games console / PC orLaptopThere are several options to connecting a DVDplayer / Satellite or Cable set top box receiver /games console / PC or Laptop to your TV.Option 1 SCARTConnect a SCART cable (not supplied)from the SCART socket on the TV to the DVDplayer / Satellite or cable set top box receiver orgames consol.To select the device connected with theSCART cable press the SOURCE button on theremote and use the▼▲keys to select SCARTand press the OK button.Note:- The TV will default to the SCARTconnection when the TV is switched on.Option 2 HDMIIf the device you want to connect to theis switched on, switch off the device first.Connect a HDMI cable (not supplied) fromthe HDMI socket on the TV to the DVD player /Satellite or cable receiver or games consol.Switch on the device you have justconnected to the TVTo select the device connected with theHDMI cable press the SOURCE button on theremote and use the▼▲keys to select HDMI andpress the OK button.Option 3 AV Audio Visual(Yellow/White/Red)Make sure that both TV and the device areswitched off before connecting.Connect the AV cables (not supplied) fromthe Video (yellow) and Audio (white, red)sockets on the TV to the DVD player or gamesconsole etc.To select the device connected with theAVI cable press the SOURCE button on theremote and use the▼▲keys to select AV andpress the OK button.Option 4 COMPONENT(Green/Blue/Red)+(White/Red)Make sure that both TV and the device areswitched off before connecting.TVConnect the cables (not supplied) from theCOMPONENT IN sockets Y, Pb, Pr (green,blue, red) and L-Audio-R (white, red) on the TVto the DVD player or games console etc.To select the device connected with theCOMPONENT cable press the SOURCE buttonon the remote and use the▼▲keys to selectCOMPONENT and press the OK button.Option 5 VGA (15pin Sub-D)Connect a VGA cable (not supplied) from theVGA socket on the TV to the PC / Laptop.To select the PC / Laptop connected with theVGA cable press the SOURCE button on theremote and use the▼▲keys to select PC andpress the OK button.Note VGA is video only. For audio from yourPC/Laptop you need to connect a separatecable from the PC Audio (3.5mm jack) to theheadphone socket on you PC/Laptop (3.5mmjack)Option 6 USBMost USB sticks can be connected to your TVand some digital cameras may also work.Connect USB stick (not supplied) or a USBcable (not supplied) to the TV.To select the USB device connected to the TV,press the SOURCE button on the remote anduse the▼▲keys to select USB and press theOK button.Note1:Only *.jpg and *.mp3 files will work,other file types are not guaranteed and may not.Note 2. Apple iPhones and iPods are notcompatible with your TV.Note 3. When connecting any device to the USBconnection, keep the USB cable length as shortas possible.Connecting to your Haier TV
