Haier LED TV LE32C13200 Owner's Manual

Also see for LE32C13200: Owner's manual Owner's manual Service manual

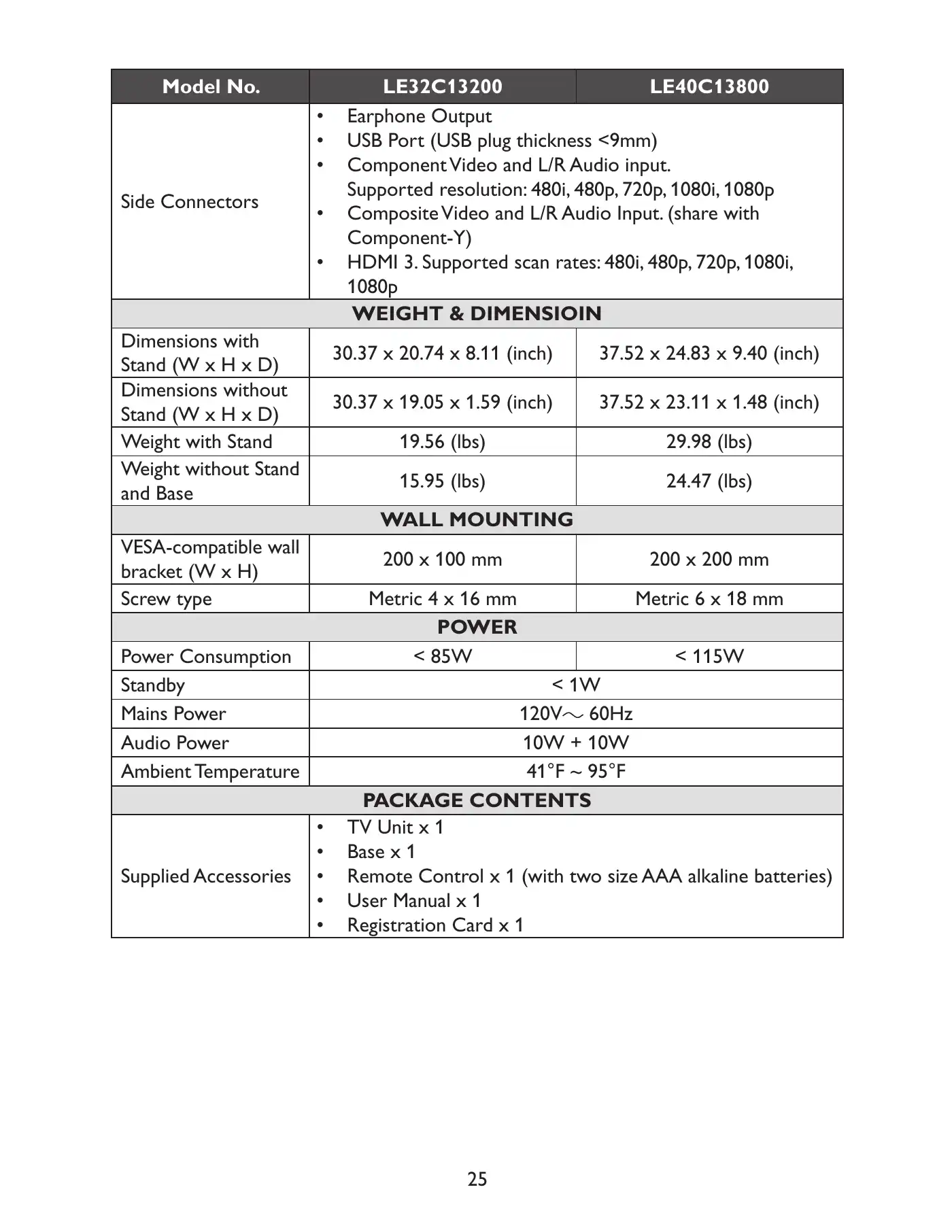

25Model No. LE32C13200 LE40C13800Side Connectors• Earphone Output• USB Port (USB plug thickness <9mm)• Component Video and L/R Audio input.Supported resolution: 480i, 480p, 720p, 1080i, 1080p• Composite Video and L/R Audio Input. (share withComponent-Y)• HDMI 3. Supported scan rates: 480i, 480p, 720p, 1080i,1080pWEIGHT & DIMENSIOINDimensions withStand (W x H x D) 30.37 x 20.74 x 8.11 (inch) 37.52 x 24.83 x 9.40 (inch)Dimensions withoutStand (W x H x D) 30.37 x 19.05 x 1.59 (inch) 37.52 x 23.11 x 1.48 (inch)Weight with Stand 19.56 (lbs) 29.98 (lbs)Weight without Standand Base 15.95 (lbs) 24.47 (lbs)WALL MOUNTINGVESA-compatible wallbracket (W x H) 200 x 100 mm 200 x 200 mmScrew type Metric 4 x 16 mm Metric 6 x 18 mmPOWERPower Consumption < 85W < 115WStandby < 1WMains Power 120V 60HzAudio Power 10W + 10WAmbient Temperature 41°F ~ 95°FPACKAGE CONTENTSSupplied Accessories• TV Unit x 1• Base x 1• Remote Control x 1 (with two size AAA alkaline batteries)• User Manual x 1• Registration Card x 1

/ 32
