Haier LEC32B1380 Service Manual

Also see for LEC32B1380: Owner's manual

Contents

Service Manual1
Table of Contents2

1 General Information2

3 Location of Controls and Components9

Haier LEC32B1380 Service Manual Manual pdf 56 page image

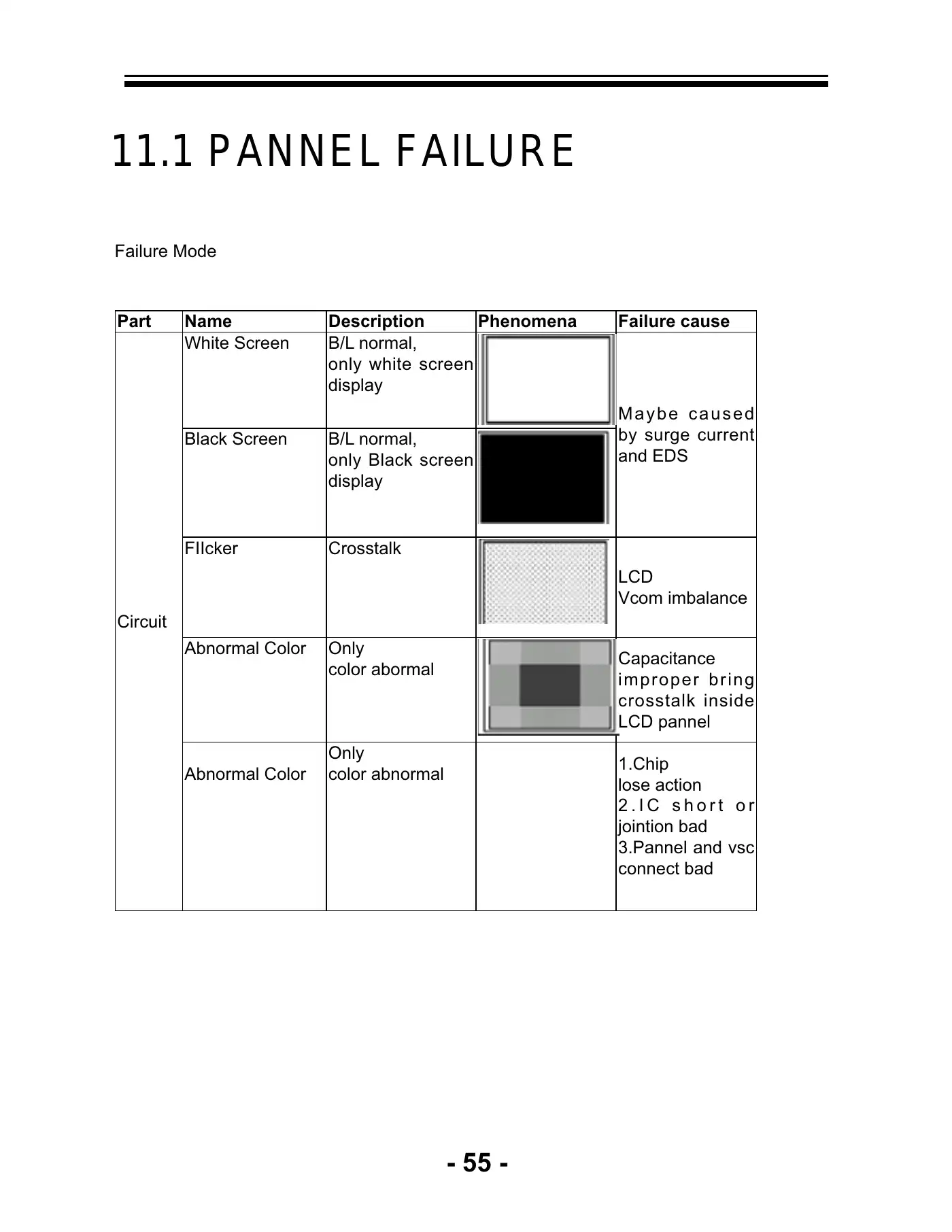

- 55 -Failure ModePart Name Description Phenomena Failure causeCircuitWhite Screen B/L normal,only white screendisplayM a y b e c a u s e dby surge currentand EDSBlack Screen B/L normal,only Black screendisplayFIIcker CrosstalkLCDVcom imbalanceAbnormal Color Onlycolor abormal Capacitanceimproper bringcrosstalk insideLCD pannelAbnormal ColorOnlycolor abnormal 1.Chiplose action2 . I C s h o r t o rjointion bad3.Pannel and vscconnect bad11.1 PANNEL FAILURE
