Haier LEC32B1380 Service Manual

Also see for LEC32B1380: Owner's manual

Contents
  1. Service Manual1
  2. Table of Contents2
  3. 1 General Information2
  4. 3 Location of Controls and Components9

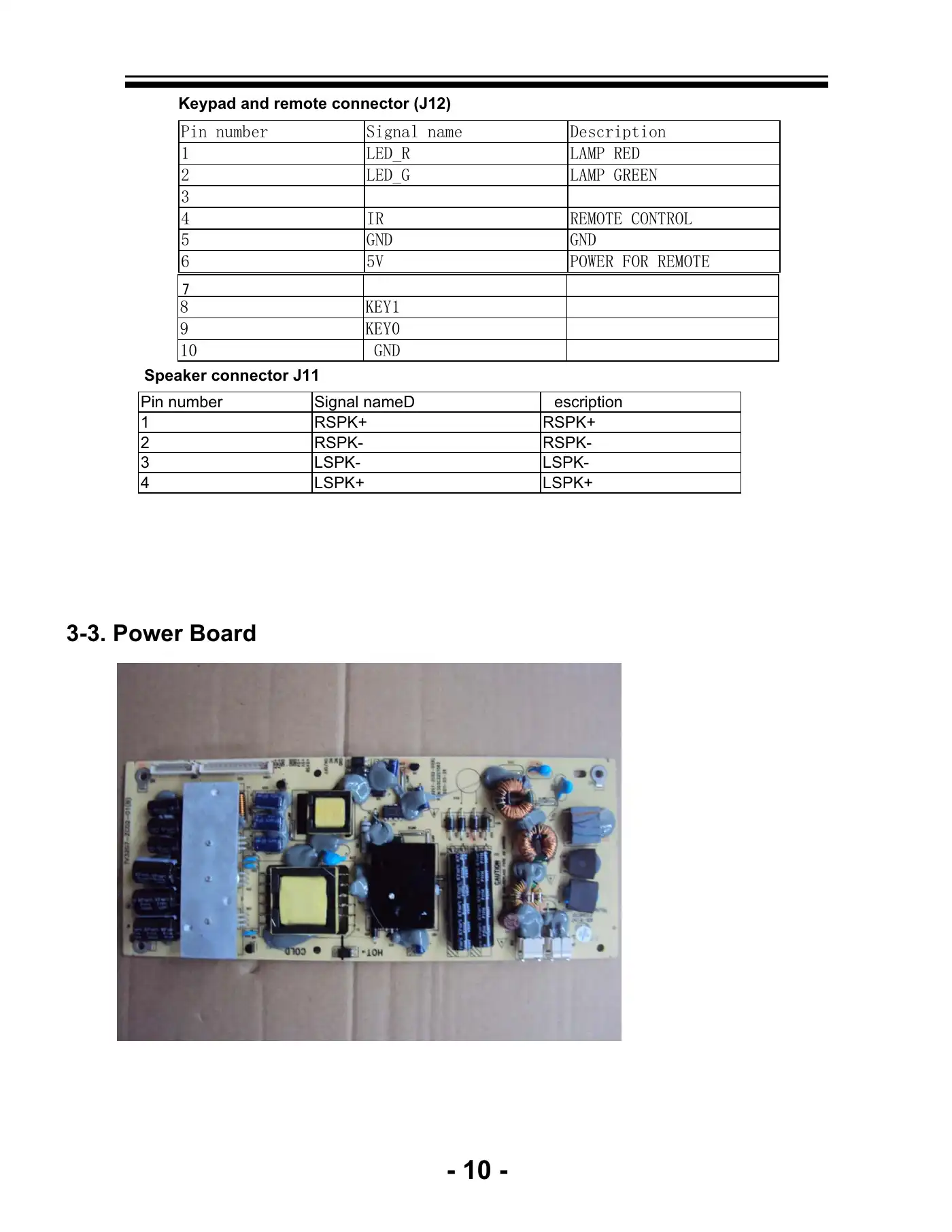

Haier LEC32B1380 Service Manual Manual pdf 11 page image
- 10 -Pin number Signal name Description1 LED_R LAMP RED2 LED_G LAMP GREEN34 IR REMOTE CONTROL5 GND GND6 5V POWER FOR REMOTE8 KEY19 KEY010 GNDKeypad and remote connector (J12)7Speaker connector J11Pin number Signal nameD escription+KPSR+KPSR1-KPSR-KPSR2-KPSL-KPSL3+KPSL+KPSL43-3. Power Board
