Haier LEC24B3320 User Manual Manual pdf 7 page image

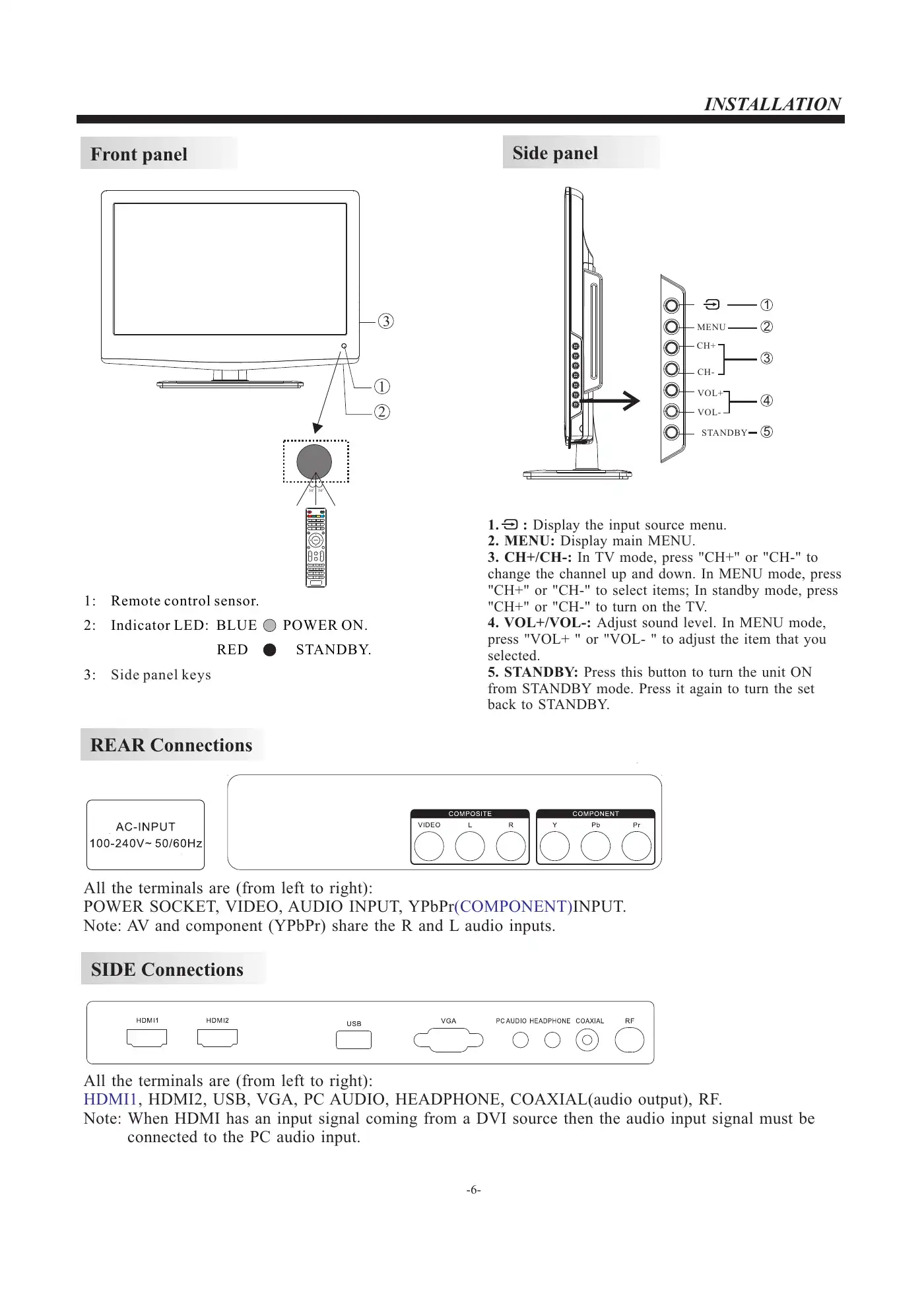

-6-INSTALLATIONFront panel Side panelREAR ConnectionsSIDE ConnectionsAll the terminals are (from left to right):, HDMI2, USB, VGA, PC AUDIO, HEADPHONE, COAXIAL(audio output), RF.Note: When HDMI has an input signal coming from a DVI source then the audio input signal must beconnected to the PC audio input.HDMI1All the terminals are (from left to right):POWER SOCKET, VIDEO, AUDIO INPUT, .Note: AV and component (YPbPr) share the R and L audio inputs.YPbPr INPUT(COMPONENT)1: Remote control sensor.2: Indicator LED: BLUE POWER ON.RED STANDBY.3: Side panel keys1. : Display the input source menu.2. MENU: Display main MENU.3. CH+/CH-: In TV mode, press "CH+" or "CH-" tochange the channel up and down. In MENU mode, press"CH+" or "CH-" to select items; In standby mode, press"CH+" or "CH-" to turn on the TV.4. VOL+/VOL-: Adjust sound level. In MENU mode,press "VOL+ " or "VOL- " to adjust the item that youselected.5. STANDBY: Press this button to turn the unit ONfrom STANDBY mode. Press it again to turn the setback to STANDBY.30 30YPbPr CC MTS VGADTVSTRENGTH TV AV HDMIEPGCH LIST FAVTVDISPLAYS.MP.M132MENUCH+CH-VOL+VOL-STANDBY12345

/ 62
