Haier LEC24B3320 Service Manual

Also see for LE19B13200: Energy guide User manual Owner's manual Owner's manual

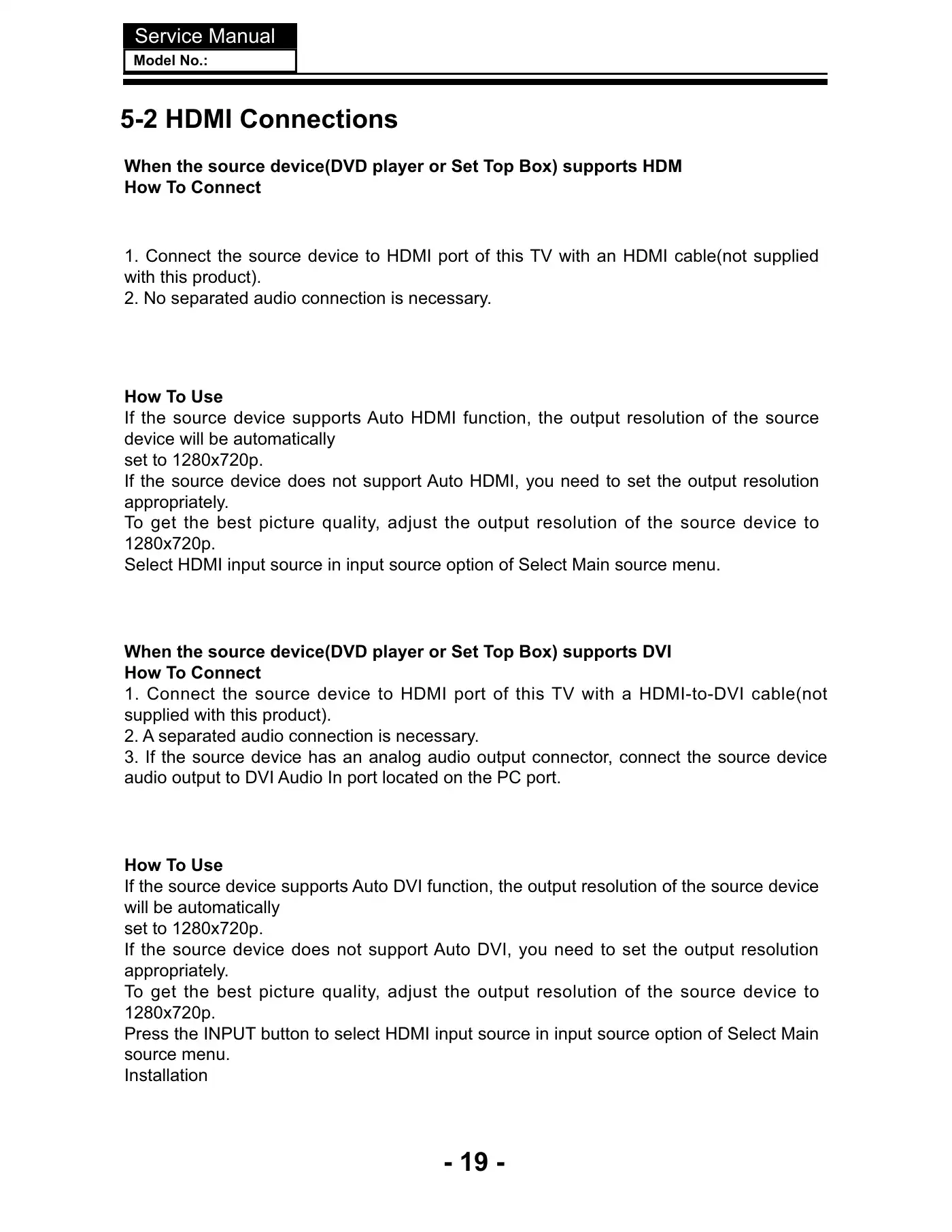

5-2 HDMI ConnectionsWhen the source device(DVD player or Set Top Box) supports HDMHow To Connect1. Connect the source device to HDMI port of this TV with an HDMI cable(not suppliedwith this product).2. No separated audio connection is necessary.How To UseIf the source device supports Auto HDMI function, the output resolution of the sourcedevice will be automaticallyset to 1280x720p.If the source device does not support Auto HDMI, you need to set the output resolutionappropriately.To get the best picture quality, adjust the output resolution of the source device to1280x720p.Select HDMI input source in input source option of Select Main source menu.When the source device(DVD player or Set Top Box) supports DVIHow To Connect1. Connect the source device to HDMI port of this TV with a HDMI-to-DVI cable(notsupplied with this product).2. A separated audio connection is necessary.3. If the source device has an analog audio output connector, connect the source deviceaudio output to DVI Audio In port located on the PC port.How To UseIf the source device supports Auto DVI function, the output resolution of the source devicewill be automaticallyset to 1280x720p.If the source device does not support Auto DVI, you need to set the output resolutionappropriately.To get the best picture quality, adjust the output resolution of the source device to1280x720p.Press the INPUT button to select HDMI input source in input source option of Select Mainsource menu.InstallationService ManualModel No.:- 19 -
