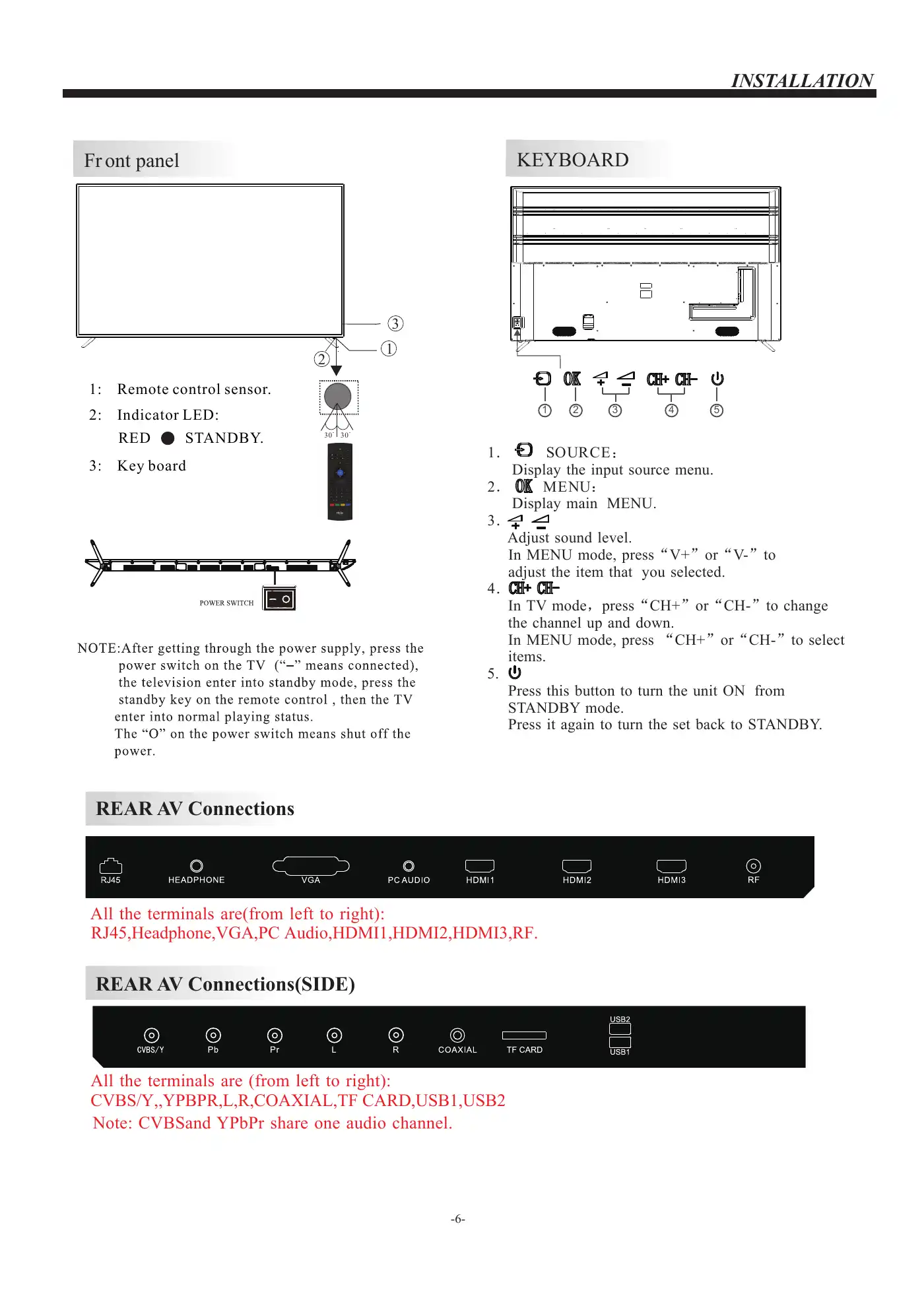

-6-INSTALLATIONREAR AV ConnectionsAll the terminals are(from left to right):RJ45,Headphone,VGA,PC Audio,HDMI1,HDMI2,HDMI3,RF.Note: CVBSand YPbPr share one audio channel.REAR AV Connections(SIDE)All the terminals are (from left to right):CVBS/Y,,YPBPR,L,R,COAXIAL,TF CARD,USB1,USB2Fr ont panel KEYBOARD1: Remote control sensor.2: Indicator LED:RED STANDBY.3: Key board30 301231 SOURCEDisplay the input source menu.2 MENUDisplay main MENU.3Adjust sound level.In MENU mode, press“V+”or“V-”toadjust the item that you selected.4In TV mode press“CH+”or“CH-”to changethe channel up and down.In MENU mode, press “CH+”or“CH-”to selectitems.5.Press this button to turn the unit ON fromSTANDBY mode.Press it again to turn the set back to STANDBY.1 2 3 4 5
