Haier LE58F3281 User Manual

Language

Haier LE58F3281 User Manual Manual pdf 14 page image

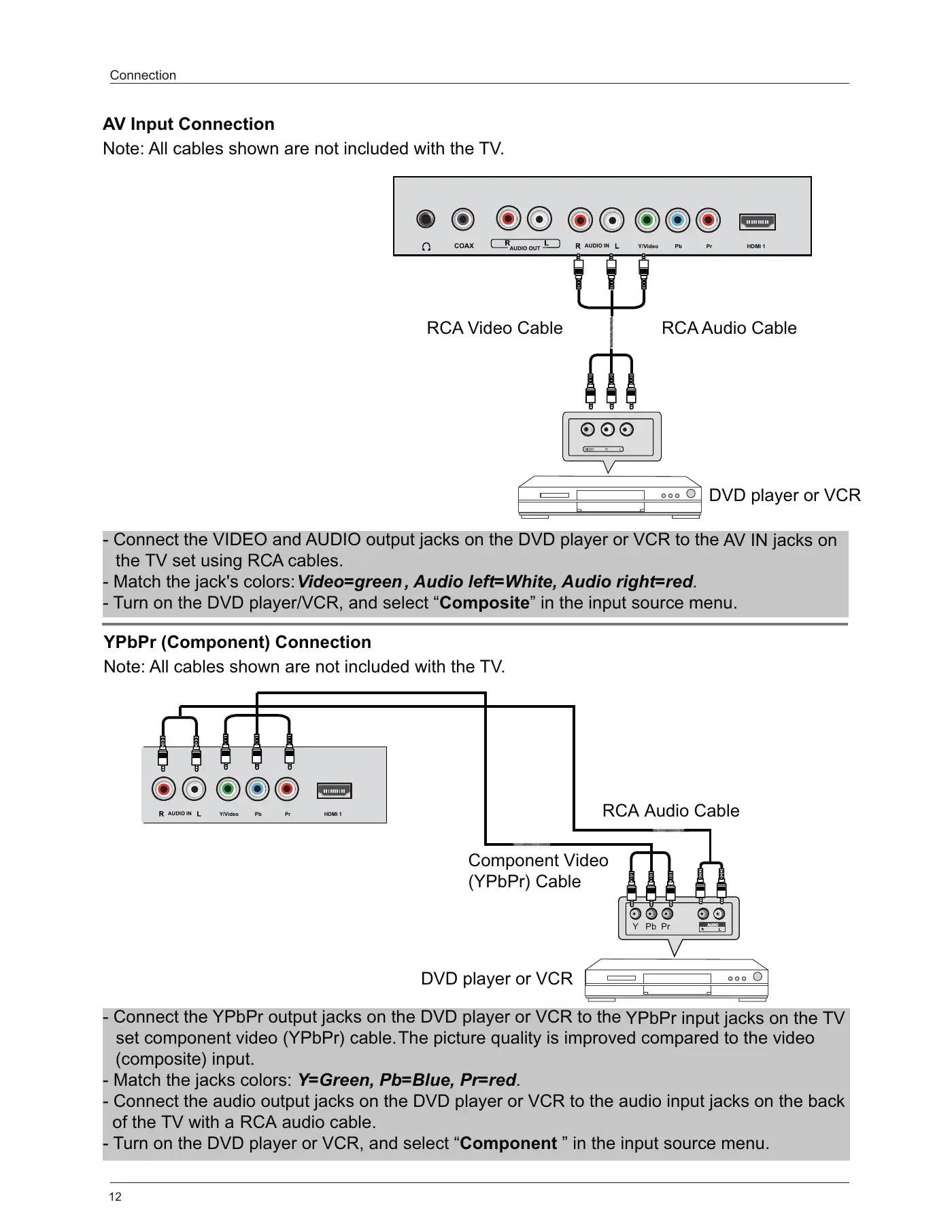

AUDIO IN Y/Video Pb Pr HDMI 1COAX AUDIO OUT AUDIO IN Y/Video Pb Pr HDMI 1AV Input ConnectionNote: All cables shown are not included with the TV.- Connect the VIDEO and AUDIO output jacks on the DVD player or VCR to the AV IN jacks onthe TV set using RCA cables.- Match the jack's colors: Video=green , Audio left=White, Audio right=red.- Turn on the DVD player/VCR, and select “Composite” in the input source menu.RCA Video Cable RCA Audio CableRCA Audio CableDVD player or VCRYPbPr (Component) ConnectionNote: All cables shown are not included with the TV.- Connect the YPbPr output jacks on the DVD player or VCR to the YPbPr input jacks on the TVset component video (YPbPr) cable. The picture quality is improved compared to the video(composite) input.- Match the jacks colors: Y=Green, Pb=Blue, Pr=red.- Connect the audio output jacks on the DVD player or VCR to the audio input jacks on the backof the TV with a RCA audio cable.- Turn on the DVD player or VCR, and select “Component ” in the input source menu.DVD player or VCRComponent Video(YPbPr) CableY Pb PrConnection12
