Haier LE58F3281 User Manual Manual pdf 12 page image

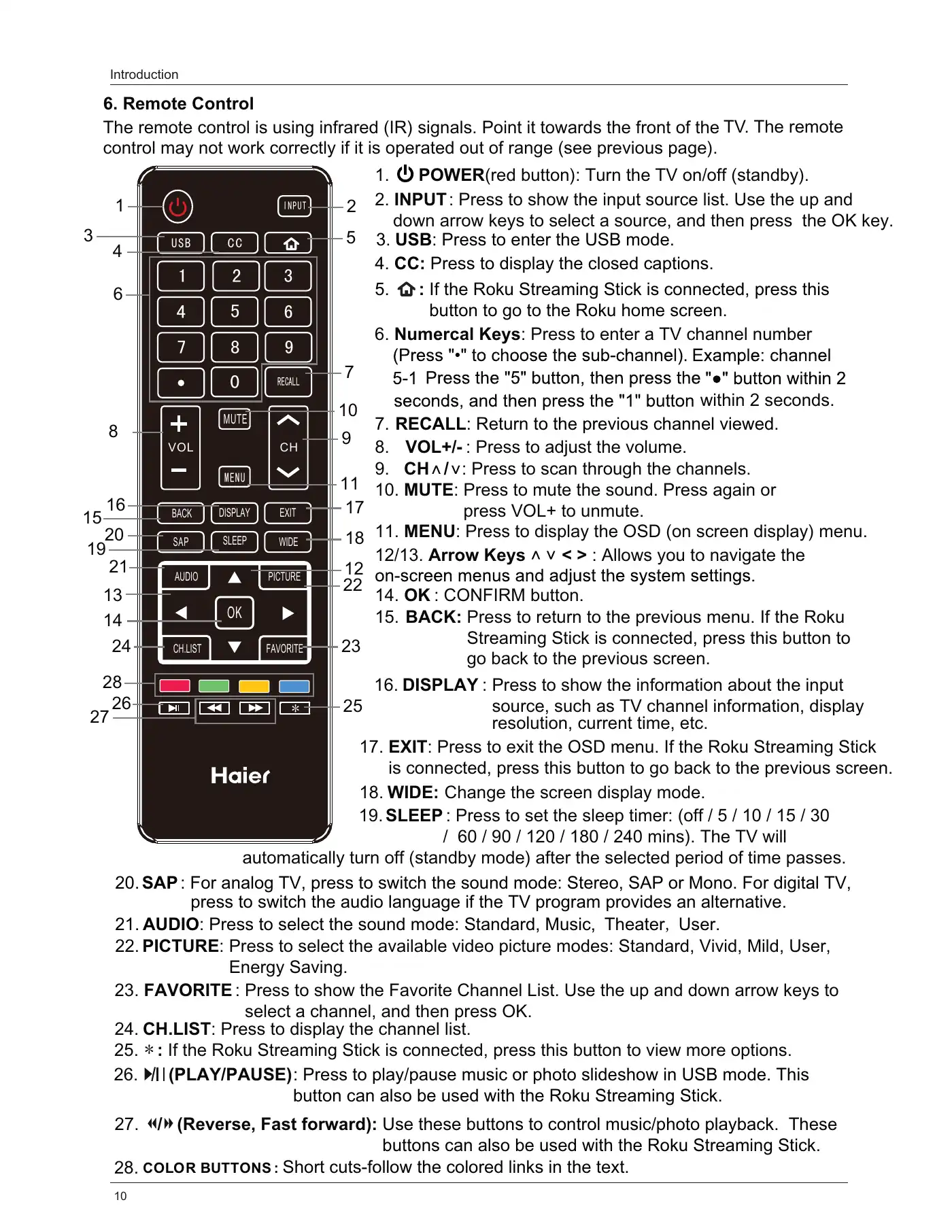

Introduction6. Remote ControlThe remote control is using infrared (IR) signals. Point it towards the front of the TV. The remotecontrol may not work correctly if it is operated out of range (see previous page).101. POWER(red button): Turn the TV on/off (standby).16. DISPLAY : Press to show the information about the inputsource, such as TV channel information, displayresolution, current time, etc.22. PICTURE: Press to select the available video picture modes: Standard, Vivid, Mild, User,Energy Saving.19. SLEEP : Press to set the sleep timer: (off / 5 / 10 / 15 / 30/ 60 / 90 / 120 / 180 / 240 mins). The TV willautomatically turn off (standby mode) after the selected period of time passes.24. CH.LIST: Press to display the channel list.6. Numercal Keys: Press to enter a TV channel numberwithin 2 seconds.2. INPUT : Press to show the input source list. Use the up anddown arrow keys to select a source, and then press the OK key.10. MUTE: Press to mute the sound. Press again orpress VOL+ to unmute.8. VOL+/- : Press to adjust the volume.9. CH / : Press to scan through the channels.11. MENU: Press to display the OSD (on screen display) menu.23. FAVORITE : Press to show the Favorite Channel List. Use the up and down arrow keys toselect a channel, and then press OK.12/13. Arrow Keys < > : Allows you to navigate the14. OK : CONFIRM button.17. EXIT: Press to exit the OSD menu. If the Roku Streaming Stickis connected, press this button to go back to the previous screen.26. (PLAY/PAUSE): Press to play/pause music or photo slideshow in USB mode. Thisbutton can also be used with the Roku Streaming Stick.27. / (Reverse, Fast forward): Use these buttons to control music/photo playback. Thesebuttons can also be used with the Roku Streaming Stick.4. CC: Press to display the closed captions.5. : If the Roku Streaming Stick is connected, press thisbutton to go to the Roku home screen.20. SAP : For analog TV, press to switch the sound mode: Stereo, SAP or Mono. For digital TV,press to switch the audio language if the TV program provides an alternative.21. AUDIO: Press to select the sound mode: Standard, Music,Theater User.7. RECALL: Return to the previous channel viewed.3. USB: Press to enter the USB mode.&&86%,13875(&$// VOL CH0(18AUDIOBACKCH.LISTOKFAVORITEEXITSAP SLEEP WIDEPICTUREDISPLAYMUTE1223 52120196211109814177426271624 231818. WIDE: Change the screen display mode.15. BACK: Press to return to the previous menu. If the RokuStreaming Stick is connected, press this button togo back to the previous screen.1525. : If the Roku Streaming Stick is connected, press this button to view more options.28. COLOR BUTTONS : Short cuts-follow the colored links in the text.25281213

/ 84
