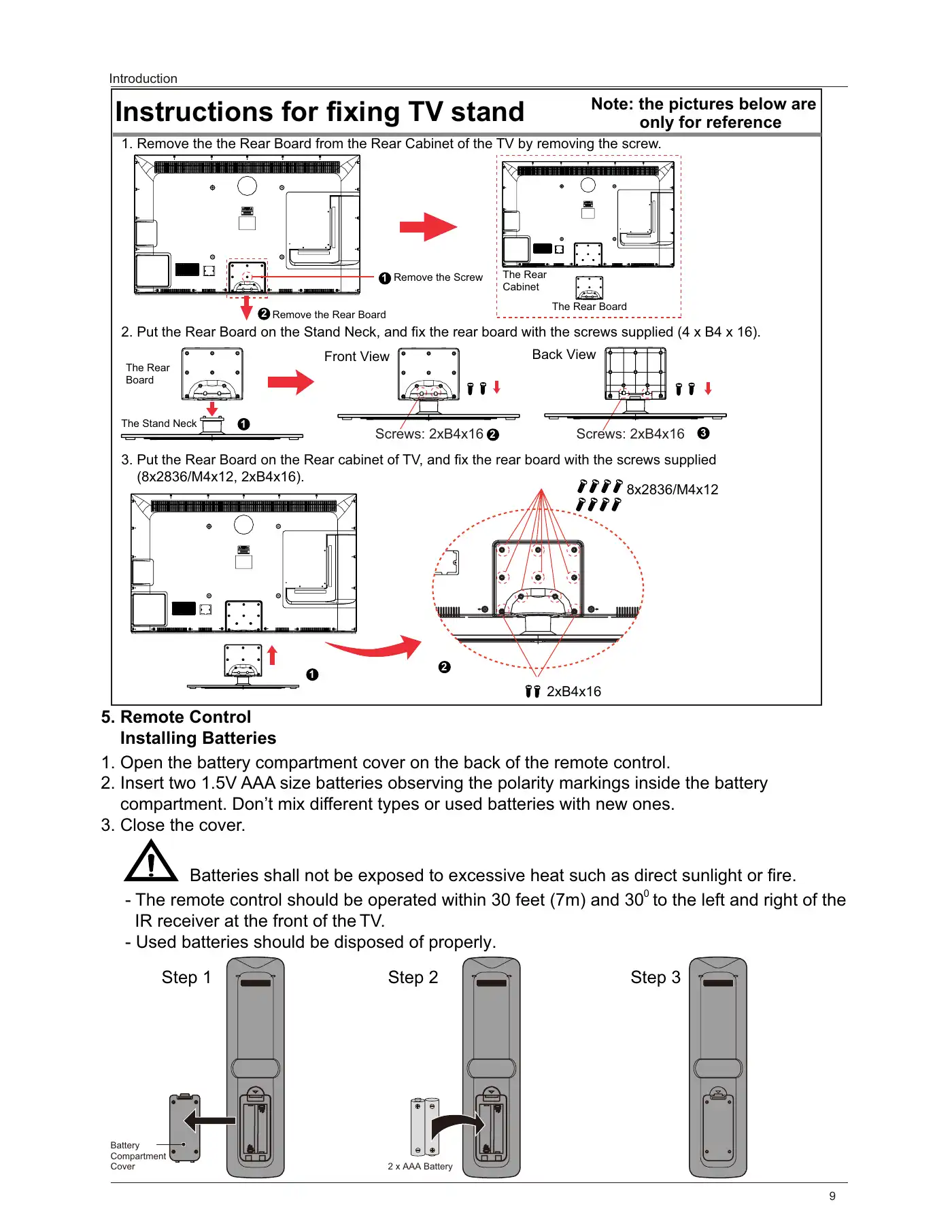

Introduction5. Remote ControlInstalling Batteries1. Open the battery compartment cover on the back of the remote control.2. Insert two 1.5V AAA size batteries observing the polarity markings inside the batterycompartment. Don’t mix di3petS2petS1petSfferent types or used batteries with new ones.3. Close the cover.- The remote control should be operated within 30 feet (7m) and 300 to the left and right of theIR receiver at the front of the TV.- Used batteries should be disposed of properly.BatteryCompartmentCover 2 x AAA Battery9Batteries shall not be exposed to excessive heat such as direct sunlight or fire.Instructions for fixing TV stand1. Remove the the Rear Board from the Rear Cabinet of the TV by removing the screw.The Rear BoardThe RearBoardThe Stand NeckThe RearCabinet2. Put the Rear Board on the Stand Neck, and fix the rear board with the screws supplied (4 x B4 x 16).3. Put the Rear Board on the Rear cabinet of TV, and fix the rear board with the screws supplied(8x2836/M4x12, 2xB4x16).Front View Back ViewRemove the Screw1211 23Remove the Rear Board2Screws: 2xB4x16 Screws: 2xB4x168x2836/M4x122xB4x16Note: the pictures below areonly for reference
