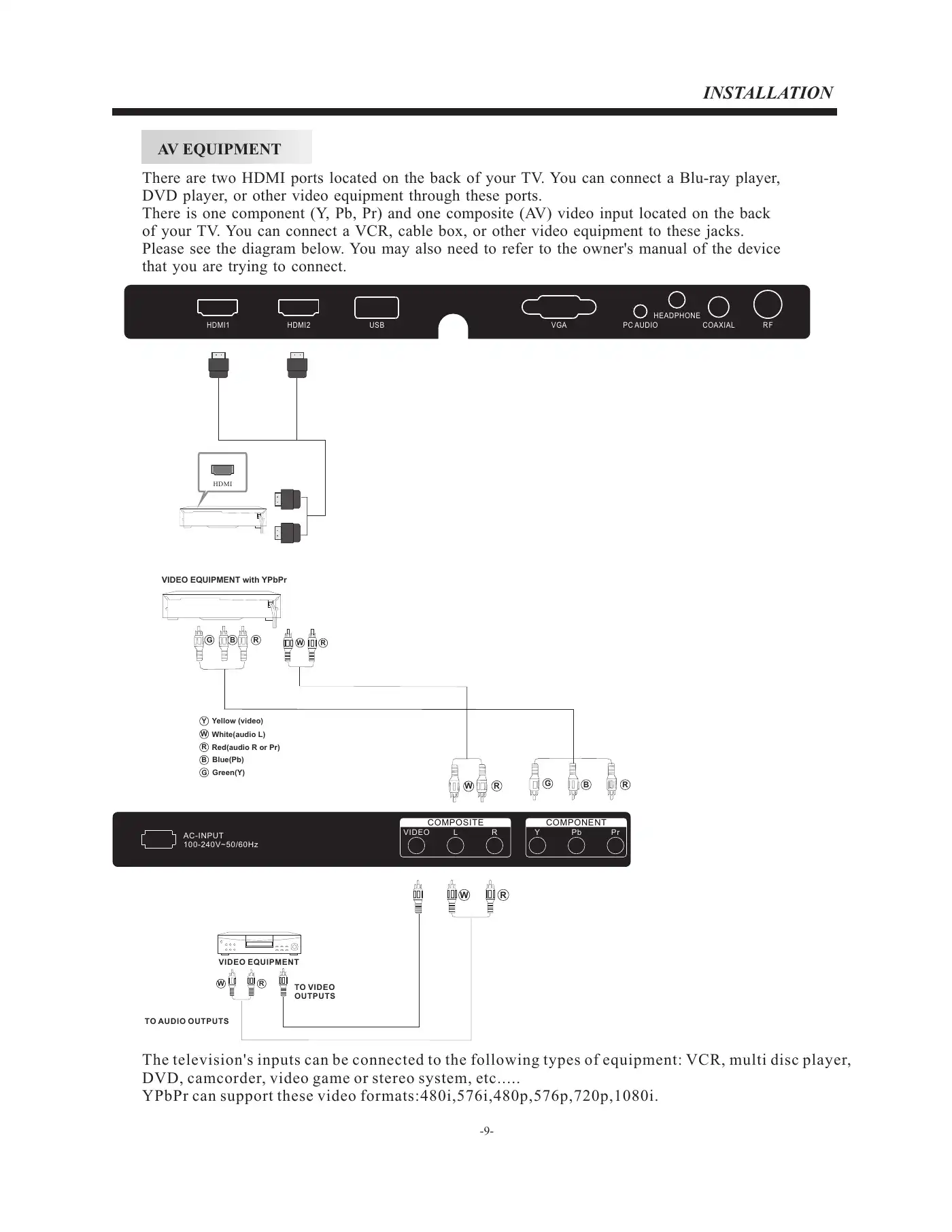

INSTALLATION-9-AV EQUIPMENTThere are two HDMI ports located on the back of your TV. You can connect a Blu-ray player,DVD player, or other video equipment through these ports.There is one component (Y, Pb, Pr) and one composite (AV) video input located on the backof your TV. You can connect a VCR, cable box, or other video equipment to these jacks.Please see the diagram below. You may also need to refer to the owner's manual of the devicethat you are trying to connect.HDMIThe television's inputs can be connected to the following types of equipment: VCR, multi disc player,DVD, camcorder, video game or stereo system, etc.....YPbPr can support these video formats:480i,576i,480p,576p,720p,1080i.Yellow (video)White(audio L)Red(audio R or Pr)YWRW RG B RBlue(Pb)Green(Y)BGVIDEO EQUIPMENT with YPbPrW RG B RW RW RTO AUDIO OUTPUTSVIDEO EQUIPMENTTO VIDEOOUTPUTSHDMI1 HDMI2 USB VGA PC AUDIOHEADPHONECOAXIAL R FAC-INPUT100-240V~50/60HzVIDEO L R Y Pb PrCOMPOSITE COMPONENT
