Haier LE46D10F User Manual

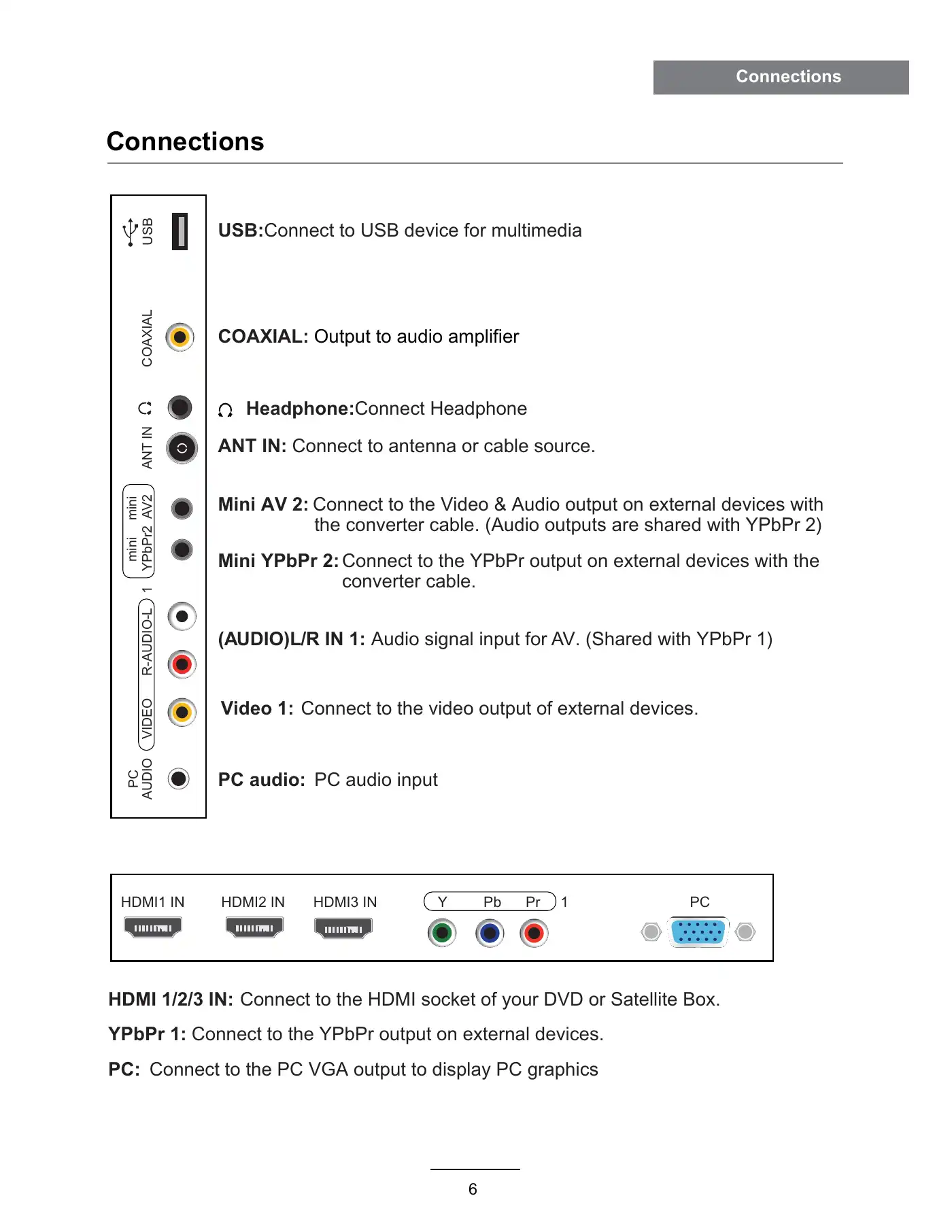

Connections6PC: Connect to the PC VGA output to display PC graphicsUSB:Connect to USB device for multimediaHDMI 1/2/3 IN: Connect to the HDMI socket of your DVD or Satellite Box.PC audio: PC audio inputVideo 1: Connect to the video output of external devices.Mini YPbPr 2: Connect to the YPbPr output on external devices with theconverter cable.YPbPr 1: Connect to the YPbPr output on external devices.Mini AV 2: Connect to the Video & Audio output on external devices withthe converter cable. (Audio outputs are shared with YPbPr 2)ANT IN: Connect to antenna or cable source.COAXIAL: Output to audio amplifierHeadphone:Connect Headphone(AUDIO)L/R IN 1: Audio signal input for AV. (Shared with YPbPr 1)ConnectionsHDMI1 IN HDMI2 IN HDMI3 IN Y Pb Pr 1 PCAUDIO VIDEO R-AUDIO-L 1 YPbPr2 AV2 ANT IN COAXIALmini miniUSBPC

/ 23
