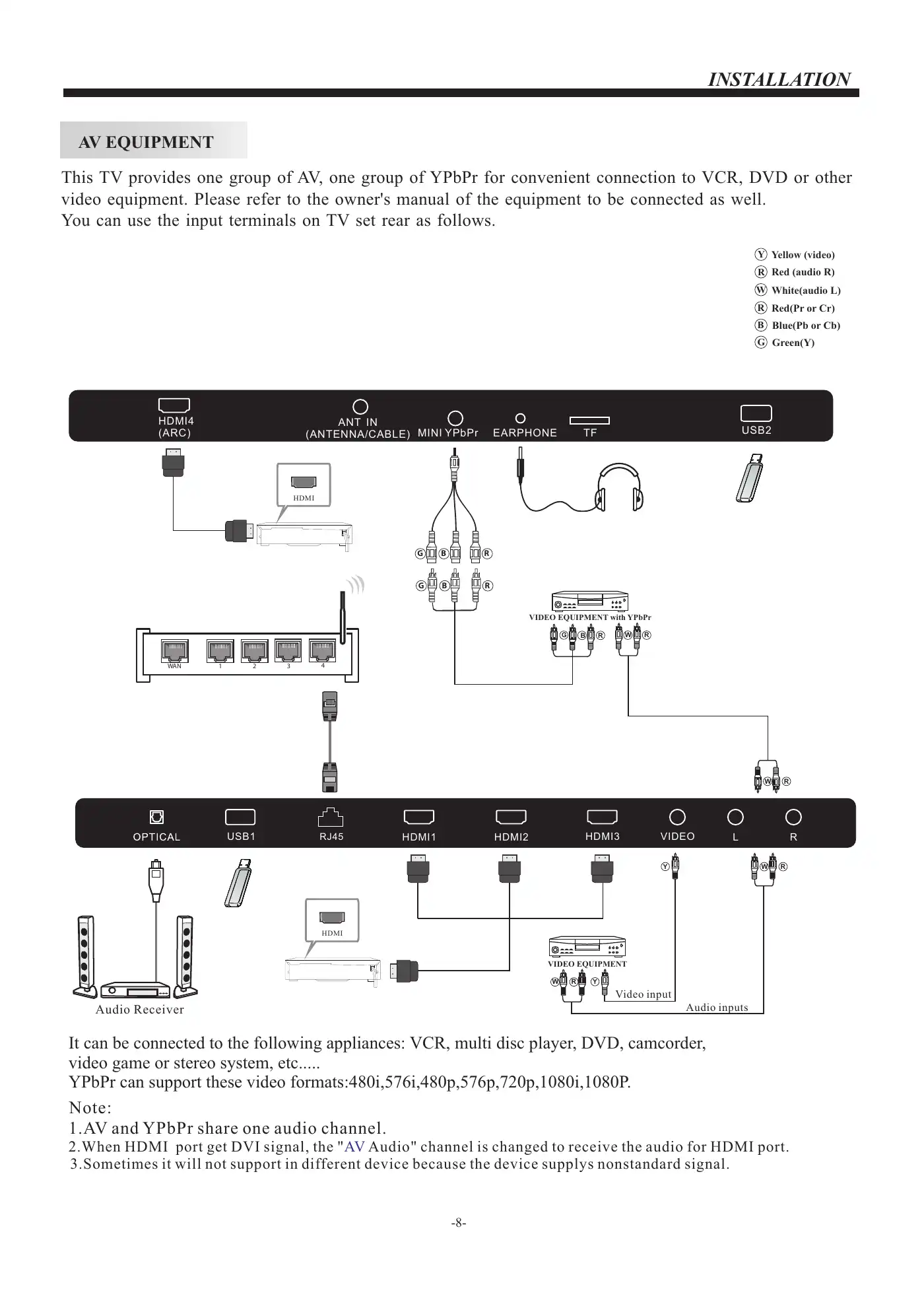

INSTALLATION-8-It can be connected to the following appliances: VCR, multi disc player, DVD, camcorder,video game or stereo system, etc.....YPbPr can support these video formats:480i,576i,480p,576p,720p,1080i,1080P.This TV provides one group of AV, one group of YPbPr for convenient connection to VCR, DVD or othervideo equipment. Please refer to the owner's manual of the equipment to be connected as well.You can use the input terminals on TV set rear as follows.AV EQUIPMENT1.AV and YPbPr share one audio channel.2.When HDMI port get DVI signal, the " Audio" channel is changed to receive the audio for HDMI port.3.Sometimes it will not support in different device because the device supplys nonstandard signal.AVNote:HDMIRed (audio R)White(audio L)Red(Pr or Cr)RWRBlue(Pb or Cb)Green(Y)BGYellow (video)Y1WAN 2 3 4Audio ReceiverVIDEO EQUIPMENT with YPbPrG B RVIDEO EQUIPMENTYW RW RYHDMI4(ARC) MINI YPbPr TF USB2EARPHONEANT IN(ANTENNA/CABLE)USB1 HDMI1 HDMI2 HDMI3 VIDEO L RRJ45W RHDMIW RG B RG B RAudio inputsVideo input
