Haier LE42U6500TF Service Manual

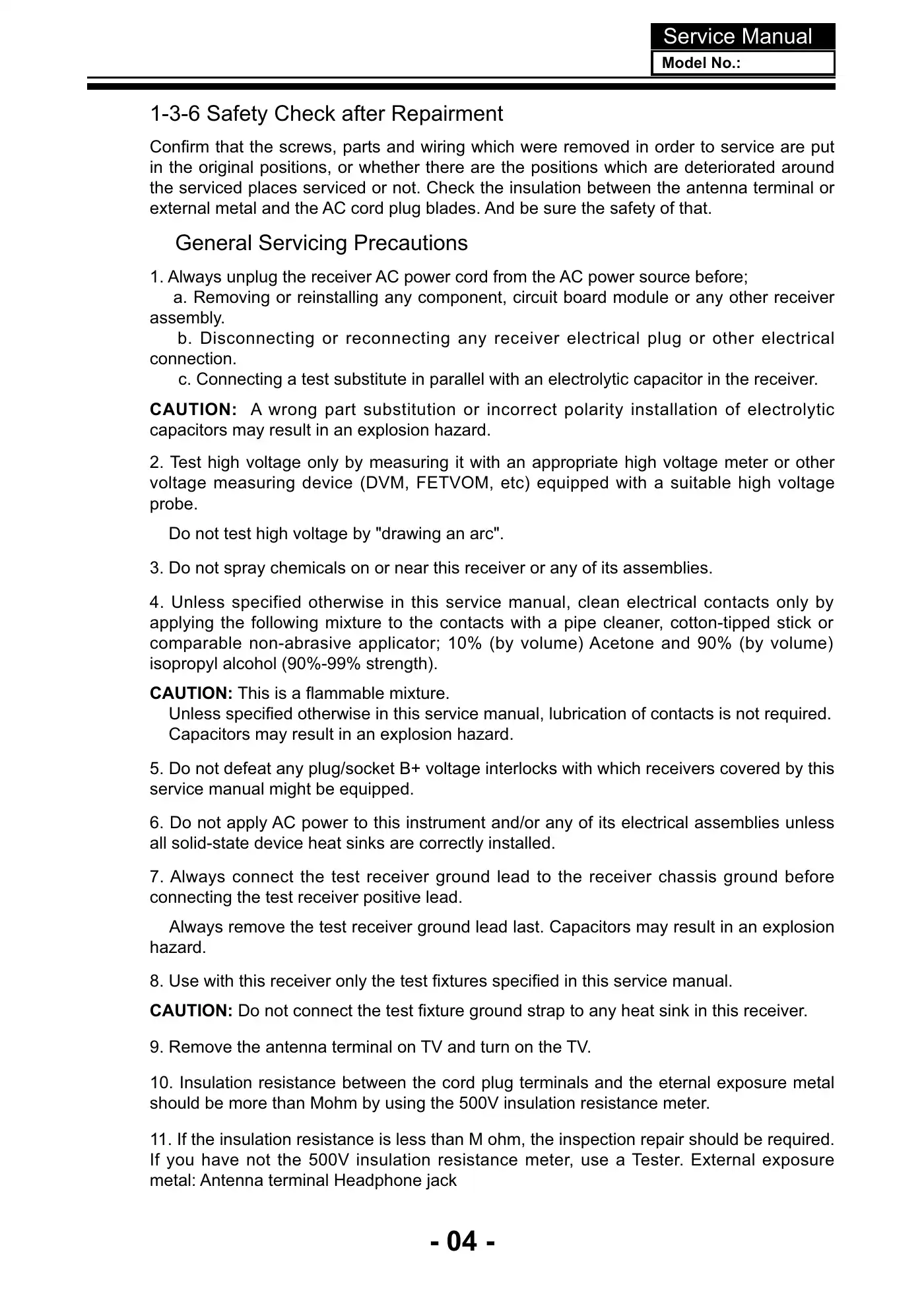

1-3-6 Safety Check after Repairment- 04 -Service ManualModel No.:&RQ¿UPWKDWWKHVFUHZVSDUWVDQGZLULQJZKLFKZHUHUHPRYHGLQRUGHUWRVHUYLFHDUHSXWin the original positions, or whether there are the positions which are deteriorated aroundthe serviced places serviced or not. Check the insulation between the antenna terminal orexternal metal and the AC cord plug blades. And be sure the safety of that.General Servicing Precautions1. Always unplug the receiver AC power cord from the AC power source before;a. Removing or reinstalling any component, circuit board module or any other receiverassembly.b. Disconnecting or reconnecting any receiver electrical plug or other electricalconnection.c. Connecting a test substitute in parallel with an electrolytic capacitor in the receiver.CAUTION: A wrong part substitution or incorrect polarity installation of electrolyticcapacitors may result in an explosion hazard.2. Test high voltage only by measuring it with an appropriate high voltage meter or othervoltage measuring device (DVM, FETVOM, etc) equipped with a suitable high voltageprobe.Do not test high voltage by "drawing an arc".5. Do not defeat any plug/socket B+ voltage interlocks with which receivers covered by thisservice manual might be equipped.8VHZLWKWKLVUHFHLYHURQO\WKHWHVW¿[WXUHVVSHFL¿HGLQWKLVVHUYLFHPDQXDOCAUTION: 'RQRWFRQQHFWWKHWHVW¿[WXUHJURXQGVWUDSWRDQ\KHDWVLQNLQWKLVUHFeiver.3. Do not spray chemicals on or near this receiver or any of its assemblies.4. Unless specified otherwise in this service manual, clean electrical contacts only byapplying the following mixture to the contacts with a pipe cleaner, cotton-tipped stick orcomparable non-abrasive applicator; 10% (by volume) Acetone and 90% (by volume)isopropyl alcohol (90%-99% strength).CAUTION:7KLVLVDÀDPPDEOHPL[WXUH8QOHVVVSHFL¿HGRWKHUZLVHLQWKLVVHUYLFHPDQXDOOXEULFDWLRQRIFRQWDFWVLVQRWUHTXLUHGCapacitors may result in an explosion hazard.6. Do not apply AC power to this instrument and/or any of its electrical assemblies unlessall solid-state device heat sinks are correctly installed.7. Always connect the test receiver ground lead to the receiver chassis ground beforeconnecting the test receiver positive lead.Always remove the test receiver ground lead last. Capacitors may result in an explosionhazard.9. Remove the antenna terminal on TV and turn on the TV.10. Insulation resistance between the cord plug terminals and the eternal exposure metalshould be more than Mohm by using the 500V insulation resistance meter.11. If the insulation resistance is less than M ohm, the inspection repair should be required.If you have not the 500V insulation resistance meter, use a Tester. External exposuremetal: Antenna terminal Headphone jack

/ 56

Questions and answers

Need help?

Ask question about this manual

Frequently asked questions

The Haier LE42U6500TF TV supports aerial connections with IEC(female) and has an input impedance of 75 unbalanced.

To connect a DVD player or Set Top Box to the Haier LE42U6500TF TV using HDMI, follow these steps: 1. Connect the source device to the HDMI port of the TV using an HDMI cable (not supplied with the product). 2. No separate audio connection is necessary. To use, select the HDMI input source in the input source option of the Select Main source menu. If the source device supports Auto HDMI, the output resolution will be automatically set to 1280x720p. If not, adjust the output resolution of the source device to 1280x720p for the best picture quality.

To connect a source device with DVI output to the Haier LE42U6500TF TV, follow these steps: 1. Connect the source device to the HDMI port of the TV using an HDMI-to-DVI cable (not supplied with the product). 2. A separate audio connection is necessary. If the source device has an analog audio output connector, connect the source device audio output to the DVI Audio In port located on the PC port. To use, press the INPUT button to select the HDMI input source in the input source option of the Select Main source menu. If the source device supports Auto DVI, the output resolution will be automatically set to 1280x720p. If not, adjust the output resolution of the source device to 1280x720p for the best picture quality.

To change the input source, press the 'SOURCE' button on the front panel or the remote control. This will display the input source menu, allowing you to select the desired input source.

To adjust the volume, use the 'V+' or 'V-' buttons on the front panel or the remote control. These buttons will increase or decrease the sound level, respectively.

The 'Connection Wire(For Speaker)' is used to connect the speakers to the TV panel.

The 'Connection Wire(Power For Panel)' is used to connect the power to the TV panel.

To perform an auto tuning for DVB-C channels, press the MENU button and navigate to the CHANNEL menu. Select Auto Tuning, then choose DVB-C as the tuning type. Select the scan type/symbol (Ks/S) and confirm. The TV will start tuning and display the progress. You can skip ATV tuning by pressing the MENU button and selecting YES to confirm.

After performing an auto tuning, all the stored channels will disappear. The TV will then skip to the first DTV channel. If you wish to modify the preset order or rename channels, you can select Programme Edit under the channel menu.

To enter the hotel mode, press 'source-1-0-0-1' on your remote control. To exit the hotel mode, press the 'exit' key.
