Haier LE42U6500TF Service Manual

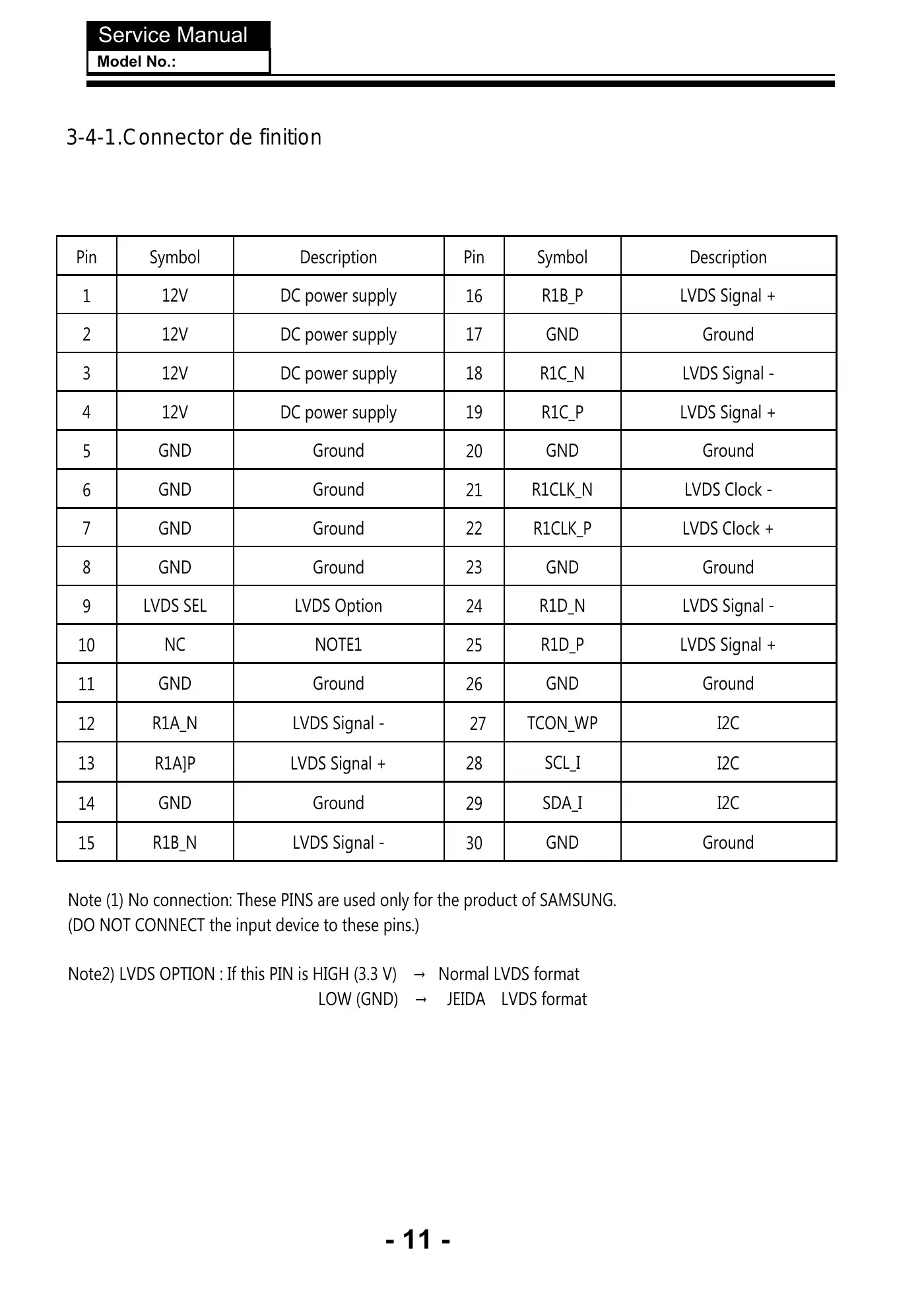

Service ManualModel No.:- 11 -3-4-1.Connector de finitionPin Symbol Description Pin Symbol Description1 12V DC power supply 16 R1B_P LVDS Signal +2 12V DC power supply 17 GND Ground3 12V DC power supply 18 R1C_N LVDS Signal -4 12V DC power supply 19 R1C_P LVDS Signal +5 GND Ground 20 GND Ground6 GND Ground 21 R1CLK_N LVDS Clock -7 GND Ground 22 R1CLK_P LVDS Clock +8 GND Ground 23 GND Ground9 LVDS SEL LVDS Option 24 R1D_N LVDS Signal -10 NC NOTE1 25 R1D_P LVDS Signal +11 GND Ground 26 GND Ground12 R1A_N LVDS Signal - 27 TCON_WP I2C13 R1A]P LVDS Signal + 28 SCL_I I2C14 GND Ground 29 SDA_I I2C15 R1B_N LVDS Signal - 30 GND GroundNote (1) No connection: These PINS are used only for the product of SAMSUNG.(DO NOT CONNECT the input device to these pins.)Note2) LVDS OPTION : If this PIN is HIGH (3.3 V) → Normal LVDS formatLOW (GND) → JEIDA LVDS format

/ 56

Questions and answers

Need help?

Ask question about this manual

Frequently asked questions

The Haier LE42U6500TF TV supports aerial connections with IEC(female) and has an input impedance of 75 unbalanced.

To connect a DVD player or Set Top Box to the Haier LE42U6500TF TV using HDMI, follow these steps: 1. Connect the source device to the HDMI port of the TV using an HDMI cable (not supplied with the product). 2. No separate audio connection is necessary. To use, select the HDMI input source in the input source option of the Select Main source menu. If the source device supports Auto HDMI, the output resolution will be automatically set to 1280x720p. If not, adjust the output resolution of the source device to 1280x720p for the best picture quality.

To connect a source device with DVI output to the Haier LE42U6500TF TV, follow these steps: 1. Connect the source device to the HDMI port of the TV using an HDMI-to-DVI cable (not supplied with the product). 2. A separate audio connection is necessary. If the source device has an analog audio output connector, connect the source device audio output to the DVI Audio In port located on the PC port. To use, press the INPUT button to select the HDMI input source in the input source option of the Select Main source menu. If the source device supports Auto DVI, the output resolution will be automatically set to 1280x720p. If not, adjust the output resolution of the source device to 1280x720p for the best picture quality.

To change the input source, press the 'SOURCE' button on the front panel or the remote control. This will display the input source menu, allowing you to select the desired input source.

To adjust the volume, use the 'V+' or 'V-' buttons on the front panel or the remote control. These buttons will increase or decrease the sound level, respectively.

The 'Connection Wire(For Speaker)' is used to connect the speakers to the TV panel.

The 'Connection Wire(Power For Panel)' is used to connect the power to the TV panel.

To perform an auto tuning for DVB-C channels, press the MENU button and navigate to the CHANNEL menu. Select Auto Tuning, then choose DVB-C as the tuning type. Select the scan type/symbol (Ks/S) and confirm. The TV will start tuning and display the progress. You can skip ATV tuning by pressing the MENU button and selecting YES to confirm.

After performing an auto tuning, all the stored channels will disappear. The TV will then skip to the first DTV channel. If you wish to modify the preset order or rename channels, you can select Programme Edit under the channel menu.

To enter the hotel mode, press 'source-1-0-0-1' on your remote control. To exit the hotel mode, press the 'exit' key.
