Haier LE42B1380 Owner's Manual Manual pdf 15 page image

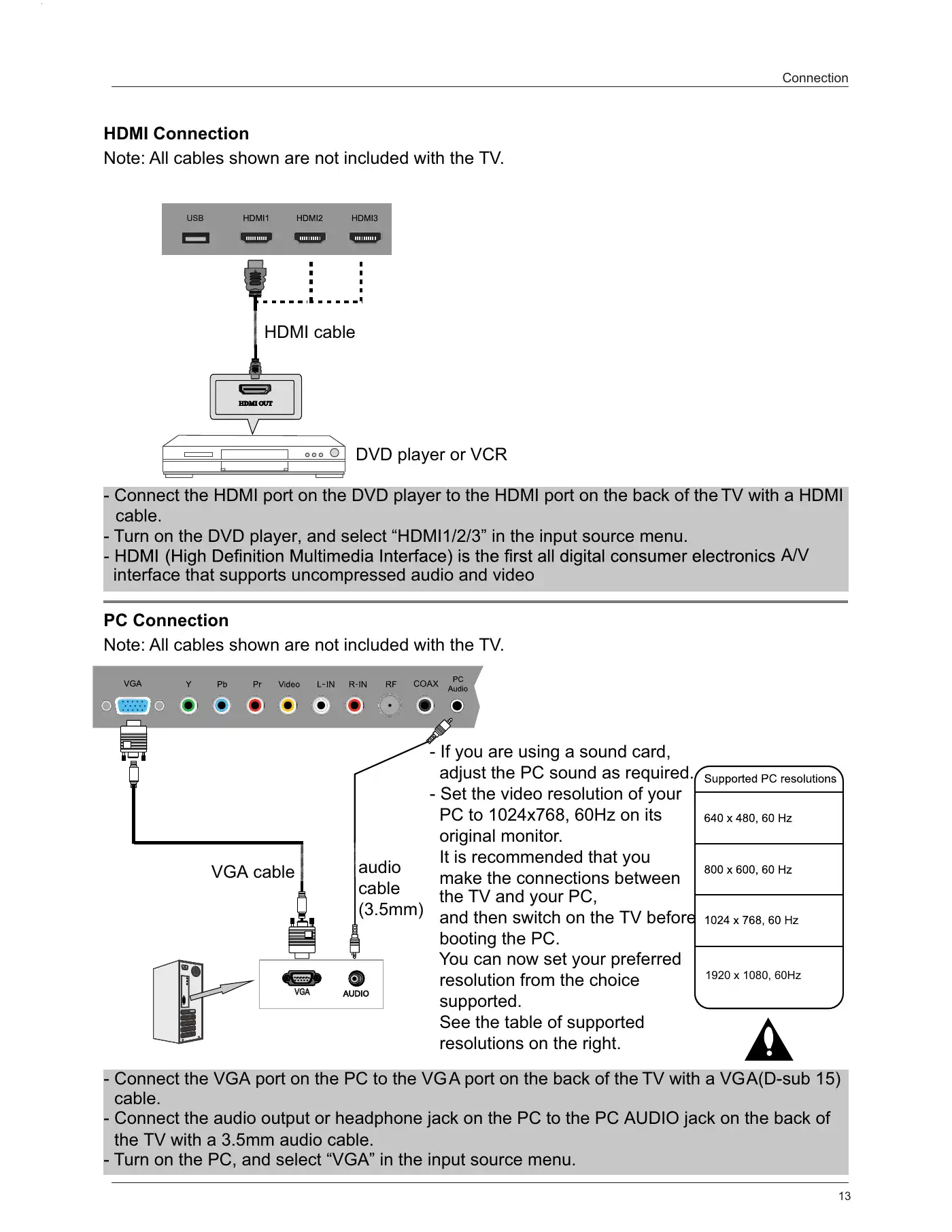

HDMI ConnectionPC ConnectionNote: All cables shown are not included with the TV.Note: All cables shown are not included with the TV.DVD player or VCR- Connect the HDMI port on the DVD player to the HDMI port on the back of the TV with a HDMI- Turn on the DVD player, and select “HDMI1/2/3” in the input source menu.A/Vinterface that supports uncompressed audio and video- Connect the VGA port on the PC to the VG A port on the back of the TV with a VGA(D-sub 15)cable.- Connect the audio output or headphone jack on the PC to the PC AUDIO jack on the back ofthe TV with a 3.5mm audio cable.- Turn on the PC, and select “VGA” in the input source menu.- If you are using a sound card,adjust the PC sound as required.- Set the video resolution of yourPC to 1024x768, 60Hz on itsoriginal monitor.It is recommended that youmake the connections betweenthe TV and your PC,and then switch on the TV beforebooting the PC.You can now set your preferredresolution from the choicesupported.See the table of supportedresolutions on the right.1920 x 1080, 60HzHDMI cableVGA cable audiocable(3.5mm)Connection13cable.VGAUSBIN IN COAX
