Haier LE42B1380 Owner's Manual Manual pdf 11 page image

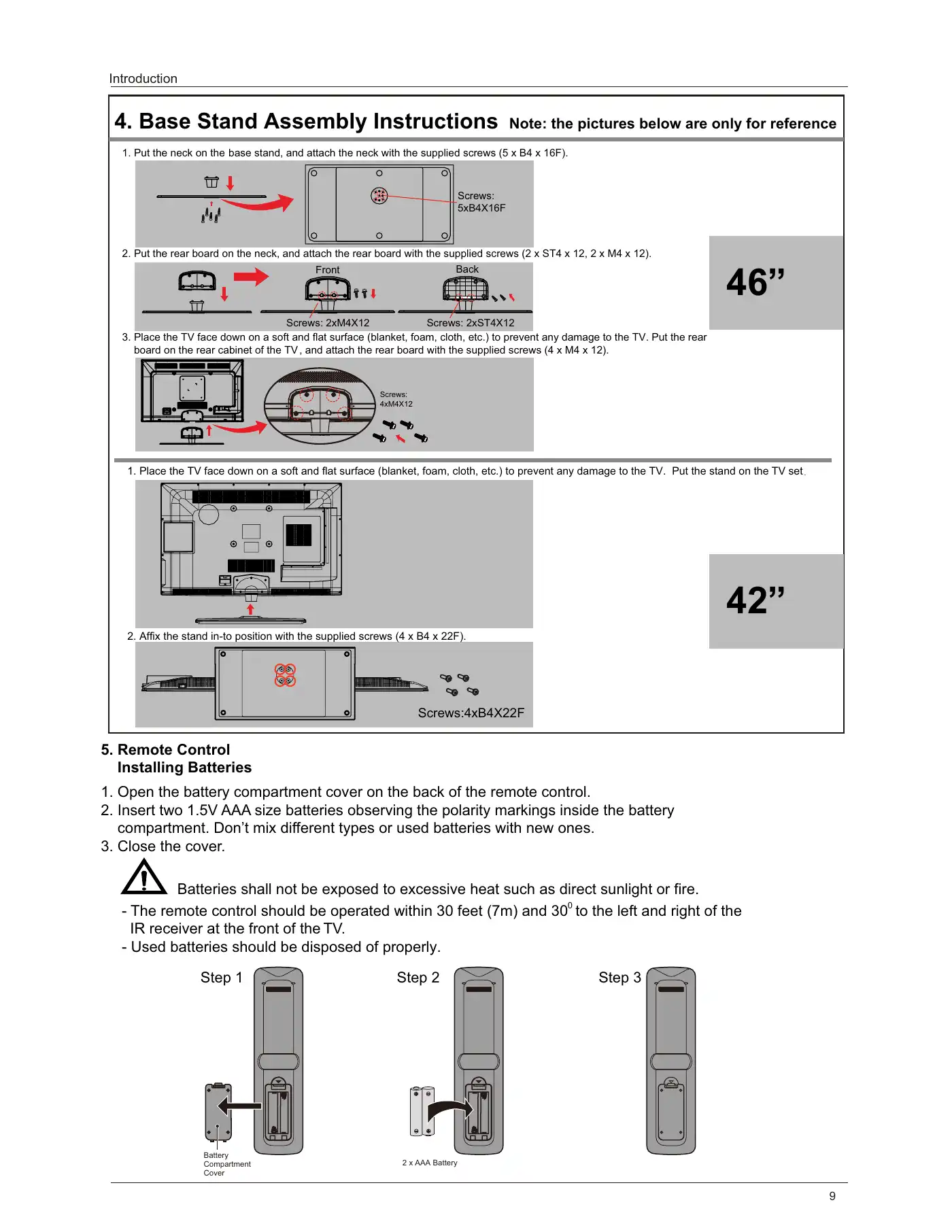

Introduction5. Remote ControlInstalling Batteries1. Open the battery compartment cover on the back of the remote control.2. Insert two 1.5V AAA size batteries observing the polarity markings inside the batterycompartment. Don’t mix di3petS2petS1petSfferent types or used batteries with new ones.3. Close the cover.- The remote control should be operated within 30 feet (7m) and 300 to the left and right of theIR receiver at the front of the TV.- Used batteries should be disposed of properly.BatteryCompartmentCover2 x AAA Battery94. Base Stand Assembly Instructions Note: the pictures below are only for referenceBatteries shall not be exposed to excessive heat such as direct sunlight or fire.1. Put the neck on the base stand, and attach the neck with the supplied screws (5 x B4 x 16F).2. Put the rear board on the neck, and attach the rear board with the supplied screws (2 x ST4 x 12, 2 x M4 x 12).3. Place the TV face down on a soft and flat surface (blanket, foam, cloth, etc.) to prevent any damage to the TV. Put the rearboard on the rear cabinet of the TV , and attach the rear board with the supplied screws (4 x M4 x 12).Screws:5xB4X16FScrews: 2xM4X12Screws:4xM4X12Screws: 2xST4X12Front Back1. Place the TV face down on a soft and flat surface (blanket, foam, cloth, etc.) to prevent any damage to the TV. Put the stand on the TV set2. Affix the stand in-to position with the supplied screws (4 x B4 x 22F).Screws:4xB4X22F46”42”
