Haier LE40U5000TF Service Manual

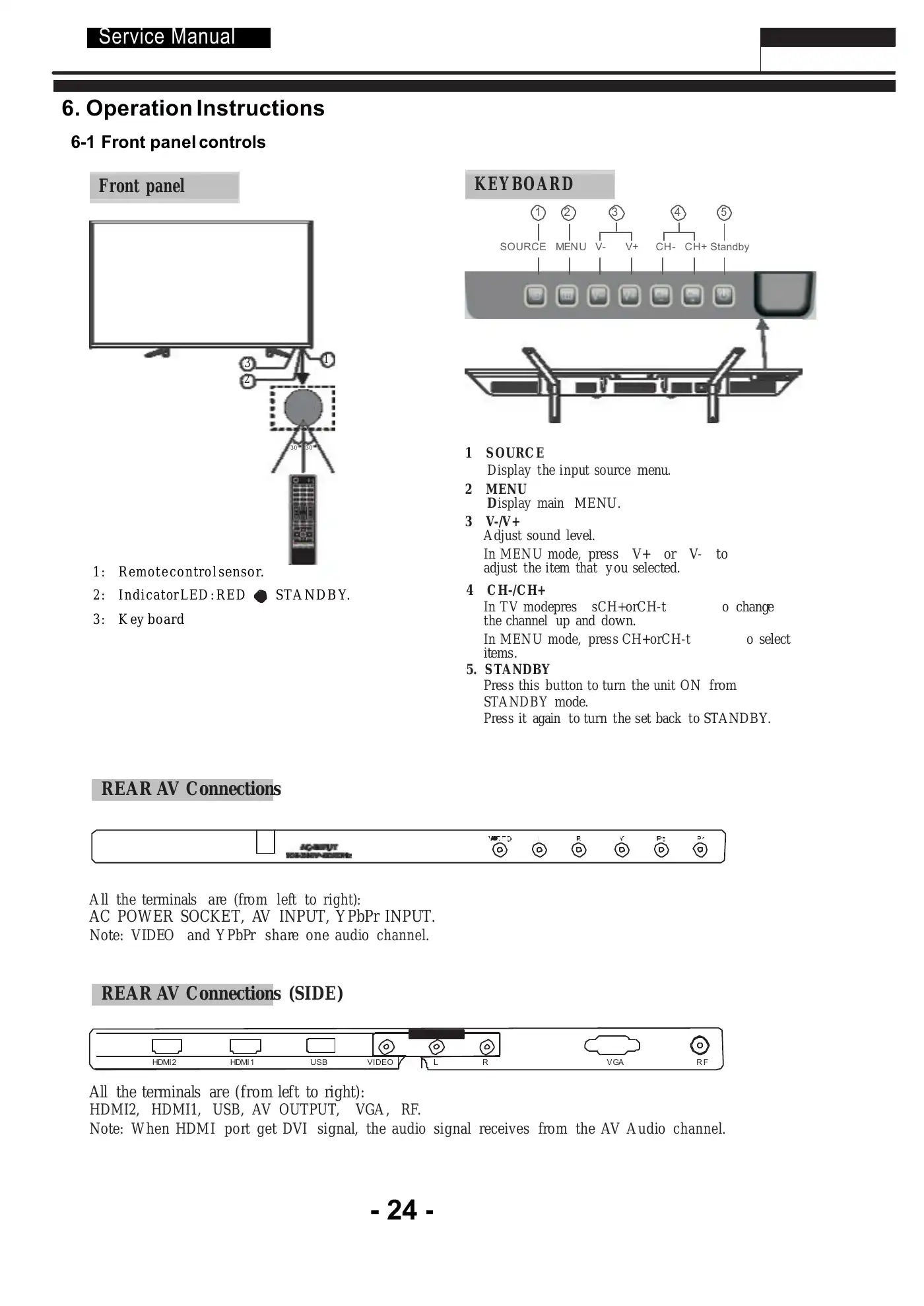

Service ManualAV OUTPUTHDMI2 HDMI1 USB VIDEO L R6. Operation Instructions6-1 Front panel controlsFront panel KEYBOARD1 2 3 4 5SOURCE MENU V- V+ CH- CH+ Standby3 121: Remot e control sensor.30 301 S OURCEDisplay the input source menu.2 MENUDisplay main MENU.3 V-/V+Adjust sound level.In MENU mode, press V+ or V- toadjust the item that you selected.2: Indicator LED : RED STANDBY.3: K ey board4 CH-/CH+In TV modepres sCH+orCH-t o changethe channel up and down.In MENU mode, press CH+orCH-t o selectitems.5. S TANDBYPress this button to turn the unit ON fromSTANDBY mode.Press it again to turn the set back to STANDBY.REAR AV ConnectionsAll the terminals are (from left to right):AC POWER SOCKET, AV INPUT, YPbPr INPUT.Note: VIDEO and YPbPr share one audio channel.REAR AV Connections (SIDE)VGA R FAll the terminals are (from left to right):HDMI2, HDMI1, USB, AV OUTPUT, VGA, RF.Note: When HDMI port get DVI signal, the audio signal receives from the AV Audio channel.- 24 -

/ 47
