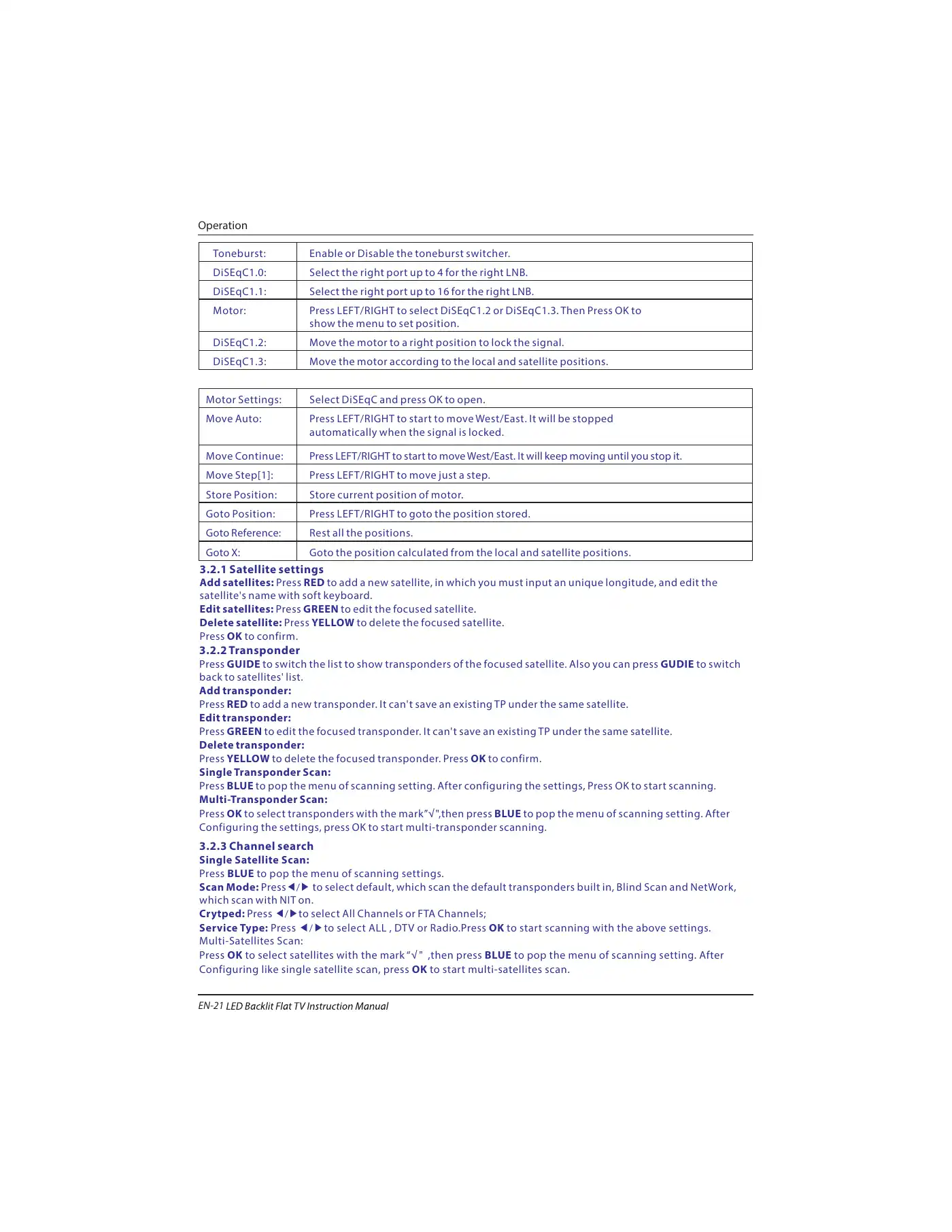

Haier LE39M600SF Instruction Manual Manual pdf 22 page image

OperationToneburst: Enable or Disable the toneburst switcher.DiSEqC1.0:DiSEqC1.1:Motor:DiSEqC1.2:DiSEqC1.3:Motor Settings:Select the right port up to 4 for the right LNB.Select the right port up to 16 for the right LNB.Press LEFT/RIGHT to select DiSEqC1.2 or DiSEqC1.3. Then Press OK toshow the menu to set position.Move the motor to a right position to lock the signal.Move the motor according to the local and satellite positions.Select DiSEqC and press OK to open.Move Auto:Move Continue:Move Step[1]:Store Position:Goto Position:Goto Reference:Press LEFT/RIGHT to start to move West/East. It will be stoppedautomatically when the signal is locked.Press LEFT/RIGHT to start to move West/East. It will keep moving until you stop it.Press LEFT/RIGHT to move just a step.Store current position of motor.Press LEFT/RIGHT to goto the position stored.Rest all the positions.Goto X: Goto the position calculated from the local and satellite positions.3.2.1 Satellite settingsAdd satellites: Press RED to add a new satellite, in which you must input an unique longitude, and edit thesatellite's name with soft keyboard.Edit satellites: Press GREEN to edit the focused satellite.Delete satellite: Press YELLOW to delete the focused satellite.Press OK to confirm.3.2.2 TransponderPress GUIDE to switch the list to show transponders of the focused satellite. Also you can press GUDIE to switchback to satellites' list.Add transponder:Press RED to add a new transponder. It can't save an existing TP under the same satellite.Edit transponder:Press GREEN to edit the focused transponder. It can't save an existing TP under the same satellite.Delete transponder:Press YELLOW to delete the focused transponder. Press OK to confirm.Single Transponder Scan:Press BLUE to pop the menu of scanning setting. After configuring the settings, Press OK to start scanning.Multi-Transponder Scan:Press OK to select transponders with the mark”√",then press BLUE to pop the menu of scanning setting. AfterConfiguring the settings, press OK to start multi-transponder scanning.3.2.3 Channel searchSingle Satellite Scan:Press BLUE to pop the menu of scanning settings.Scan Mode: Press◀/▶ to select default, which scan the default transponders built in, Blind Scan and NetWork,which scan with NIT on.Crytped: Press ◀/▶to select All Channels or FTA Channels;Service Type: Press ◀/▶to select ALL , DTV or Radio.Press OK to start scanning with the above settings.Multi-Satellites Scan:Press OK to select satellites with the mark “√" ,then press BLUE to pop the menu of scanning setting. AfterConfiguring like single satellite scan, press OK to start multi-satellites scan.EN-21

/ 244

Questions and answers

Need help?

Ask question about this manual

Frequently asked questions

To record a program, you need to first prepare to record the program by following the instructions in the manual. Then, you can use the PVR function to record the program. Additionally, you can record a paused DTV program to a USB storage device.

If you encounter any issues, you can refer to the troubleshooting section of the manual, which is located on page 31. This section should provide guidance on resolving common problems.

To clean the screen and cabinet of the Haier LE39M600SF TV, first remove the power cable from the power socket. Then, wipe the TV with a soft, dry, dust-free cloth.

Locate the TV in a room where light does not strike the screen directly. Total darkness or a reflection on the screen can cause eyestrain. Soft and indirect lighting is recommended for comfortable viewing.

Allow enough space between the TV and the wall to permit ventilation. This will help prevent overheating and potential damage to the TV.

The MENU button on the front control panel is used to display the main menu, where you can access various settings and options for your TV.

To change the picture aspect ratio, press the 'SCREEN' button on the remote control.

To navigate the on-screen menu, use the 'OK' button to confirm selections and the 'GUIDE' button to close the menu. Use the 'SOURCE' button to open the input source list and the 'P' button to display channel information.

To change the language, press the ▲▼ buttons to navigate the menu and select your desired language. Then, press the OK button to confirm.

Home mode is for regular home usage, while Shop mode is designed for shop usage and is the most energy-efficient mode. You can select the mode during the initial setup or by navigating to the settings menu.
