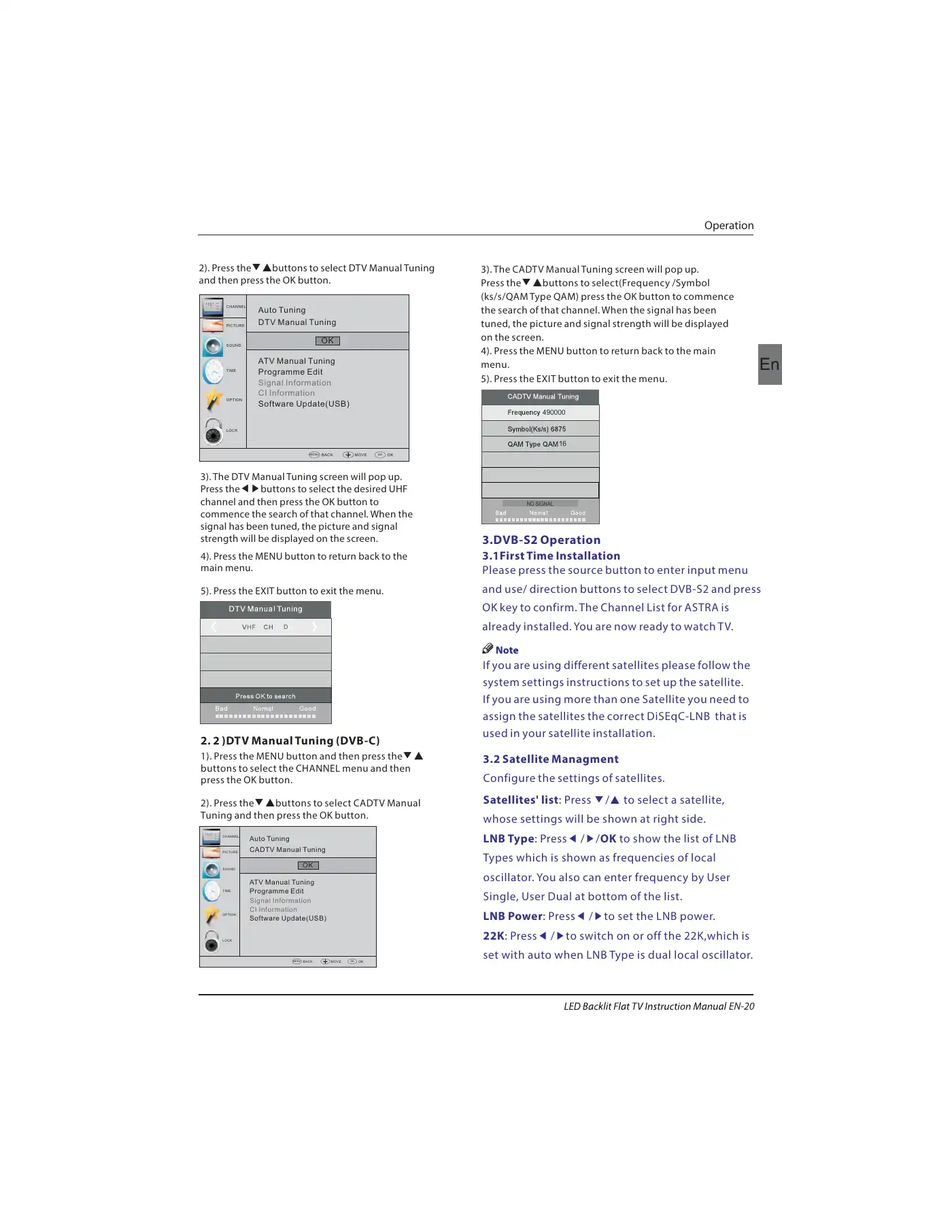

Haier LE39M600SF Instruction Manual Manual pdf 21 page image

4). Press the MENU button to return back to themain menu.5). Press the EXIT button to exit the menu.2. 2 )DTV Manual Tuning (DVB-C)3). The DTV Manual Tuning screen will pop up.Press the◀▶buttons to select the desired UHFchannel and then press the OK button tocommence the search of that channel. When thesignal has been tuned, the picture and signalstrength will be displayed on the screen.1). Press the MENU button and then press thebuttons to select the CHANNEL menu and thenpress the OK button.2). Press the buttons to select CADTV ManualTuning and then press the OK button.▼▲▼▲49000016NO SIGNALDOperationCHANNELPICTURESOUNDTIMEOPTIONLOCKAuto TuningATV Manual TuningProgramme EditSignal InformationDTV Manual TuningSoftware Update(USB)CI InformationOKOKBACK MOVE OKMENUCHANNELPICTURESOUNDTIMEOPTIONLOCKAuto TuningATV Manual TuningProgramme EditSignal InformationCADTV Manual TuningSoftware Update(USB)CI InformationOKOKBACK MOVE OKMENUEN-202). Press the▼▲buttons to select DTV Manual Tuningand then press the OK button.3). The CADTV Manual Tuning screen will pop up.Press the▼▲buttons to select(Frequency /Symbol(ks/s/QAM Type QAM) press the OK button to commencethe search of that channel. When the signal has beentuned, the picture and signal strength will be displayedon the screen.4). Press the MENU button to return back to the mainmenu.5). Press the EXIT button to exit the menu.3.DVB-S2 Operation3.1First Time InstallationPlease press the source button to enter input menuand use/ direction buttons to select DVB-S2 and pressOK key to confirm. The Channel List for ASTRA isalready installed. You are now ready to watch TV.If you are using different satellites please follow thesystem settings instructions to set up the satellite.If you are using more than one Satellite you need toassign the satellites the correct DiSEqC-LNB that isused in your satellite installation.3.2 Satellite ManagmentConfigure the settings of satellites.Satellites' list: Press to select a satellite,whose settings will be shown at right side.LNB Type: Press◀ /▶/OK to show the list of LNBTypes which is shown as frequencies of localoscillator. You also can enter frequency by UserSingle, User Dual at bottom of the list.LNB Power: Press◀ /▶to set the LNB power.22K: Press◀ /▶to switch on or off the 22K,which isset with auto when LNB Type is dual local oscillator.▼/▲
