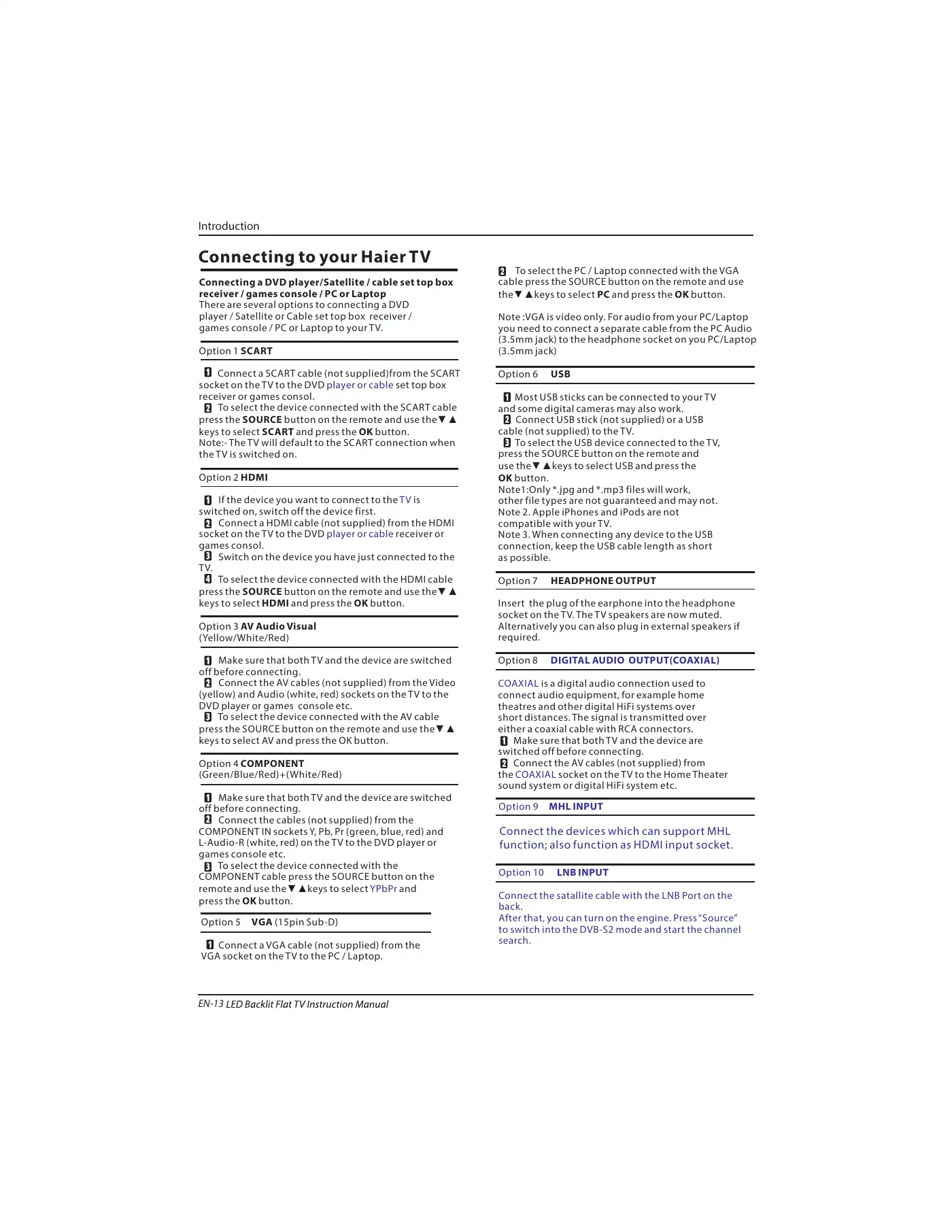

Haier LE39M600SF Instruction Manual Manual pdf 14 page image

EN-13IntroductionConnecting a DVD player/Satellite / cable set top boxreceiver / games console / PC or LaptopThere are several options to connecting a DVDplayer / Satellite or Cable set top box receiver /games console / PC or Laptop to your TV.Option 1 SCARTConnect a SCART cable (not supplied)from the SCARTsocket on the TV to the DVD set top boxreceiver or games consol.To select the device connected with the SCART cablepress the SOURCE button on the remote and use the▼▲keys to select SCART and press the OK button.Note:- The TV will default to the SCART connection whenthe TV is switched on.Option 2 HDMIIf the device you want to connect to the isswitched on, switch off the device first.Connect a HDMI cable (not supplied) from the HDMIsocket on the TV to the DVD receiver orgames consol.Switch on the device you have just connected to theTV.To select the device connected with the HDMI cablepress the SOURCE button on the remote and use the▼▲keys to select HDMI and press the OK button.Option 3 AV Audio Visual(Yellow/White/Red)Make sure that both TV and the device are switchedoff before connecting.Connect the AV cables (not supplied) from the Video(yellow) and Audio (white, red) sockets on the TV to theDVD player or games console etc.To select the device connected with the AV cablepress the SOURCE button on the remote and use the▼▲keys to select AV and press the OK button.Option 4 COMPONENT(Green/Blue/Red)+(White/Red)Make sure that both TV and the device are switchedoff before connecting.▼▲player or cableplayer or cableYPbPrTVConnect the cables (not supplied) from theCOMPONENT IN sockets Y, Pb, Pr (green, blue, red) andL-Audio-R (white, red) on the TV to the DVD player orgames console etc.To select the device connected with theCOMPONENT cable press the SOURCE button on theremote and use the keys to select andpress the OK button.To select the PC / Laptop connected with the VGAcable press the SOURCE button on the remote and usethe keys to select PC and press the OK button.Note :VGA is video only. For audio from your PC/Laptopyou need to connect a separate cable from the PC Audio(3.5mm jack) to the headphone socket on you PC/Laptop(3.5mm jack)Option 6 USBMost USB sticks can be connected to your TVand some digital cameras may also work.Connect USB stick (not supplied) or a USBcable (not supplied) to the TV.To select the USB device connected to the TV,press the SOURCE button on the remote anduse the keys to select USB and press theOK button.Note1:Only *.jpg and *.mp3 files will work,other file types are not guaranteed and may not.Note 2. Apple iPhones and iPods are notcompatible with your TV.Note 3. When connecting any device to the USBconnection, keep the USB cable length as shortas possible.Option 7Option 8▼▲▼▲HEADPHONE OUTPUTis a digital audio connection used toconnect audio equipment, for example hometheatres and other digital HiFi systems overshort distances. The signal is transmitted overeither a coaxial cable with RCA connectors.Make sure that both TV and the device areswitched off before connecting.Connect the AV cables (not supplied) fromthe socket on the TV to the Home Theatersound system or digital HiFi system etc.Insert the plug of the earphone into the headphonesocket on the TV. The TV speakers are now muted.Alternatively you can also plug in external speakers ifrequired.DIGITAL AUDIO OUTPUT(COAXIAL)COAXIALCOAXIALConnecting to your Haier TVOption 9 MHL INPUTConnect the devices which can support MHLfunction; also function as HDMI input socket.Option 10 LNB INPUTConnect the satallite cable with the LNB Port on theback.After that, you can turn on the engine. Press “Source”to switch into the DVB-S2 mode and start the channelsearch.Option 5 VGA (15pin Sub-D)Connect a VGA cable (not supplied) from theVGA socket on the TV to the PC / Laptop.
