Haier LE32K5000T Service Manual

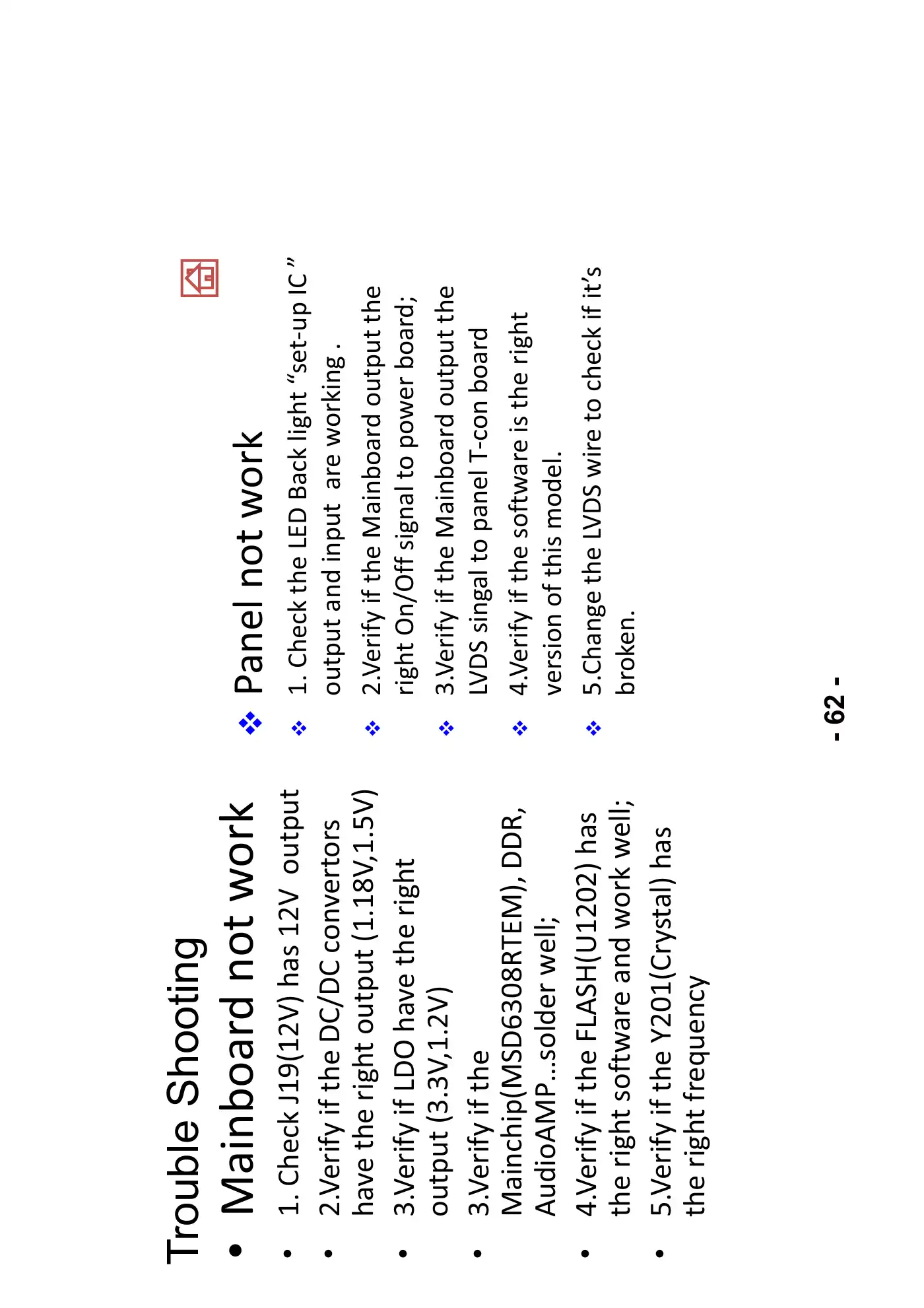

Trouble Shooting Mainboard not work 1. Check J19(12V) has 12V output 2.Verify if the DC/DC convertorshave the right output (1.18V,1.5V) 3.Verify if LDO have the rightoutput (3.3V,1.2V) 3.Verify if theMainchip(MSD6308RTEM), DDR,AudioAMP͙ ƐŽůĚĞƌǁĞůů͖ 4.Verify if the FLASH(U1202) hasthe right software and work well; 5.Verify if the Y201(Crystal) hasthe right frequency Panel not work 1. ŚĞĐŬƚŚĞ>ĂĐŬůŝŐŚƚ͞ƐĞƚ -ƵƉ/͟output and input are working . 2.Verify if the Mainboard output theright On/Off signal to power board; 3.Verify if the Mainboard output theLVDS singal to panel T-con board 4.Verify if the software is the rightversion of this model. ϱ͘ŚĂŶŐĞƚŚĞ>s^ǁŝƌĞƚŽĐŚĞĐŬŝĨŝƚ͛Ɛbroken.- 62 -
