Haier LE32K5000T Service Manual

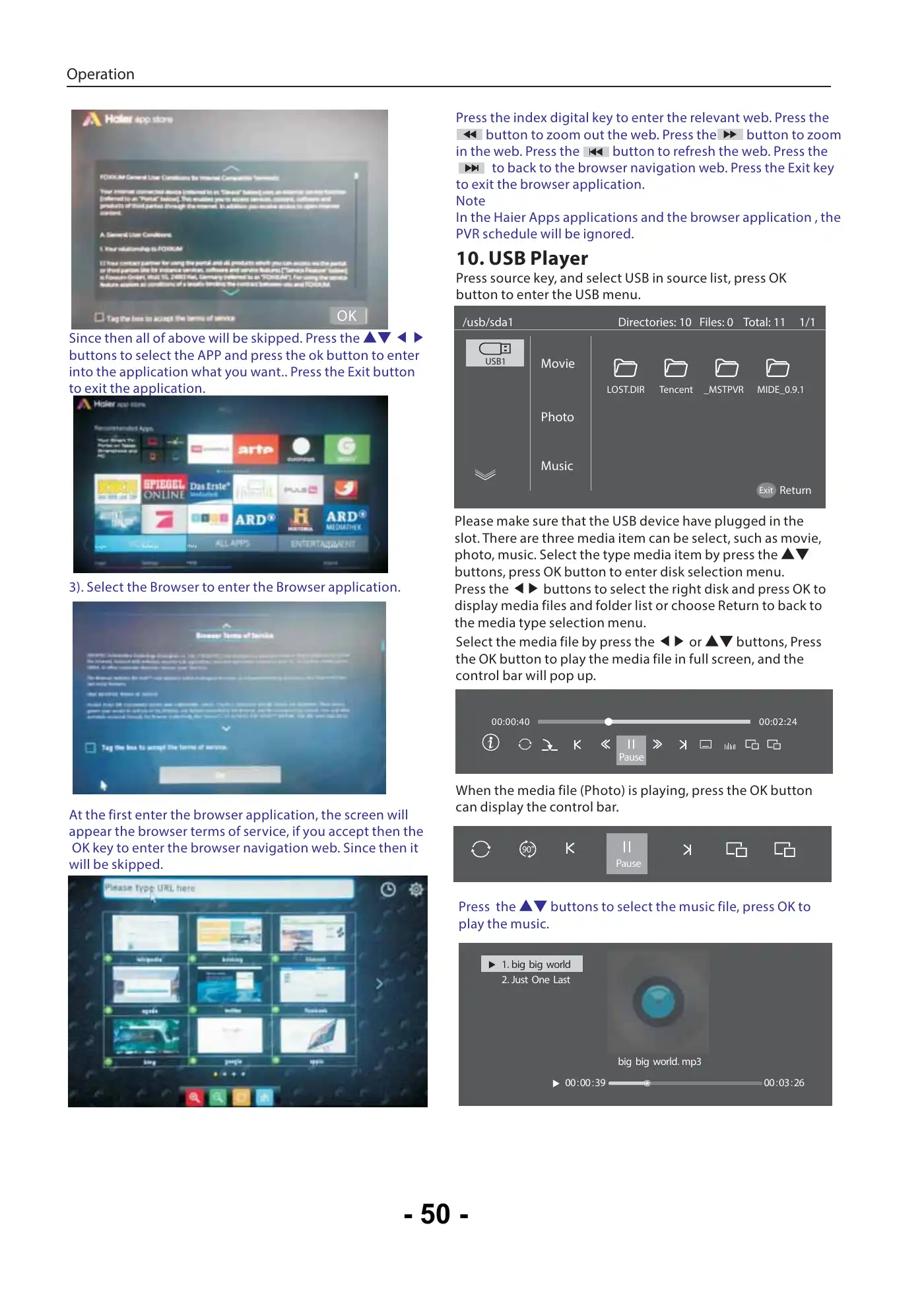

Operation10. USB PlayerPress source key, and select USB in source list, press OKbutton to enter the USB menu.Please make sure that the USB device have plugged in theslot. There are three media item can be select, such as movie,photo, music. Select the type media item by press the ▲▼buttons, press OK button to enter disk selection menu.Press the ◀▶ buttons to select the right disk and press OK todisplay media files and folder list or choose Return to back tothe media type selection menu.Select the media file by press the ◀▶ or ▲▼ buttons, Pressthe OK button to play the media file in full screen, and thecontrol bar will pop up.When the media file (Photo) is playing, press the OK buttoncan display the control bar.Press the ▲▼ buttons to select the music file, press OK toplay the music.Directories: 10 Files: 0 Total: 11 1/1ReturnExit/usb/sda1LOST.DIR Tencent _MSTPVR MIDE_0.9.1USB1 MoviePhotoMusic00:00:40 00:02:2490°Pause1.big big world2.Just One Lastbig big world.mp300:00:39 00:03:26PauseSince then all of above will be skipped. Press the ▲▼ ◀ ▶buttons to select the APP and press the ok button to enterinto the application what you want.. Press the Exit buttonto exit the application.3). Select the Browser to enter the Browser application.Login Settings Help ImprintOKAt the first enter the browser application, the screen willappear the browser terms of service, if you accept then theOK key to enter the browser navigation web. Since then itwill be skipped.Press the index digital key to enter the relevant web. Press thebutton to zoom out the web. Press the button to zoomin the web. Press the button to refresh the web. Press theto back to the browser navigation web. Press the Exit keyto exit the browser application.NoteIn the Haier Apps applications and the browser application , thePVR schedule will be ignored.- 50 -

/ 68

Questions and answers

Need help?

Ask question about this manual

Frequently asked questions

To connect external equipment to the Haier LE32K5000T TV, refer to the 'External Equipment Connections' section in the 'Installation Instructions' chapter of the service manual. This section provides detailed instructions on how to properly connect various external devices.

The resolution of the Haier LE32K5000T TV is 1366x768 pixels.

The Haier LE32K5000T TV supports an IEC (female) aerial connection with an input impedance of 75 unbalanced.

The color codes for the audio and video inputs are as follows: Green (Y), Blue (Pb/Cb), White (AUDIO-L), Red (AUDIO-R, Pr/Cr), and Yellow (VIDEO).

The Haier LE32K5000T is compatible with HDMI cables, HDMI to DVI cables, and Analog Audio Cables (Stereo to RCA type). However, these cables are not supplied with the product and need to be purchased separately.

To change the channel, use the CH+ or CH- buttons on the front panel or the remote control. In TV mode, press CH+ to go up a channel or CH- to go down a channel.

To access a specific teletext page, press the 'TEXT' button to enter teletext mode. Then, use the number keys (0 to 9) to enter the three-digit page number you want to view. For example, to view page 120, enter 120. The page number will be displayed at the top left of the screen, and the page will be shown once the counter stops.

The 12V_Normal port has a power rating of 1.85A.

The 'PANEL_ON/OFF' signal is used to control the power state of the panel. When the signal is high (H), it indicates that the power is on. When the signal is low (L), it indicates that the power is off.

The power decoupling for the panel involves components such as C404, which is a capacitor, and the V_Panel power supply. These components help to stabilize the power supply to the panel.
