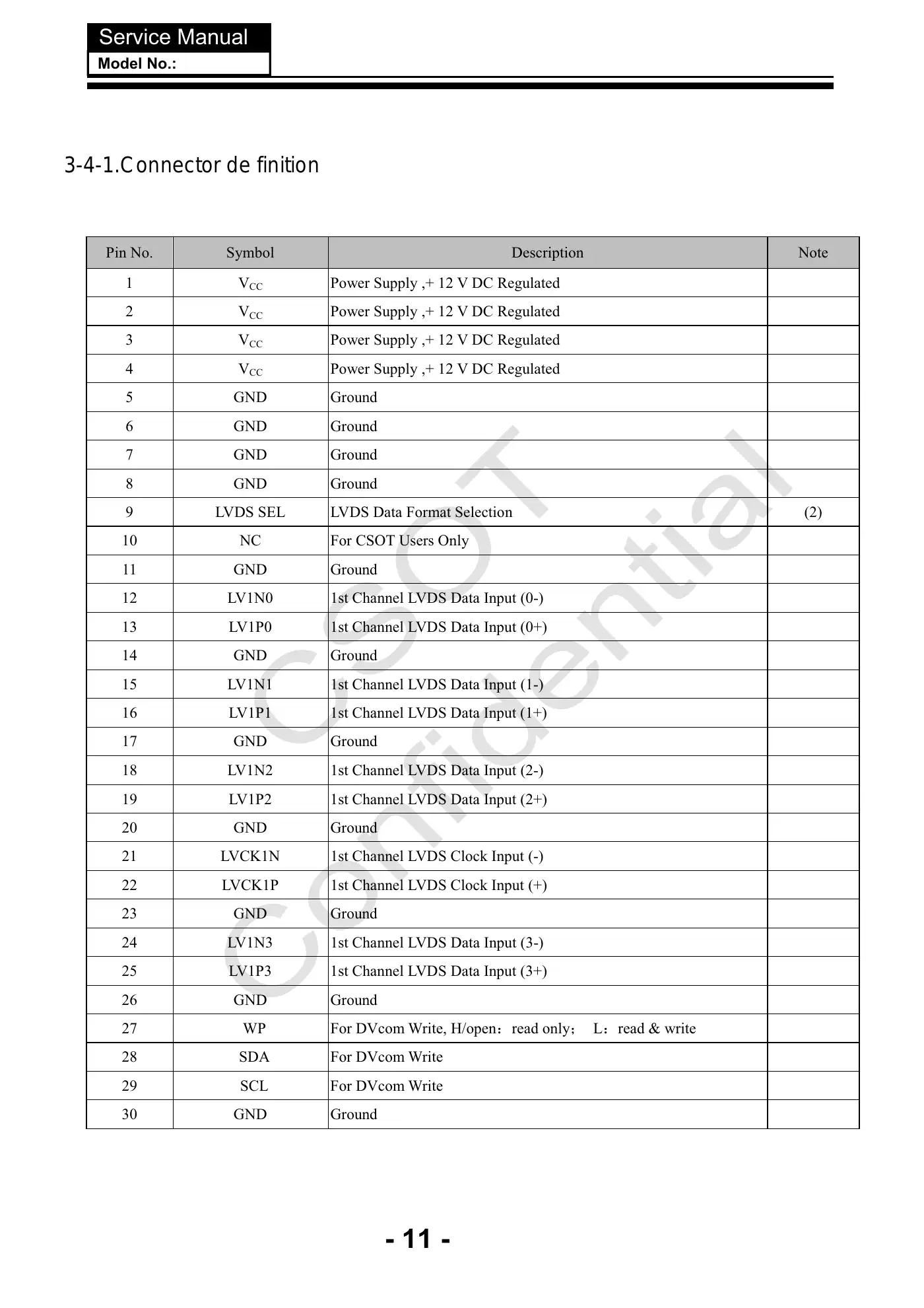

Service ManualModel No.:- 11 -3-4-1.Connector de finitionPin No. Symbol Description Note1 V CC Power Supply ,+ 12 V DC Regulated2 V CC Power Supply ,+ 12 V DC Regulated3 V CC Power Supply ,+ 12 V DC Regulated4 V CC Power Supply ,+ 12 V DC Regulated5 GND Ground6 GND Ground7 GND Ground8 GND Ground9 LVDS SEL LVDS Data Format Selection (2)10 NC For CSOT Users Only11 GND Ground12 LV1N0 1st Channel LVDS Data Input (0-)13 LV1P0 1st Channel LVDS Data Input (0+)14 GND Ground15 LV1N1 1st Channel LVDS Data Input (1-)16 LV1P1 1st Channel LVDS Data Input (1+)17 GND Ground18 LV1N2 1st Channel LVDS Data Input (2-)19 LV1P2 1st Channel LVDS Data Input (2+)20 GND Ground21 LVCK1N 1st Channel LVDS Clock Input (-)22 LVCK1P 1st Channel LVDS Clock Input (+)23 GND Ground24 LV1N3 1st Channel LVDS Data Input (3-)25 LV1P3 1st Channel LVDS Data Input (3+)26 GND Ground27 WP For DVcom Write, H/open˖read only˗ L˖read & write28 SDA For DVcom Write29 SCL For DVcom Write30 GND Ground
