Haier LE32K5000 Service Manual

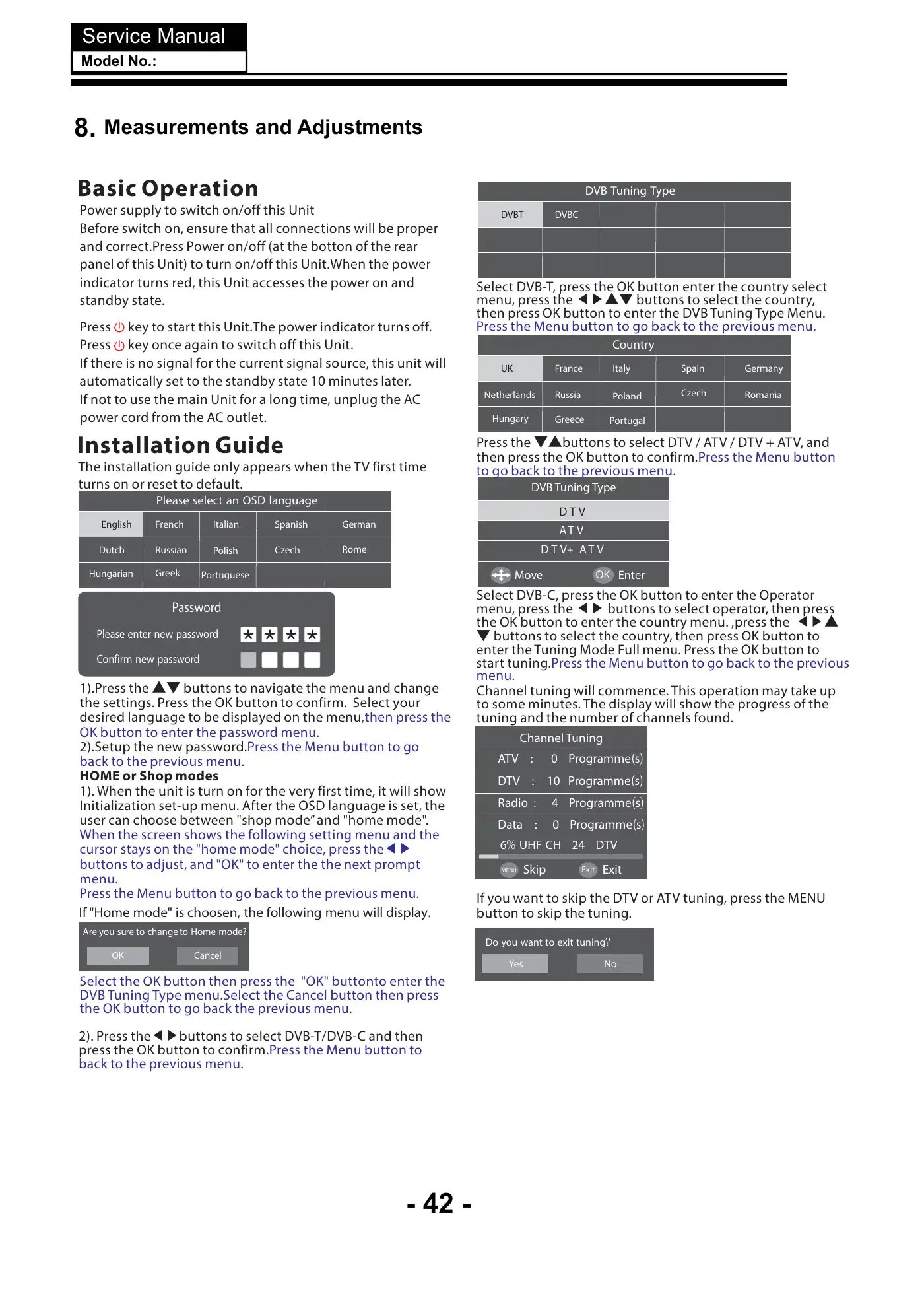

Power supply to switch on/off this UnitBefore switch on, ensure that all connections will be properand correct.Press Power on/off (at the botton of the rearpanel of this Unit) to turn on/off this Unit.When the powerindicator turns red, this Unit accesses the power on andstandby state.Basic OperationPress key to start this Unit.The power indicator turnsPress key once again to switch off this Unit.If there is no signal for the current signal source, this unit willautomatically set to the standby state 10 minutes later.If not to use the main Unit for a long time, unplug the ACpower cord from the AC outlet.off.If "Home mode" is choosen, the following menu will display.Installation GuideThe installation guide only appears when the TV first timeturns on or reset to default.1).Press the ▲▼ buttons to navigate the menu and changethe settings. Press the OK button to confirm. Select yourdesired language to be displayed on the menu2).Setup the new password.HOME or Shop modes1). When the unit is turn on for the very first time, it will showInitialization set-up menu. After the OSD language is set, theuser can choose between "shop mode” and "home mode".,then press theOK button to enter the password menu.Press the Menu button to goback to the previous menu.When the screen shows the following setting menu and thecursor stays on the "home mode" choice, press the◀▶buttons to adjust, and "OK" to enter the the next promptmenu.Press the Menu button to go back to the previous menu.Select the OK button then press the "OK" buttonto enter theDVB Tuning Type menu.Select the Cancel button then pressthe OK button to go back the previous menu.2). Press the buttons to select DVB-T/DVB-C and thenpress the OK button to confirm.◀▶Press the Menu button toback to the previous menu.Select DVB-C, press the OK button to enter the Operatormenu, press the ◀▶ buttons to select operator, then pressthe OK button to enter the country menu. ,press the ◀▶▲▼ buttons to select the country, then press OK button toenter the Tuning Mode Full menu. Press the OK button tostart tuning.Press the Menu button to go back to the previousmenu.Channel tuning will commence. This operation may take upto some minutes. The display will show the progress of thetuning and the number of channels found.If you want to skip the DTV or ATV tuning, press the MENUbutton to skip the tuning.Please select an OSD languageDutch RussianGreekFrench Italian Spanish GermanRomeCzechPolishPortugueseHungarianEnglishPasswordPlease enter new passwordConfirm new passwordOK CancelAre you sure to change to Home mode?DVB Tuning TypeDVBCDVBTCountryFrance Italy SpainCzechPolandPortugalRussiaGreeceUKNetherlandsHungaryGermanyRomaniaChannel TuningATV : 0 Programme s)(DTV : 10 Programme s)(R : 4 Programme s)adio (D : 0 Programme s)ata (6% UHF CH 24 DTVExitExitSkipMENUYes NoDo you want to exit tuning?DVB Tuning TypeD T VA T VD T V+ A T VMove EnterOKSelect DVB-T, press the OK button enter the country selectmenu, press the ◀▶▲▼ buttons to select the country,then press OK button to enter the DVB Tuning Type Menu.Press the Menu button to go back to the previous menu.Press the ▼▲buttons to select DTV / ATV / DTV + ATV, andthen press the OK button to confirm.Press the Menu buttonto go back to the previous menu.8. Measurements and AdjustmentsService ManualModel No.:- 42 -

/ 68
