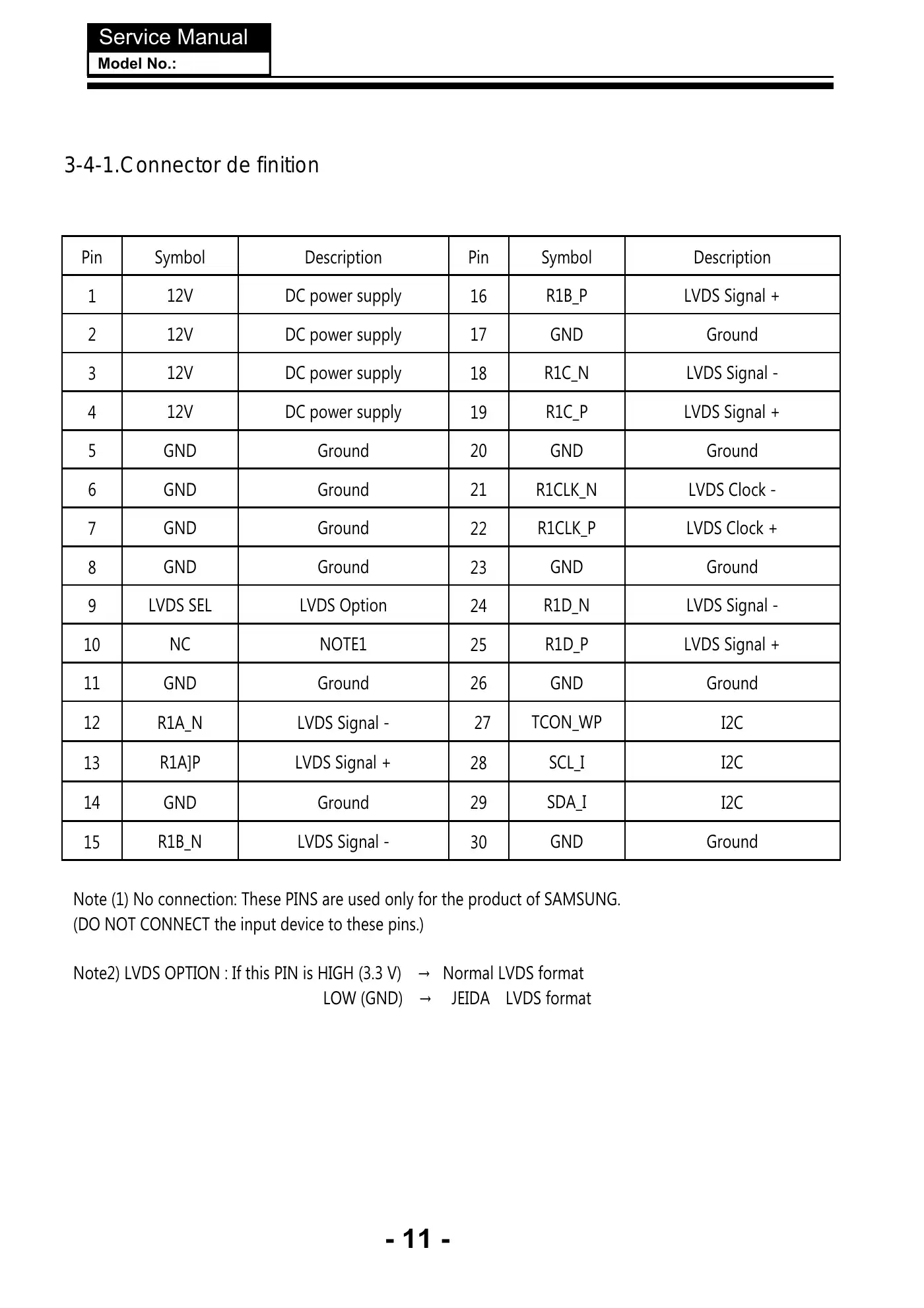

Service ManualModel No.:- 11 -3-4-1.Connector de finitionPin Symbol Description Pin Symbol Description1 12V DC power supply 16 R1B_P LVDS Signal +2 12V DC power supply 17 GND Ground3 12V DC power supply 18 R1C_N LVDS Signal -4 12V DC power supply 19 R1C_P LVDS Signal +5 GND Ground 20 GND Ground6 GND Ground 21 R1CLK_N LVDS Clock -7 GND Ground 22 R1CLK_P LVDS Clock +8 GND Ground 23 GND Ground9 LVDS SEL LVDS Option 24 R1D_N LVDS Signal -10 NC NOTE1 25 R1D_P LVDS Signal +11 GND Ground 26 GND Ground12 R1A_N LVDS Signal - 27 TCON_WP I2C13 R1A]P LVDS Signal + 28 SCL_I I2C14 GND Ground 29 SDA_I I2C15 R1B_N LVDS Signal - 30 GND GroundNote (1) No connection: These PINS are used only for the product of SAMSUNG.(DO NOT CONNECT the input device to these pins.)Note2) LVDS OPTION : If this P,1LV+,*+ 9 ମ Normal LVDS format/2: *1' ମ JEIDA LVDS format
