Haier LE32F32200 User Manual

Also see for LE32F32200: Service manual User manual

Language

Haier LE32F32200 User Manual Manual pdf 7 page image

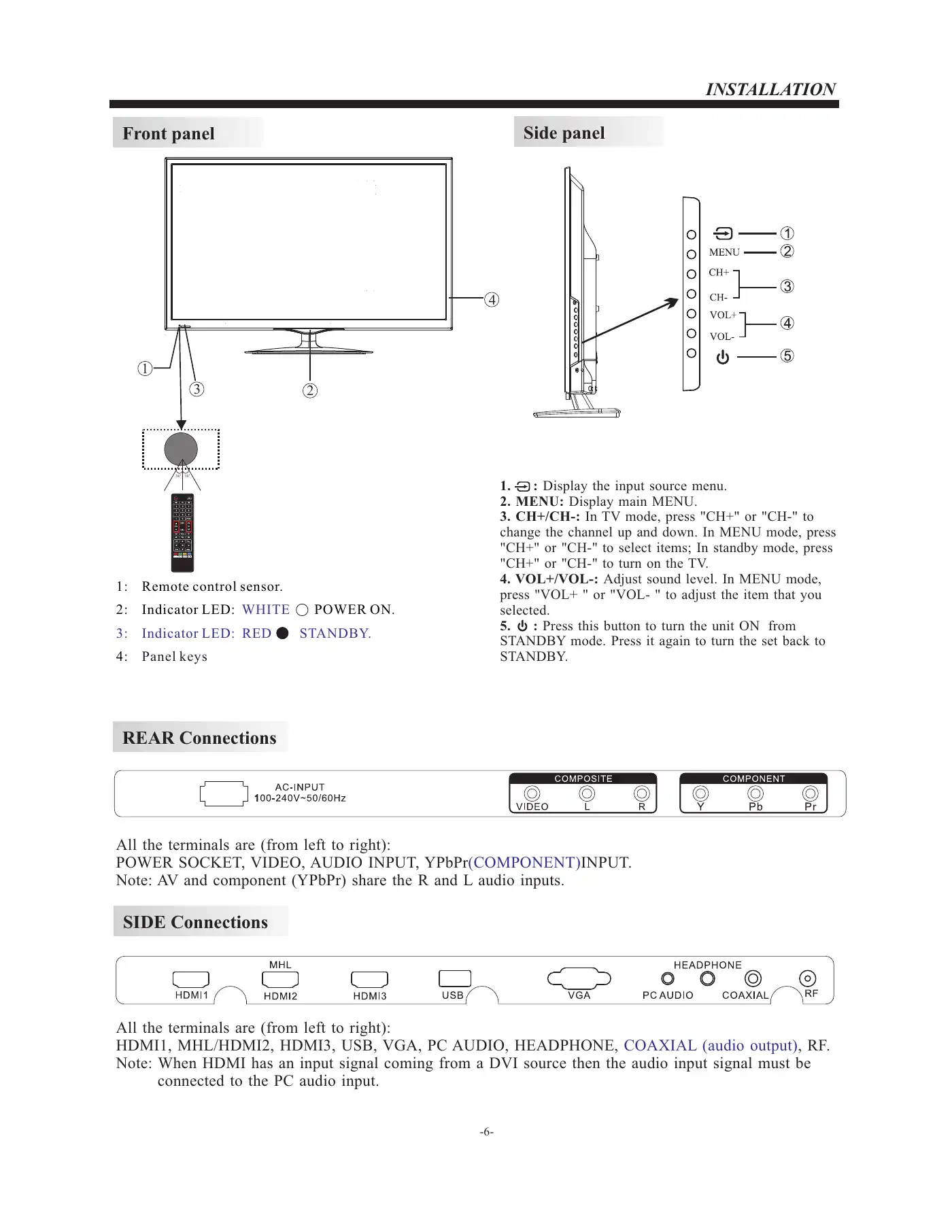

-6-INSTALLATIONFront panel Side panelREAR Connections1: Remote control sensor.2: Indicator LED: POWER ON.4:WHITE3: Indicator LED: RED STANDBY.Panel keys1. : Display the input source menu.2. MENU: Display main MENU.3. CH+/CH-: In TV mode, press "CH+" or "CH-" tochange the channel up and down. In MENU mode, press"CH+" or "CH-" to select items; In standby mode, press"CH+" or "CH-" to turn on the TV.4. VOL+/VOL-: Adjust sound level. In MENU mode,press "VOL+ " or "VOL- " to adjust the item that youselected.5. : Press this button to turn the unit ON fromSTANDBY mode. Press it again to turn the set back toSTANDBY.30 301423SIDE ConnectionsAll the terminals are (from left to right):HDMI1, MHL/HDMI2, HDMI3, USB, VGA, PC AUDIO, HEADPHONE, .Note: When HDMI has an input signal coming from a DVI source then the audio input signal must beconnected to the PC audio input.COAXIAL (audio output), RFAll the terminals are (from left to right):POWER SOCKET, VIDEO, AUDIO INPUT, .Note: AV and component (YPbPr) share the R and L audio inputs.YPbPr INPUT(COMPONENT)

/ 47
