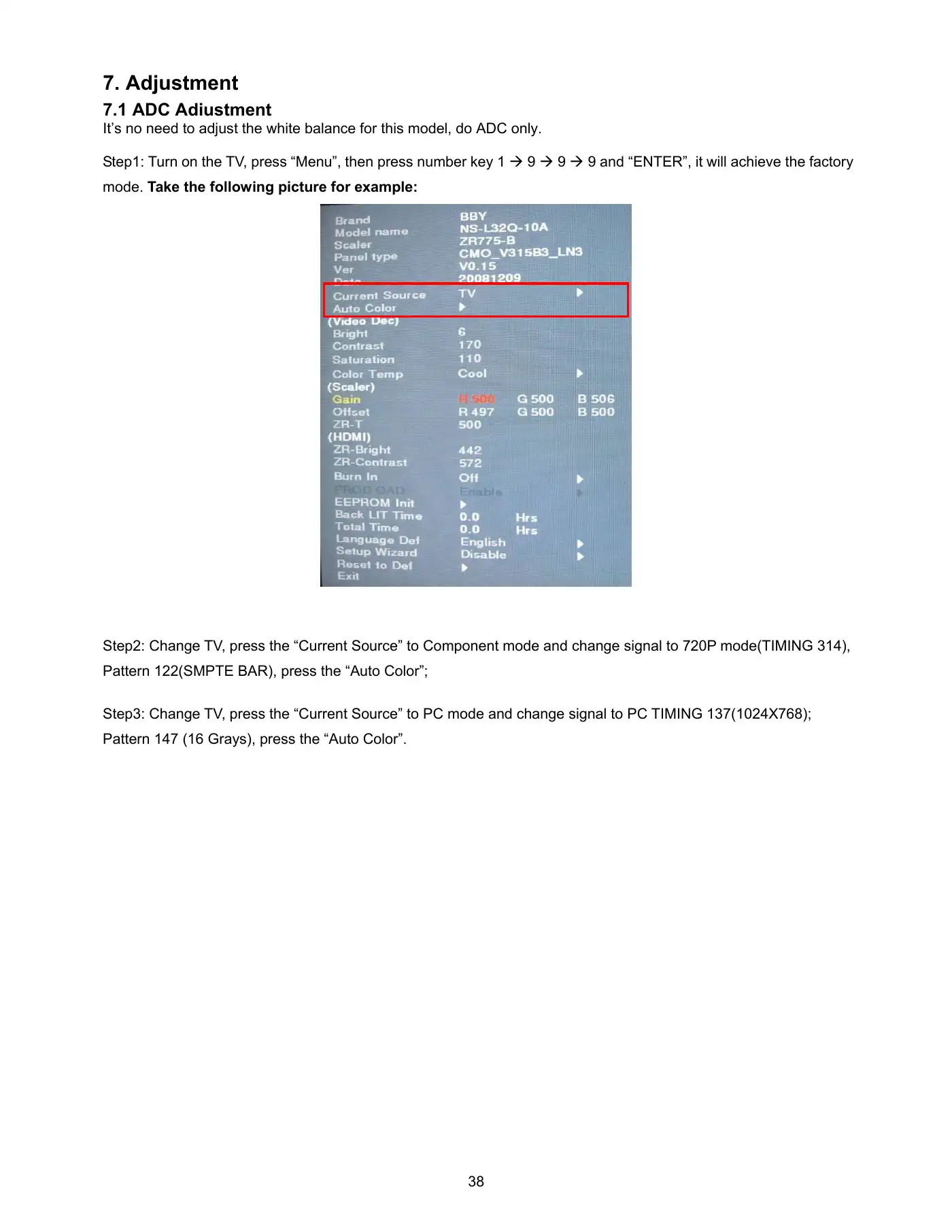

387. Adjustment7.1 ADC AdiustmentIt’s no need to adjust the white balance for this model, do ADC only.Step1: Turn on the TV, press “Menu”, then press number key 1 Æ 9 Æ 9 Æ 9 and “ENTER”, it will achieve the factorymode. Take the following picture for example:Step2: Change TV, press the “Current Source” to Component mode and change signal to 720P mode(TIMING 314),Pattern 122(SMPTE BAR), press the “Auto Color”;Step3: Change TV, press the “Current Source” to PC mode and change signal to PC TIMING 137(1024X768);Pattern 147 (16 Grays), press the “Auto Color”.
