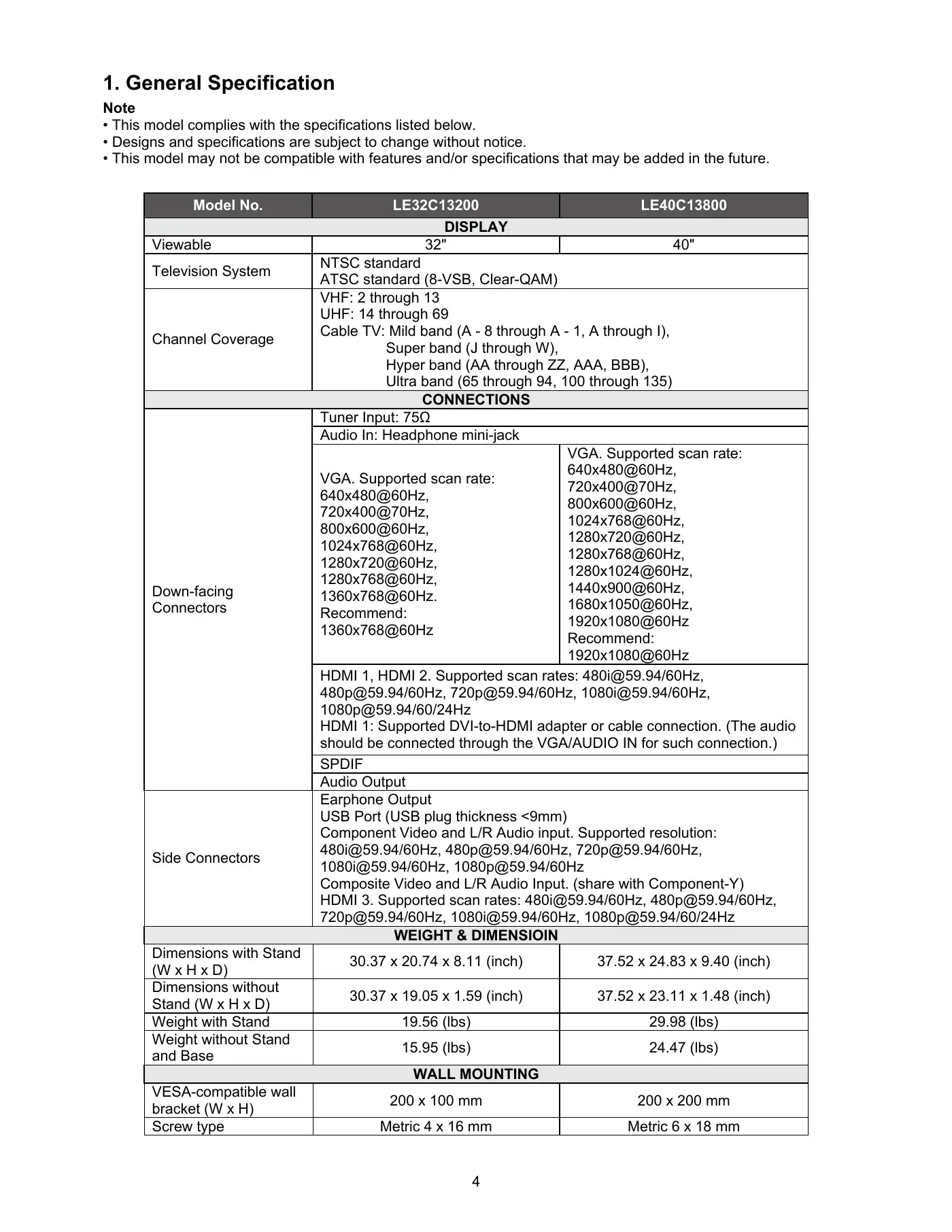

41. General SpecificationNote• This model complies with the specifications listed below.• Designs and specifications are subject to change without notice.• This model may not be compatible with features and/or specifications that may be added in the future.Model No. LE32C13200 LE40C13800DISPLAYViewable 32" 40"Television System NTSC standardATSC standard (8-VSB, Clear-QAM)Channel CoverageVHF: 2 through 13UHF: 14 through 69Cable TV: Mild band (A - 8 through A - 1, A through I),Super band (J through W),Hyper band (AA through ZZ, AAA, BBB),Ultra band (65 through 94, 100 through 135)CONNECTIONSDown-facingConnectorsTuner Input: 75ΩAudio In: Headphone mini-jackVGA. Supported scan rate:640x480@60Hz,720x400@70Hz,800x600@60Hz,1024x768@60Hz,1280x720@60Hz,1280x768@60Hz,1360x768@60Hz.Recommend:1360x768@60HzVGA. Supported scan rate:640x480@60Hz,720x400@70Hz,800x600@60Hz,1024x768@60Hz,1280x720@60Hz,1280x768@60Hz,1280x1024@60Hz,1440x900@60Hz,1680x1050@60Hz,1920x1080@60HzRecommend:1920x1080@60HzHDMI 1, HDMI 2. Supported scan rates: 480i@59.94/60Hz,480p@59.94/60Hz, 720p@59.94/60Hz, 1080i@59.94/60Hz,1080p@59.94/60/24HzHDMI 1: Supported DVI-to-HDMI adapter or cable connection. (The audioshould be connected through the VGA/AUDIO IN for such connection.)SPDIFAudio OutputSide ConnectorsEarphone OutputUSB Port (USB plug thickness <9mm)Component Video and L/R Audio input. Supported resolution:480i@59.94/60Hz, 480p@59.94/60Hz, 720p@59.94/60Hz,1080i@59.94/60Hz, 1080p@59.94/60HzComposite Video and L/R Audio Input. (share with Component-Y)HDMI 3. Supported scan rates: 480i@59.94/60Hz, 480p@59.94/60Hz,720p@59.94/60Hz, 1080i@59.94/60Hz, 1080p@59.94/60/24HzWEIGHT & DIMENSIOINDimensions with Stand(W x H x D) 30.37 x 20.74 x 8.11 (inch) 37.52 x 24.83 x 9.40 (inch)Dimensions withoutStand (W x H x D) 30.37 x 19.05 x 1.59 (inch) 37.52 x 23.11 x 1.48 (inch)Weight with Stand 19.56 (lbs) 29.98 (lbs)Weight without Standand Base 15.95 (lbs) 24.47 (lbs)WALL MOUNTINGVESA-compatible wallbracket (W x H) 200 x 100 mm 200 x 200 mmScrew type Metric 4 x 16 mm Metric 6 x 18 mm

/ 62
