Haier LE32C13200 Service Manual

Also see for LE32C13200: Owner's manual Owner's manual Owner's manual

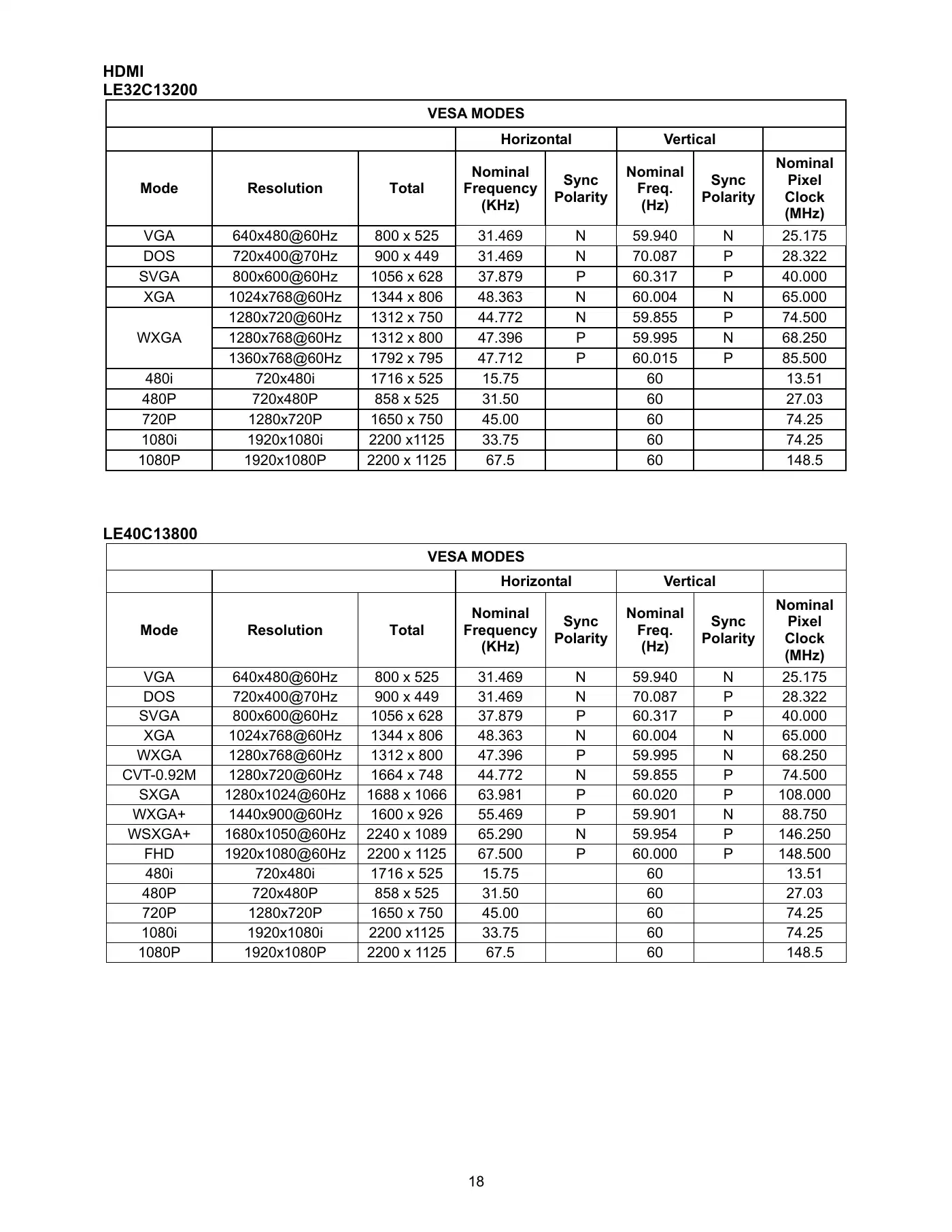

18HDMILE32C13200VESA MODESHorizontal VerticalMode Resolution TotalNominalFrequency(KHz)SyncPolarityNominalFreq.(Hz)SyncPolarityNominalPixelClock(MHz)VGA 640x480@60Hz 800 x 525 31.469 N 59.940 N 25.175DOS 720x400@70Hz 900 x 449 31.469 N 70.087 P 28.322SVGA 800x600@60Hz 1056 x 628 37.879 P 60.317 P 40.000XGA 1024x768@60Hz 1344 x 806 48.363 N 60.004 N 65.000WXGA1280x720@60Hz 1312 x 750 44.772 N 59.855 P 74.5001280x768@60Hz 1312 x 800 47.396 P 59.995 N 68.2501360x768@60Hz 1792 x 795 47.712 P 60.015 P 85.500480i 720x480i 1716 x 525 15.75 60 13.51480P 720x480P 858 x 525 31.50 60 27.03720P 1280x720P 1650 x 750 45.00 60 74.251080i 1920x1080i 2200 x1125 33.75 60 74.251080P 1920x1080P 2200 x 1125 67.5 60 148.5LE40C13800VESA MODESHorizontal VerticalMode Resolution TotalNominalFrequency(KHz)SyncPolarityNominalFreq.(Hz)SyncPolarityNominalPixelClock(MHz)VGA 640x480@60Hz 800 x 525 31.469 N 59.940 N 25.175DOS 720x400@70Hz 900 x 449 31.469 N 70.087 P 28.322SVGA 800x600@60Hz 1056 x 628 37.879 P 60.317 P 40.000XGA 1024x768@60Hz 1344 x 806 48.363 N 60.004 N 65.000WXGA 1280x768@60Hz 1312 x 800 47.396 P 59.995 N 68.250CVT-0.92M 1280x720@60Hz 1664 x 748 44.772 N 59.855 P 74.500SXGA 1280x1024@60Hz 1688 x 1066 63.981 P 60.020 P 108.000WXGA+ 1440x900@60Hz 1600 x 926 55.469 P 59.901 N 88.750WSXGA+ 1680x1050@60Hz 2240 x 1089 65.290 N 59.954 P 146.250FHD 1920x1080@60Hz 2200 x 1125 67.500 P 60.000 P 148.500480i 720x480i 1716 x 525 15.75 60 13.51480P 720x480P 858 x 525 31.50 60 27.03720P 1280x720P 1650 x 750 45.00 60 74.251080i 1920x1080i 2200 x1125 33.75 60 74.251080P 1920x1080P 2200 x 1125 67.5 60 148.5
