Haier LE32B8000 Service Manual

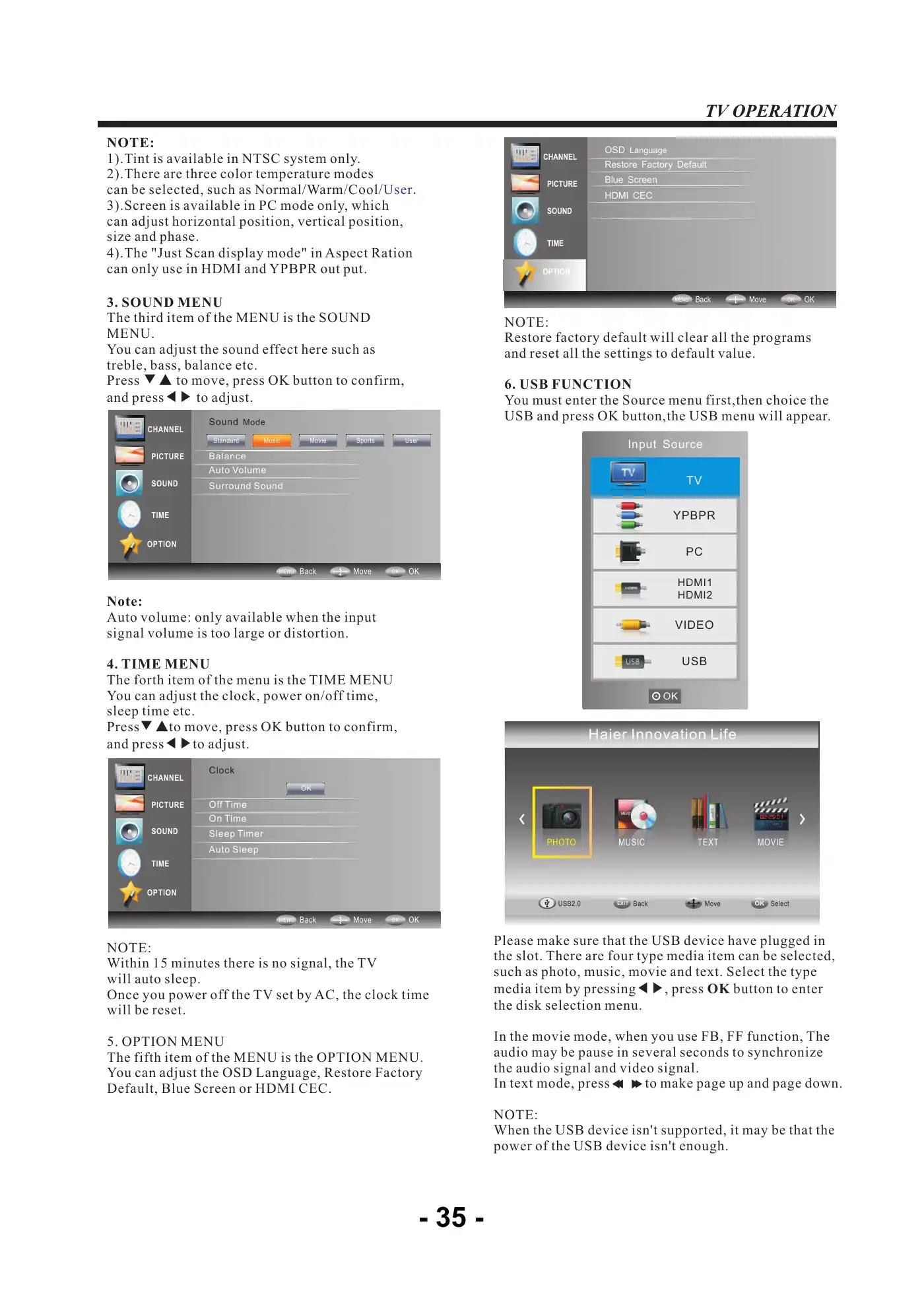

NOTE:1).Tint is available in NTSC system only.2).There are three color temperature modescan be selected, such as Normal/Warm/Cool/ .User3).Screen is available in PC mode only, whichcan adjust horizontal position, vertical position,size and phase.TV OPERATION3. SOUND MENUThe third item of the MENU is the SOUNDMENU.You can adjust the sound effect here such astreble, bass, balance etc.Press ▼▲ to move, press OK button to confirm,and press◀▶ to adjust.Note:Auto volume: only available when the inputsignal volume is too large or distortion.4. TIME MENUThe forth item of the menu is the TIME MENUYou can adjust the clock, power on/off time,sleep time etc.Press▼▲to move, press OK button to confirm,and press◀▶to adjust.NOTE:Within 15 minutes there is no signal, the TVwill auto sleep.Once you power off the TV set by AC, the clock timewill be reset.5. OPTION MENUThe fifth item of the MENU is the OPTION MENU.You can adjust the OSD Language, Restore FactoryDefault, Blue Screen or HDMI CEC.NOTE:Restore factory default will clear all the programsand reset all the settings to default value.6. USB FUNCTIONYou must enter the Source menu first,then choice theUSB and press OK button,the USB menu will appear.Please make sure that the USB device have plugged inthe slot. There are four type media item can be selected,such as photo, music, movie and text. Select the typemedia item by pressing◀▶, press OK button to enterthe disk selection menu.In the movie mode, when you use FB, FF function, Theaudio may be pause in several seconds to synchronizethe audio signal and video signal.In text mode, press to make page up and page down.NOTE:When the USB device isn't supported, it may be that thepower of the USB device isn't enough.Sound ModeBalanceAuto VolumeSurround SoundMENU Back Move OK OKMovie SportsMusicStandardCHANNELPICTURESOUNDTIMEOPTIONUserClockOKOff TimeOn TimeSleep TimerAuto SleepCHANNELPICTURESOUNDTIMEOPTIONMENU Back Move OK OKOKInput SourceTVYPBPRPCVIDEOUSBPHOTO MUSIC TEXT MOVIEHaier Innovation LifeUSB2.0 BackEXIT Move SelectOKHDMI1HDMI24).The "Just Scan display mode" in Aspect Rationcan only use in HDMI and YPBPR out put.OSD LanguageRestore Factory DefaultBlue ScreenHDMI CECMENU Back Move OK OKCHANNELPICTURESOUNDTIMEOPTION- 35 -

/ 54

Questions and answers

Need help?

Ask question about this manual

Frequently asked questions

For troubleshooting a main board failure, refer to section 9-2 of the service manual for detailed steps and checks.

To connect your computer to the Haier LE32B8000 TV, follow these steps: 1. Ensure both the TV and computer are powered off. 2. Connect the VGA and audio cables from the computer to the TV. 3. Connect the power cords for both devices. 4. Power on the TV and switch it to PC mode. 5. Finally, power on the PC.

The Haier LE32B8000 TV supports aerial connections with an IEC(female) input and has an impedance of 75 unbalanced.

You can connect a DVD player to the Haier LE32B8000 TV using either the AV IN terminals or the HDMI ports. For AV connections, use the yellow (video), red (audio R), and white (audio L) cables. For HDMI connections, simply plug one end of an HDMI cable into the DVD player and the other end into the HDMI port on the TV.

To use an AC power source, insert the provided AC polarized line cord into a standard polarized AC outlet. Ensure you use only the attached power cord for this purpose.

If your TV is not turning on, try unplugging it from the AC outlet and then plugging it back in. This should return the unit to normal operation.

The 'ADC setup' option allows you to set the ADC value for YUV and VGA signals. It can also be auto-set using a 100% color bar for YUV and a Checkerboard signal for VGA.

If adjusting the color settings does not resolve the issue, try updating the TV's software and rebooting the device. If the problem persists, you may need to change the mainboard.
